Remove/Install Panoramic Sliding Sunroof Control Module - AR77.21-P-0002LWE
Model 213
with code 413 (Panoramic sliding sunroof/glass roof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup for panoramic sliding roof control module (A98) | When replacing panoramic sliding roof control module (A98). | |
| AD00.00-P-2000-04B | |||
| 2.1 | Detach headliner from roof and lay down in vehicle interior | Model 213.0/1 with code 413 (Panoramic sliding sunroof/glass roof) |
AR68.30-P-4300LWE |
| 2.2 | Remove headliner | Model 213.2 with code 413 (Panoramic sliding sunroof/glass roof) |
AR68.30-P-4300LWS |

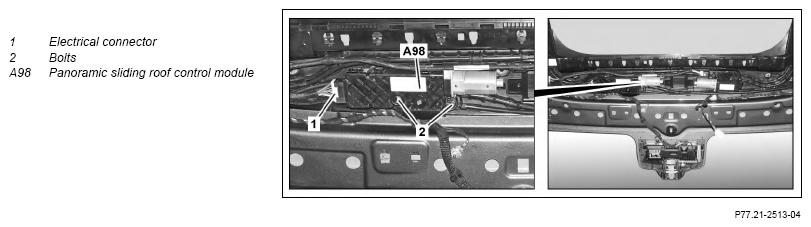

| 3 | Disconnect electrical connector (1) | ||
| 4 | Unscrew bolts (2) and remove panoramic sliding roof control module (A98) | ||
| 5 | Install in the reverse order | ||
| Normalizing | |||
| 6 | Normalize panoramic sliding roof with diagnostic system and perform teach-in run for automatic reversing function | ||
| AD00.00-P-2000-04B |
