Remove/Install Panoramic Roof Wind Deflector - AR77.21-P-0100LWE
Model 213
with code 413 (Automatic panoramic sliding sunroof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Completely open panorama sliding roof | ||

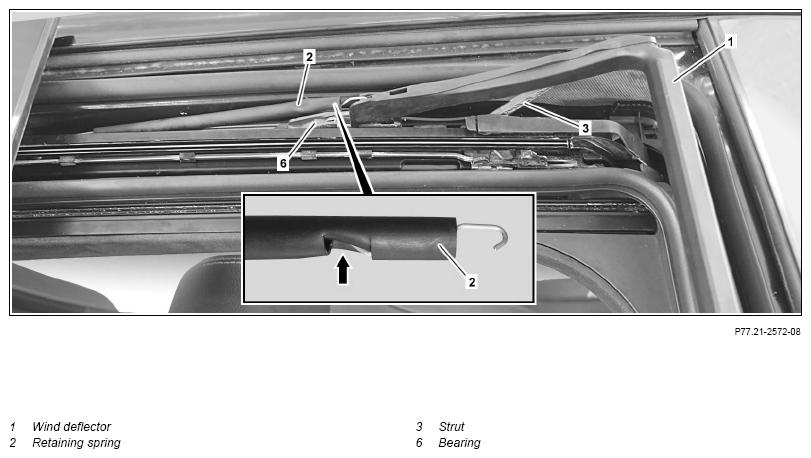

| 2 | Detach left and right retaining springs (2) at wind deflector (1) and at panoramic sliding sunroof frame | ||

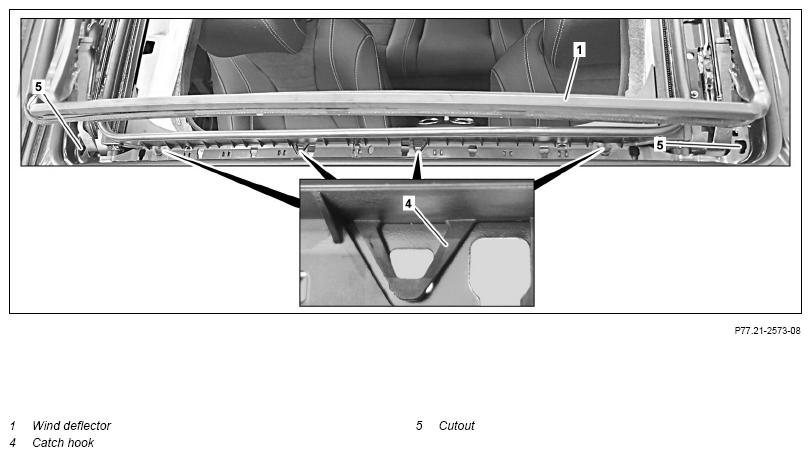

| 3 | Unclip wind deflector (1) at catch hooks (4) and at cutouts (5) from panoramic sliding sunroof frame using a suitable screwdriver | Carefully clip in wind deflector (1). Otherwise the catch hooks (4) can break. |
|
| 4 | Position wind deflector (1) so that it is vertical, move out of left and right bearing (6) and remove | ||
| Check | |||
| 5 | Check bearings (6) for damage | If complaint present ↓ Replace damaged bearing(s) (6). |
AR77.21-P-0102LWE |
| 6 | Install in the reverse order | ||
| 7 | Normalize panoramic sliding roof with diagnostic system and perform teach-in run for automatic reversing function | ||
