Remove/Install Front Roof Frame - Ar65.20-P-1006LWE
Model 213.0/1/2
Shown on model 213.0
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system | AH00.00-Z-0300-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| General information on body repair | AH60.00-N-0001-01A | ||
| Pretreatment of bonding surfaces | AH60.00-P-0008-01SX | ||
| General information on MB materials | AH98.00-P-9409-03A | ||
| Remove | |||
| 1 | Remove detachable parts in area to be repaired | ||
| 2 | Cover all detachable parts remaining on vehicle with spark protection blankets | ||
| 3 | Remove center roof paneling | Model 213.0/1/2 Model 213.0/1 except code 413 (Panoramic sliding sunroof/glass roof) |
AR65.10-P-1000LWE |

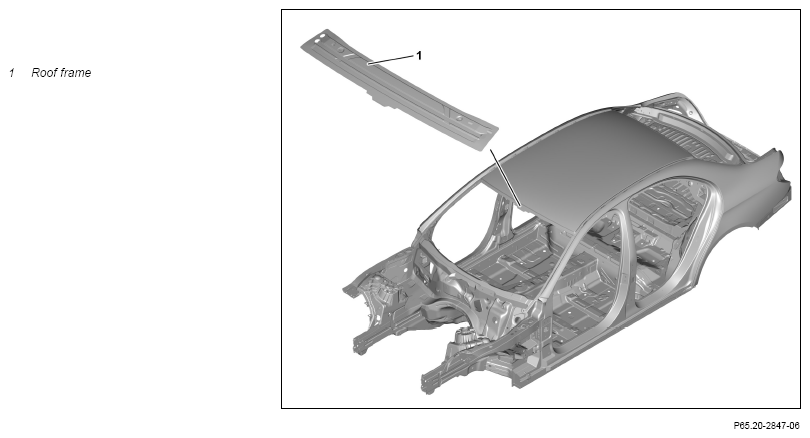

| 4 | Remove roof frame (1) | AR65.20-P-1006-02LWE | |
| 000 588 00 84 00 Heat gun | Round wire brush Spot weld milling machine Wet/dry vacuum cleaner |
WS54.00-P-0049B | |
| Primer stick | *BR00.45-Z-1012-07A | ||
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| 5 | Prepare roof frame (1) | Round wire brush |
AR65.20-P-1006-04LWE |
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| Install | |||
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. |
AS00.00-Z-0007-01A | |
| Measures for preventing damage to components when performing electric welding and soldering work | AH60.00-P-0001-02A | ||
| General information on riveting | AH60.00-P-0003-01N | ||
| 6 | Install roof frame (1) | AR65.20-P-1006-05LWE | |
| 000 588 02 84 00 Welder | WS60.00-P-0022K | ||
| 000 588 01 84 00 Welder | Round wire brush Manual temporary fastener Blind rivet gun (minimum pull-off force 19 kN) Wet/dry vacuum cleaner |
WS60.00-P-0021K | |
| Blind rivet with countersunk head 6.4 x 15.5 (clamping range 3 mm to 5 mm, draw-off strength min. 15.5 kN) |
*BR00.45-Z-1044-13A | ||
| Parts kit for 2-component adhesive for body | *BR00.45-Z-1162-02A | ||
| Fig 1 | |||
| 7 | Clean welds and sheet metal flanges | ||
| 8 | Install center roof paneling | Model 213.0/1/2 Model 213.0/1 except code 413 (Panoramic sliding sunroof/glass roof) |
AR65.10-P-1000LWE |
| 9 | Remove spark protection blankets | ||
| 10 | Clean repair area | Wet/dry vacuum cleaner |
|
| 11 | Prime repair area using primer filler Notes on paintwork repairs | AH98.00-P-9408-02A | |
| 12 | Seal seam following repairs | AR97.10-P-4000LWE | |
| 13 | Paint repair areas and adjacent surfaces Notes on paintwork repairs | AH98.00-P-9408-02A | |
| 14 | Add cavity preserving agent | AR97.20-P-1500LWE | |
| 15 | Install all detachable body components in area to be repaired |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
| BR00.45-Z-1012-07A | Primer stick | A 000 986 27 50 |
| BR00.45-Z-1044-13A | Blind rivet with countersunk head 6.4X15.5 (clamping range 3 mm to 5 mm, draw-off strength min. 15.5 kN) | A 000 991 83 32 |
| BR00.45-Z-1162-02A | Parts kit for 2-component adhesive for body | A 012 989 17 71 |
