Cavity Preservation Following Repair Work - Ar97.20-P-1500LWE
Model 213
Variants of cavity preservation

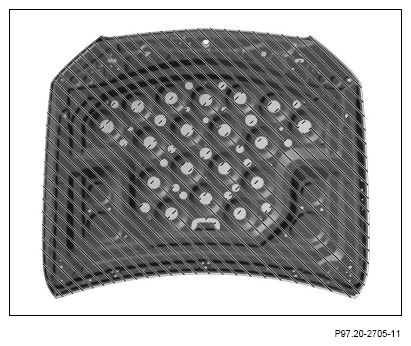

Engine hood
Trunk lid, model 213.0/1

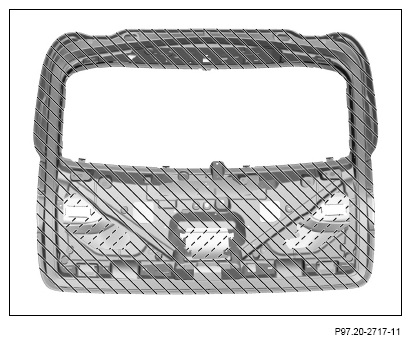

Liftgate, MODEL 213.2

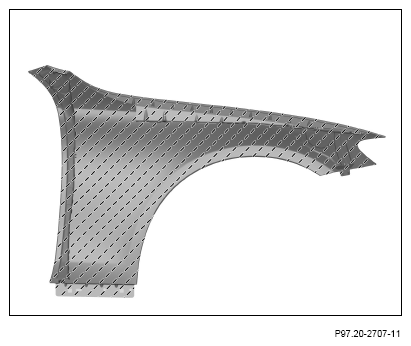

Front fender

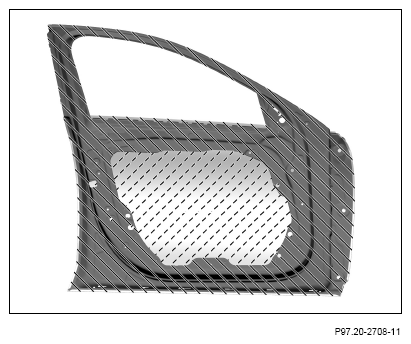

Front door

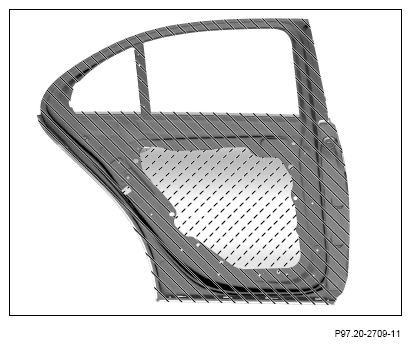

Rear door, shown on MODEL 213.0

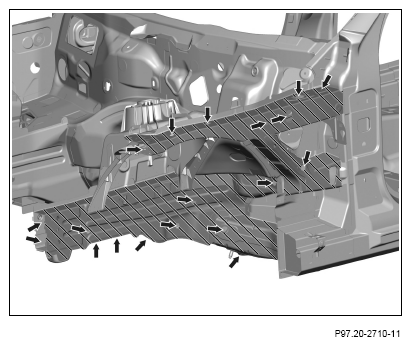

Front longitudinal member

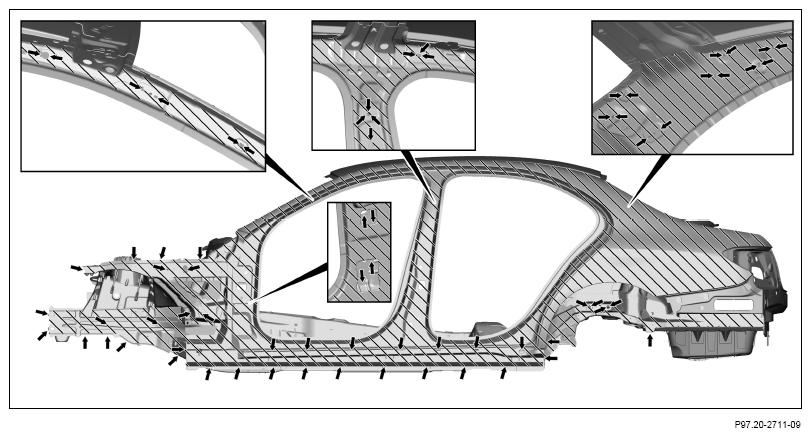

Upper front longitudinal member, A-pillar, B-pillar, C-pillar, side wall paneling and bottom side longitudinal member, shown on MODEL 213.0

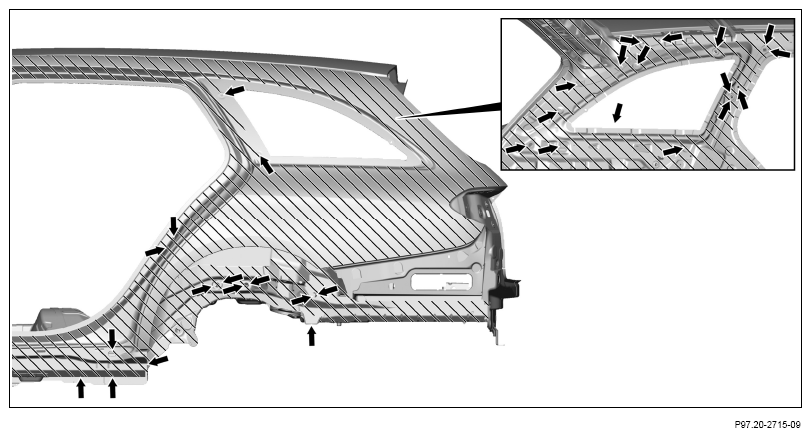

C-pillar, D-pillar, side wall paneling and bottom side longitudinal member, model 213.2

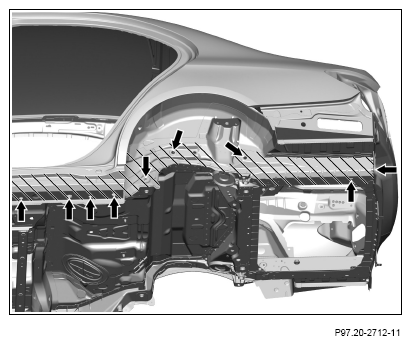

Rear longitudinal member, shown on model 213.0

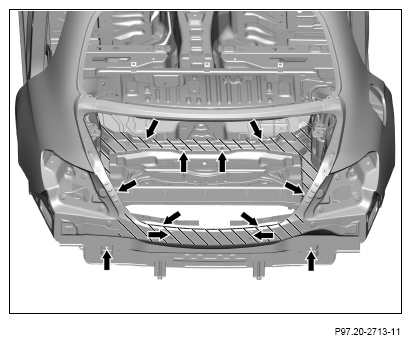

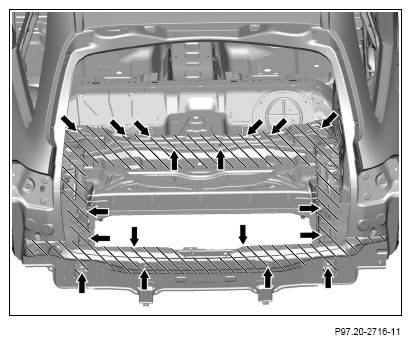

Rear area, model 213.0/1
Rear area, model 213.2

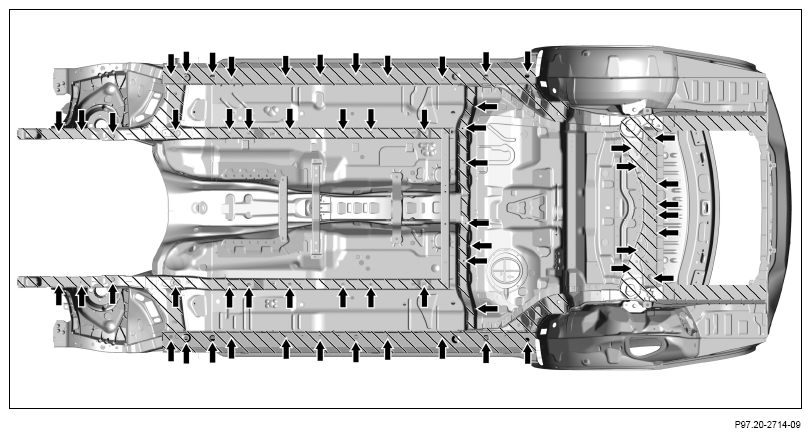

Underfloor, shown on model 213.0
| Picture no., etc. | Work notes | ||
| Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when working with anticorrosion agents | Never spray corrosion protection on flames or hot, glowing objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection. | AS97.00-Z-0001-01A | |
| Topical note | Notes on cavity preservation | Topical note | AH97.20-P-0001-01B |
| A | Cavity preservation in folding areas and hollow cavities | Cavity preservation (free of solvents), 1 liter |
*BR00.45-Z-1003-05A |
| B | Cavity preservation for inner surfaces and gaps | Cavity preservation (free of solvents), 1 liter |
*BR00.45-Z-1003-05A |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-05A | Cavity preservation (free of solvents), 1 liter | A 000 986 72 70 10 |
