Remove/install radiator - AR20.20-P-3865ELA
ENGINE 276.8 in MODEL 207
| Remove/install | |||
| 1 | Remove fan unit | AR20.40-P-5050ELA | |
| 2 | Drain coolant at radiator | AR20.00-P-1142A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| 3 | Detach coolant hose (2) on cooler (3) | ||
| 4 | Detach coolant hoses (1) on cooler (3) | AR09.41-P-1311-01AL | |
| 5 | Empty air conditioning system, evacuate | AR83.30-P-1760CW | |
| 6 | Detacb refrigerant line (4) at condenser and close off openings with a stop plug | *BA83.30-P-1022-01A | |

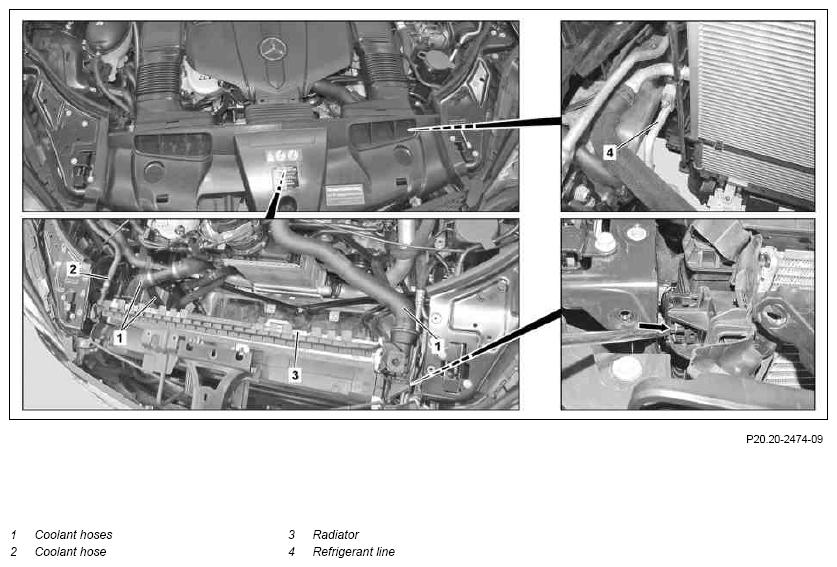

| Fig 2 | |||
| 7 | Unclip cooler (3) from brackets (arrow) with a suitable tool and lift out upwards | ||
| 8 | Install in the reverse order | ||
| 9 | Check cooling system for leaktightness | AR20.00-P-1010ELA | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Perform engine test run and check coolant system around radiator (3) for leaks |
AIR CONDITIONING
| Number | Designation | MODEL 207 | |
|---|---|---|---|
| BA83.30-P-1022-01A | Screw/bolt, line to condenser | Nm | 8 |
