Remove/install fan unit - AR20.40-P-5050ELA
ENGINE 276.8 in MODEL 207
| Remove/install | |||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| 1 | Remove engine cover (7) | ||
| 2 | Remove engine air intake ducts (1) | ||
| 3 | Unclip cold air intake (2) and remove | ||

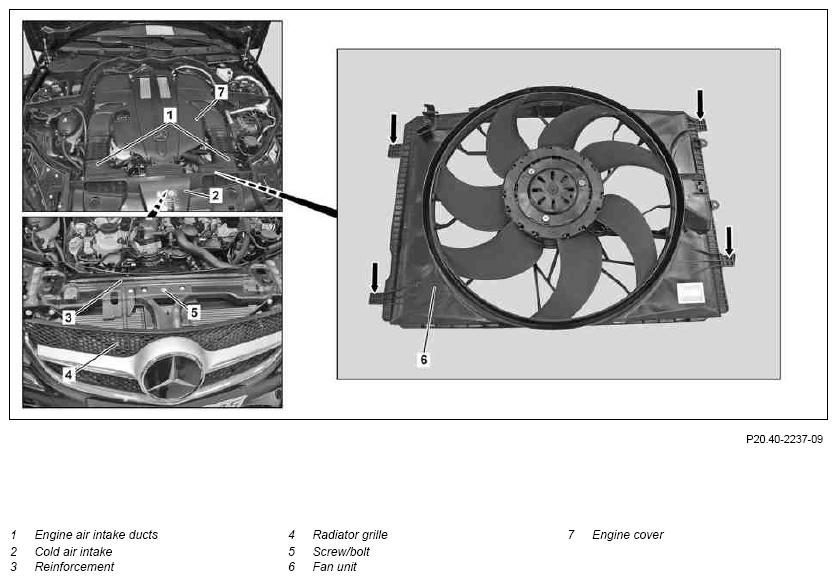

| 4 | Disconnect electrical connection on fan unit (6) and unclip electrical line on fan unit (6) | ||
| 5 | Remove screw/bolt (5), unclip radiator grille (4) and push somewhat to the front | ||
| 6 | Remove reinforcement (3) | AR62.30-P-1570EW | |
| 7 | Remove front section of lower engine compartment paneling | AR61.20-P-1105EW | |
| 8 | Unclip fan unit (6) from brackets (arrows) and remove upwards | ||
| 9 | Install in the reverse order |
