Inspect cooling system for leaks - AR20.00-P-1010ELA

ENGINE 276.8 in MODEL 207

MODIFICATION NOTES

26.9.14

Mixture ratio coolant

*BF20.00-P-1001-04A

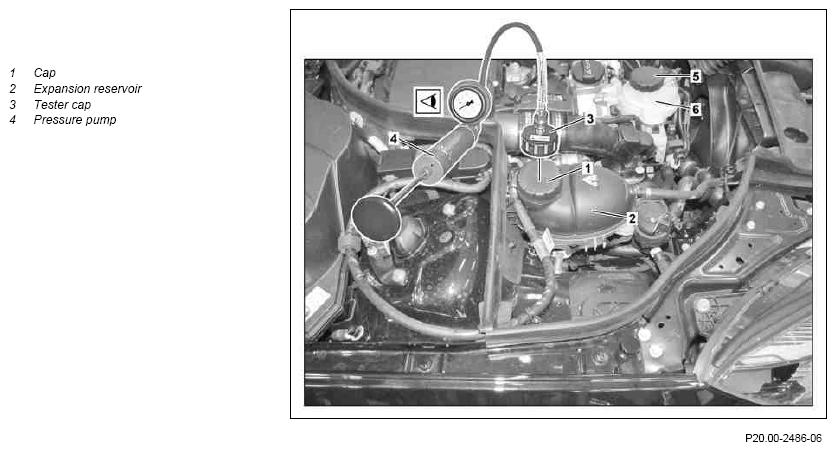

Fig 1: Inspecting Cooling System For Leaks

Courtesy of MERCEDES-BENZ USA

	Remove
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Notes on coolant		AH20.00-N-2080-01A
1	Switch on ignition
2	Adjust heater to maximum heat output
3	Unscrew cap (1) slowly at expansion reservoir (2) and relieve overpressure
4	Check coolant level and antifreeze content coolant	If the antifreeze content of coolant is too low, either antifreeze protection must be added or the coolant must be replaced.
		Coolant mixing ratio	*BF20.00-P-1001-04A
5	Screw on tester cap (3) at the expansion reservoir (2)	Test cap	Figure
6	Connect pressure pump (4) at test cap (3)	Pressure pump	Figure
7	Apply test pressure to cooling system	The specified test pressure must not be exceeded. Damage will occur to the cooling system otherwise.
		Test pressure for pressure-testing cooling system	*BE20.30-P-1005-01A
	Check
8	Perform visual inspection on coolant carrying components		AR09.41-P-1311-01AL
		Check condition and seating of the Henn coupling; replace catch springs if necessary. This avoids coolant loss. Check condition and coolant loss for all coolant carrying components and connections. The coolant carrying components should be checked for inner leaktightness if there is no external coolant loss. There is the possibility, for example, that coolant can find its way over a defective cylinder head gasket into the combustion chamber or over a defective water heat exchanger into the oil circuits.
	Install
9	Remove overpressure over the valve at the pressure pump (4) and remove pressure pump (4)	Pressure pump	Figure
10	Unscrew tester cap (3) at the expansion reservoir (2)	Test cap	Figure
11	Switch off ignition
12	Check coolant level and antifreeze content coolant	If necessary
		Coolant mixing ratio	*BF20.00-P-1001-04A
13	Screw cap (1) onto expansion reservoir (2)

CAP FOR RADIATOR OR EXPANSION RESERVOIR

Number	Designation			Cap	2-stage cap
BE20.30-P-1005-01A	Test pressure for pressure-testing cooling system	Overpressure	bar	1, 4	1, 4

COOLANT MIXING RATIO

Number	Designation			ENGINE ALL
BF20.00-P-1001-04A	Coolant mixing ratio	Antifreeze/water	until -37°C	50/50
		Antifreeze/water	until -45°C	55/45
		Specification		Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1

Fig 2: Identifying Pressure Pump (124 589 24 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Test Cap (210 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
