Retrofit media interface - AN82.60-P-0016EC

MODEL 207.3##/4## 1# with CODE 510 (Audio 20 with CD changer) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 207.3##/4## 1# with CODE 511 (Audio 50 APS with DVD changer) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 207.3##/4## 1# with CODE 512 (COMAND APS with DVD changer) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 207.3##/4## 1# with CODE 525 (MB Audio 50 APS radio) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 207.3##/4## 1# with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 494 (US version) without CODE 498 (Japanese version)

Shown on MODEL 207 up to 31.5.11 up to model year 2012

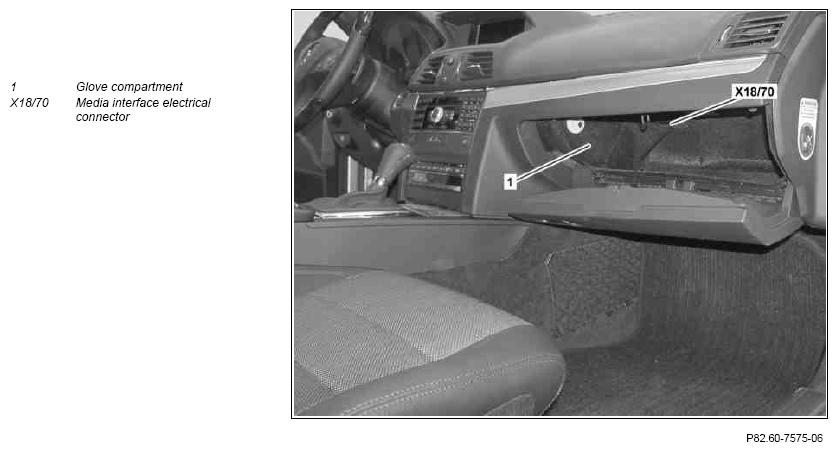

Fig 1: Identifying Glove Compartment And Media Interface Electrical Connector - Shown On Model 207

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Glove Compartment And Media Interface Electrical Connector - Shown On Model 207.4

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 207.4 up to 31.5.13 up to model year 2014

	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove glove box (1)
			AR68.10-P-1400EC
2	Remove center console	MODEL 207.3/4 as of 01.06.11 as of model year 2012
			AR68.20-P-2000CW
3	Remove audio component
			AR82.60-P-7502EW
4	Remove right-hand side entrance strip
5	Remove A-pillar paneling at bottom right
6	Remove right front floor covering
7	Remove right side paneling at bottom in rear
			AR68.30-P-4780ED

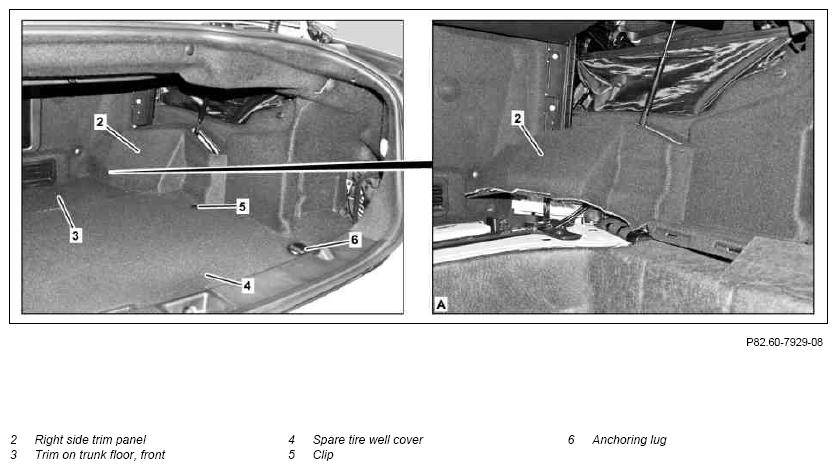

8	Remove spare wheel well cover (4), front trunk floor paneling (3), clip (5) and anchoring lug (6) and detach right side paneling (2) in trunk, as shown in picture A, in rear lower area	MODEL 207.4
			AR68.30-P-4800EC
9	Remove rear SAM control unit with fuse and relay module and place to one side with electrical lines still connected
		MODEL 207.4	AR54.21-P-1258EA
		Model 207.3 Check in the EPC whether the installed rear SAM control unit with fuse and relay module, as specified in the vehicle equipment list, can be used for retrofitting the media interface. If necessary, the rear SAM control unit with fuse and relay module is to be removed and replaced with one compatible with the media interface.	AR54.21-P-1258EC
	Install
10	Prepare media interface power supply wiring harness	MODEL 207.3/4 up to 31.05.12 up to model year 2013	AN82.60-P-0016-04EW
		Wiring harness repair kit, basic	Fig 4
		New passenger car wiring harness repair kit	Fig 3
11	Install power supply wiring harness	MODEL 207.3 up to 31.05.12 up to model year 2013	AN82.60-P-0016-03EC
		MODEL 207.4 up to 31.05.12 up to model year 2013	AN82.60-P-0016-03ECA
		MODEL 207.3/4 as of 01.06.12 as of model year 2013	AN82.60-P-0016-03ECM
		New passenger car wiring harness repair kit	Fig 3
		Wiring harness repair kit, basic	Fig 4
12	Install optical fiber for Media Oriented System Transport (MOST)	MODEL 207.3/4 up to 31.05.12 up to model year 2013 without CODE 537 (Digital radio) and without CODE 810 (Sound system) and without CODE 863 (Digital/analog TV tuner)	AN82.61-P-0001-06EC
		MODEL 207.3/4 up to 31.05.12 up to model year 2013 with CODE 537 (Digital radio) or CODE 810 (Sound system) or CODE 863 (Digital/analog TV tuner)	AN82.61-P-0001-06ECA
		MODEL 207.3/4 as of 01.06.12 as of model year 2013	AN82.61-P-0001-06ECM
13	Retrofit media interface control unit	MODEL 207.3/4 up to 31.05.12 up to model year 2013	AN82.60-P-0016-01EC
		MODEL 207.3/4 as of 01.06.12 as of model year 2013	AN82.60-P-0016-01ECM
		Body Adhesive Spray, LIQUI MOLY LIQUIMATE 8080	*BR00.45-Z-1136-02A
14.1	Install wiring harness with Media Interface electrical connector (X18/70) in glove box (1)	MODEL 207.3/4 up to 31.05.11 up to model year 2012
		MODEL 207.3/4 with CODE 510 (Audio 20 with CD changer) or CODE 511 (Audio 50 APS with DVD changer) or CODE 525 (MB Audio 50 APS radio)	AN82.60-P-0016-02EC
		MODEL 207.3/4 with CODE 512 (COMAND APS with DVD changer) or CODE 527 (COMAND APS with single DVD drive (with navigation))	AN82.60-P-0016-02ECA
14.2	Install wiring harness with Media Interface electrical connector (X18/70) in center console	MODEL 207.3/4 as of 01.06.11 as of model year 2012
			AN82.60-P-0016-02ECM
15	Install remaining parts
16	Add special equipment via the vehicle documentation (VeDoc) to the online vehicle data card	Add:  CODE 518 (Media Interface)
17	Document retrofitted equipment in VeDoc	Attach note "Media Interface retrofitted as per AN82.60-P-0016EC " under field organization texts to design group 54, design group 68 and design group 82.
18	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
19	Perform variant coding with XENTRY using the software calibration number (SCN)	Following control units must be coded with XENTRY using SCN: "Audio 20" or "Audio 50" or "COMAND"
20	Disconnect Star Diagnosis
			AD00.00-P-2000-04A
	Check
21	Perform function test	See Media Interface operator's manual.

Fig 3: Identifying Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA
