Remove/install side paneling in rear - AR68.30-P-4780ED

MODEL 204.3, 207.3/4 Lower side paneling

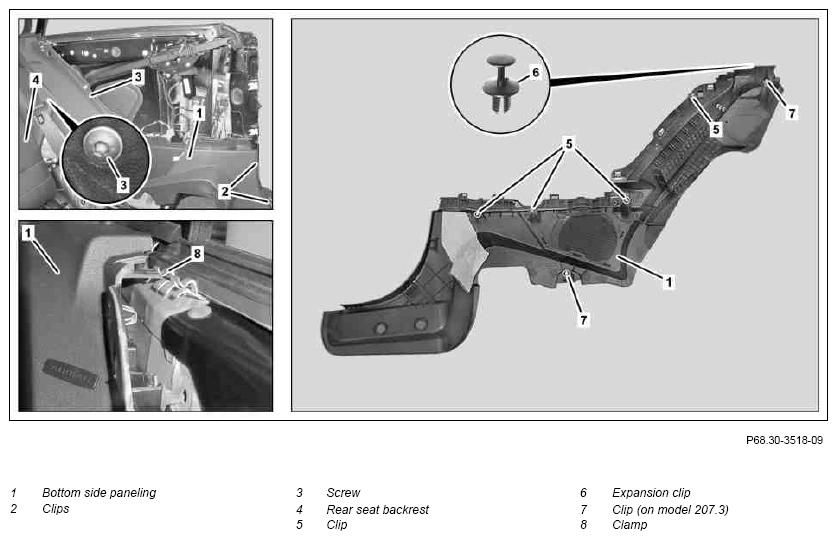

Fig 1: Identifying Rear Side Paneling Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle on model 207.3

	Remove/install
1	Remove side paneling in rear at top		AR68.30-P-4780EC
2	Remove rear seat cushion	Model 204.3, 207	AR91.12-P-1020EC
3.1	Remove side cushion on rear seat backrest	Model 204.3, 207.3	AR91.12-P-1710EC
3.2	Remove rear seat backrest	Model 207.4	AR91.12-P-1620EA
4	Remove door sill molding	Long wedge	Figure
5	Remove edge guard in area of lower side paneling (1)
6	Unclip lower side paneling (1) from clips (2)	Long wedge	Figure
7	Remove screws/bolts (3)
8.1	Unclip lower side paneling (1) from clips (8)	Model 204.3, 207.3
		Long wedge	Figure
8.2	Remove expansion clip (6)	Model 207.4
9.1	Unclip lower side paneling (1) from clips (5) and remove	Model 207.4 Check clips (5) for damage, replace if necessary.
		Unclipping device	Figure
9.2	Unclip lower side paneling (1) from clips (5, 7) and remove	Model 204.3, 207.3 Pivot rear seat backrest (4) as required to remove lower side paneling (1). Check clips (5, 7) for damage, replace if necessary.
		Unclipping device	Figure
10	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
