Retrofit InCar Hotspot - AZ82.80-P-0002EC

MODEL 207.3## 1# with CODE 386 (Convenience telephony) with CODE 511 (Audio 50 APS with DVD changer) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 207.3## 1# with CODE 386 (Convenience telephony) with CODE 512 (COMAND APS with DVD changer) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 207.3## 1# with CODE 386 (Convenience telephony) with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 207.3 with CODE 386 (Convenience telephony) with CODE 525 (MB Audio 50 APS radio) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version)

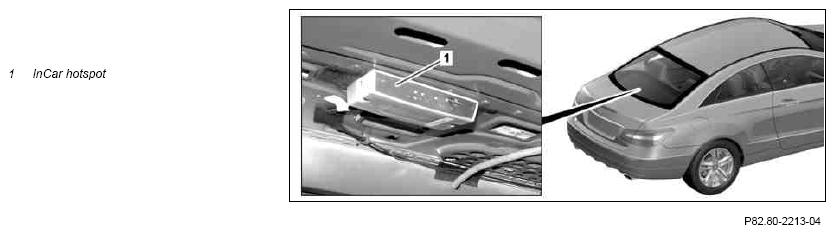

Fig 1: Identifying Incar Hotspot

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit	KEYLESS-GO start/stop button only on vehicles with code (889) KEYLESS-GO.
2	Remove upper side trim in rear passenger compartment
			AR68.30-P-4780EC
3	Release bottom side paneling at rear
			AR68.30-P-4780ED
4	Remove trim from C-pillar
			AR68.30-P-4490EC
5	Remove right paneling in trunk
			AR68.30-P-4600EC
6	Release rear SAM control unit with fuse and relay module
			AR54.21-P-1258EC
		Only release rear SAM control unit with fuse and relay module, do not disconnect electrical connections.
	Install
7	Retrofit InCar Hotspot (1) with holder		AZ82.80-P-0002-02EC
8	Retrofit wiring harness of InCar Hotspot (1)		AZ82.80-P-0002-01EC
		Wiring harness repair kit, basic	Figure
		New passenger car wiring harness repair kit	Figure
9	Install remaining parts
10	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach note "InCar Hotspot retrofitted in accordance with AZ82.80-P-0002EC " under field organization texts to design group 82.
11	Perform function test of InCar Hotspot (1)	See operator's manual for InCar Hotspot (1).
