Remove/install trim at C-pillar - AR68.30-P-4490EC

MODEL 204.3, 207.3

Illustrated on model 207.3

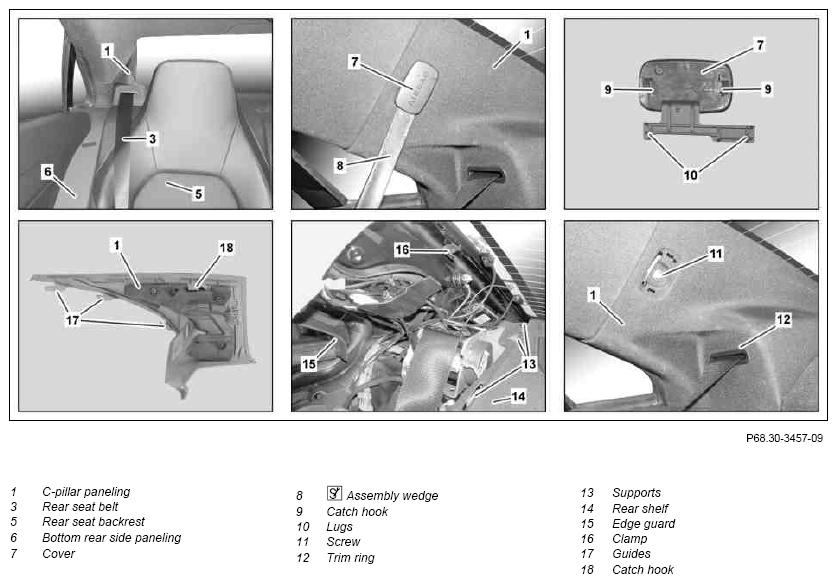

Fig 1: Identifying C-Pillar Trim Remove/Install Components - Illustrated On Model 207.3 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

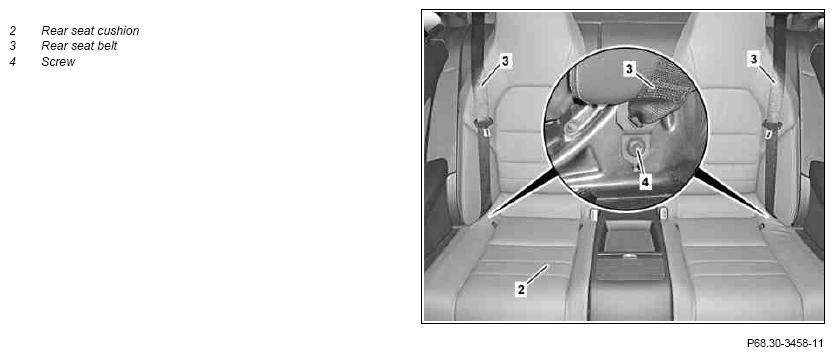

Fig 2: Identifying C-Pillar Trim Remove/Install Components - Illustrated On Model 207.3 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown on model 207.3, right side of vehicle

	Remove/install
1	Remove rear seat cushion (2)	Model 204.3, 207	AR91.12-P-1020EC
2	Unscrew screw (4) from belt end fitting		*BA91.40-P-1006-01P
3	Detach rear bottom side paneling (6) in rear area	Detach rear bottom side paneling (6) only until C-pillar paneling (1) is accessible and can be removed	AR68.30-P-4780ED
4	Release rear seat backrest (5) and fold forward
5	Unclip catch hook (9) from the cover (7) with assembly wedge (8)	Assembly wedge	Figure
6	Lift cover (7), guide out of the C-pillar paneling (1) in the lower area and remove downwards	Insert lugs (10) into the top of the C-pillar paneling (1) first and then position cover (7) on the C-pillar paneling (1).
7	Remove bolt (11)
8	Unclip catch hook (18) of C-pillar paneling (1) at clamp (16)	Check clamp (16) for correct fit in body, align if necessary. Align edge guard (15) to C-pillar paneling (1).
9	Pull out C-pillar paneling (1) forwards on the guides (17) from the rear shelf (14) supports (13)
10	Unclip rosette (12) at the C-pillar paneling (1)	Assembly wedge	Figure
11	Remove rear seat belt (3) from C-pillar paneling (1) and remove C-pillar paneling (1)
12	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
