Remove paneling in trunk - AR68.30-P-4600EC
MODEL 207.3

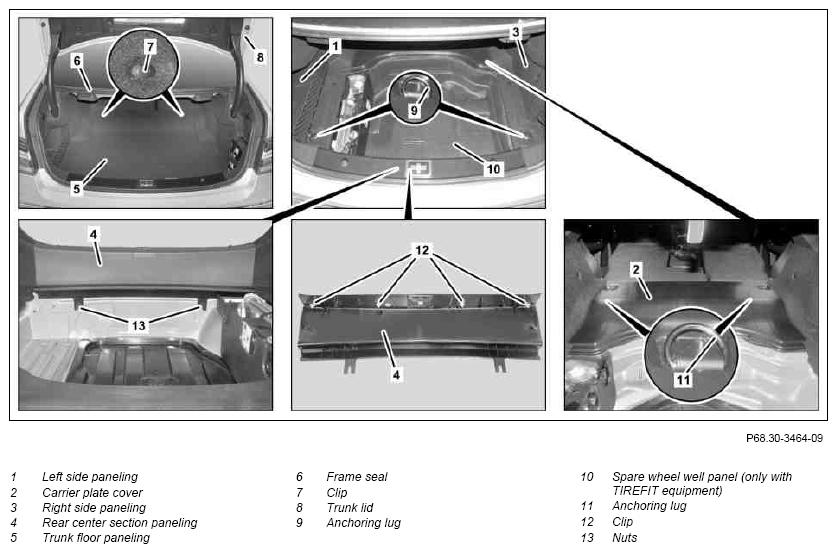

Shown on vehicle equipped with Tirefit
Shown on vehicle equipped with Tirefit
| Remove/install | |||
| 1.1 | Lift trunk floor paneling (5) and hook into sealing frame (6) on trunk lid (8) | If carrier plate cover (2) is not removed. | |
| 1.2 | Remove clips (7) and remove trunk floor paneling (5) | When removing carrier plate cover (2), left side paneling (1) or right side paneling (3). | |
| Figure | |||
| 2 | Remove spare tire well paneling (10) | Only if equipped with TIREFIT | |
| 3 | Loosen nuts (13) on rear center section paneling (4) | ||
| 4 | Unclip rear center section paneling (4) with assembly wedge from clips (12) and remove upward | ||
| Figure | |||
| 5 | Fold over left and right rear seat backrest | When removing left side paneling (1) and right side paneling (3). | |
| 6 | Remove anchoring lug (11) on left and right from carrier plate cover (2) and remove carrier plate cover (2) | ||
| 7 | Remove anchoring lug (9) from left side paneling (1) and right side paneling (3) | ||
| 8 | Remove expansion clips (17) from left side paneling (1) and right side paneling (3) | Figure | |
| 9 | Pull pin (14) out pocket hook (15) and remove pocket hook (15) from left side paneling (1) and right side paneling (3) | Figure | |
| 10 | Disconnect electrical connector (16) from right trunk lamp (E18/4) | ||
| 11 | Loosen from left side paneling (1) and right side paneling (3) in lower area of wheel wells, pull toward center of trunk and remove. | ||
| 12 | Install in the reverse order |
