Retrofit Command Online - AN82.85-P-0009LWE

Model 213.0 (except 213.064/088/089) as of 12/1/17, 213.2 (except 213.264/288/289) as of 12/1/17

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 421 (9-speed automatic transmission)

with code 448 (Touchpad)

with code 520 (Audio 20 USB)

except code 425 (6-speed manual transmission)

except code 522 (Audio 20 radio)

Model 213.0 (except 213.064/088/089) as of 12/1/17, 213.2 (except 213.264/288/289) as of 12/1/17

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 421 (9-speed automatic transmission)

with code 448 (Touchpad)

with code 522 (Audio 20 radio)

except code 425 (6-speed manual transmission)

except code 520 (Audio 20 USB)

Model 213.0 (except 213.064/088/089) as of 12/1/17, 213.2 (except 213.264/288/289) as of 12/1/17

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 425 (6-speed manual transmission)

with code 520 (Audio 20 USB)

except code 421 (9-speed automatic transmission)

except code 522 (Audio 20 radio)

Model 213.0 (except 213.064/088/089) as of 12/1/17, 213.2 (except 213.264/288/289) as of 12/1/17

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 425 (6-speed manual transmission)

with code 522 (Audio 20 radio)

except code 421 (9-speed automatic transmission)

except code 520 (Audio 20 USB)

Model 213.0 (except 213.064/088/089) as of 6/1/17 up to 11/30/17, 213.2 (except 213.264/288/289) as of 6/1/17 up to 11/30/17

with code 218 (Rear view camera)

with code 235 (Active Parking Assist)

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 421 (9-speed automatic transmission)

with code 448 (Touchpad)

with code 520 (Audio 20 USB)

except code 425 (6-speed manual transmission)

except code 522 (Audio 20 radio)

Model 213.0 (except 213.064/088/089) as of 6/1/17 up to 11/30/17, 213.2 (except 213.264/288/289) as of 6/1/17 up to 11/30/17

with code 218 (Rear view camera)

with code 235 (Active Parking Assist)

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 421 (9-speed automatic transmission)

with code 448 (Touchpad)

with code 522 (Audio 20 radio)

except code 425 (6-speed manual transmission)

except code 520 (Audio 20 USB)

Model 213.0 (except 213.064/088/089) as of 6/1/17 up to 11/30/17, 213.2 (except 213.264/288/289) as of 6/1/17 up to 11/30/17

with code 218 (Rear view camera)

with code 235 (Active Parking Assist)

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 425 (6-speed manual transmission)

with code 520 (Audio 20 USB)

except code 421 (9-speed automatic transmission)

except code 522 (Audio 20 radio)

Model 213.0 (except 213.064/088/089) as of 6/1/17 up to 11/30/17, 213.2 (except 213.264/288/289) as of 6/1/17 up to 11/30/17

with code 218 (Rear view camera)

with code 235 (Active Parking Assist)

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 425 (6-speed manual transmission)

with code 522 (Audio 20 radio)

except code 421 (9-speed automatic transmission)

except code 520 (Audio 20 USB)

Model 213.0 (except 213.064/088/089) as of 6/1/17 up to 11/30/17, 213.2 (except 213.264/288/289) as of 6/1/17 up to 11/30/17

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 421 (9-speed automatic transmission)

with code 448 (Touchpad)

with code 520 (Audio 20 USB)

except code 218 (Rear view camera)

except code 425 (6-speed manual transmission)

except code 522 (Audio 20 radio)

Model 213.0 (except 213.064/088/089) as of 6/1/17 up to 11/30/17, 213.2 (except 213.264/288/289) as of 6/1/17 up to 11/30/17

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 421 (9-speed automatic transmission)

with code 448 (Touchpad)

with code 522 (Audio 20 radio)

except code 218 (Rear view camera)

except code 425 (6-speed manual transmission)

except code 520 (Audio 20 USB)

Model 213.0 (except 213.064/088/089) as of 6/1/17 up to 11/30/17, 213.2 (except 213.264/288/289) as of 6/1/17 up to 11/30/17

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 425 (6-speed manual transmission)

with code 520 (Audio 20 USB)

except code 218 (Rear view camera)

except code 421 (9-speed automatic transmission)

except code 522 (Audio 20 radio)

Model 213.0 (except 213.064/088/089) as of 6/1/17 up to 11/30/17, 213.2 (except 213.264/288/289) as of 6/1/17 up to 11/30/17

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 425 (6-speed manual transmission)

with code 522 (Audio 20 radio)

except code 218 (Rear view camera)

except code 421 (9-speed automatic transmission)

except code 520 (Audio 20 USB)

Model 213.0 (except 213.064/088/089) up to 8/3/16, 213.2 (except 213.264/288/289) up to 8/3/16

with code 218 (Rear view camera)

with code 235 (Active Parking Assist)

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 421 (9-speed automatic transmission)

with code 448 (Touchpad)

with code 520 (Audio 20 USB)

except code 425 (6-speed manual transmission)

except code 522 (Audio 20 radio)

Model 213.0 (except 213.064/088/089) up to 8/3/16, 213.2 (except 213.264/288/289) up to 8/3/16

with code 218 (Rear view camera)

with code 235 (Active Parking Assist)

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 421 (9-speed automatic transmission)

with code 448 (Touchpad)

with code 522 (Audio 20 radio)

except code 425 (6-speed manual transmission)

except code 520 (Audio 20 USB)

Model 213.0 (except 213.064/088/089) up to 8/3/16, 213.2 (except 213.264/288/289) up to 8/3/16

with code 218 (Rear view camera)

with code 235 (Active Parking Assist)

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 425 (6-speed manual transmission)

with code 520 (Audio 20 USB)

except code 421 (9-speed automatic transmission)

except code 522 (Audio 20 radio)

Model 213.0 (except 213.064/088/089) up to 8/3/16, 213.2 (except 213.264/288/289) up to 8/3/16

with code 218 (Rear view camera)

with code 235 (Active Parking Assist)

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 425 (6-speed manual transmission)

with code 522 (Audio 20 radio)

except code 421 (9-speed automatic transmission)

except code 520 (Audio 20 USB)

Model 213.0 (except 213.064/088/089) up to 8/3/16, 213.2 (except 213.264/288/289) up to 8/3/16

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 421 (9-speed automatic transmission)

with code 448 (Touchpad)

with code 520 (Audio 20 USB)

except code 218 (Rear view camera)

except code 425 (6-speed manual transmission)

except code 522 (Audio 20 radio)

Model 213.0 (except 213.064/088/089) up to 8/3/16, 213.2 (except 213.264/288/289) up to 8/3/16

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 421 (9-speed automatic transmission)

with code 448 (Touchpad)

with code 522 (Audio 20 radio)

except code 218 (Rear view camera)

except code 425 (6-speed manual transmission)

except code 520 (Audio 20 USB)

Model 213.0 (except 213.064/088/089) up to 8/3/16, 213.2 (except 213.264/288/289) up to 8/3/16

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 425 (6-speed manual transmission)

with code 520 (Audio 20 USB)

except code 218 (Rear view camera)

except code 421 (9-speed automatic transmission)

except code 522 (Audio 20 radio)

Model 213.0 (except 213.064/088/089) up to 8/3/16, 213.2 (except 213.264/288/289) up to 8/3/16

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 425 (6-speed manual transmission)

with code 522 (Audio 20 radio)

except code 218 (Rear view camera)

except code 421 (9-speed automatic transmission)

except code 520 (Audio 20 USB)

G13747658Courtesy of MERCEDES-BENZ USA
G13747659Courtesy of MERCEDES-BENZ USA
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on avoiding damage to optical fibers during repair work   AH82.60-P-0001-05AK
REMOVING Remove
1 Remove instrument cluster
REFER TO SELF-DIAGNOSTIC SYSTEMS   IMPORTANT The frame and the 8 4" audio/COMMAND display (A40/8) are no longer required. AR54.30-P-6015LWE
2 Remove center console
REFER TO TESTING & REPAIR   Model 213.0/2 with transmission 716 AR68.20-P-2000LWA
REFER TO TESTING & REPAIR   Model 213.0/2 with transmission 725 AR68.20-P-2000LWE
3 Remove glove compartment
REFER TO TESTING & REPAIR     AR68.10-P-1402LWE

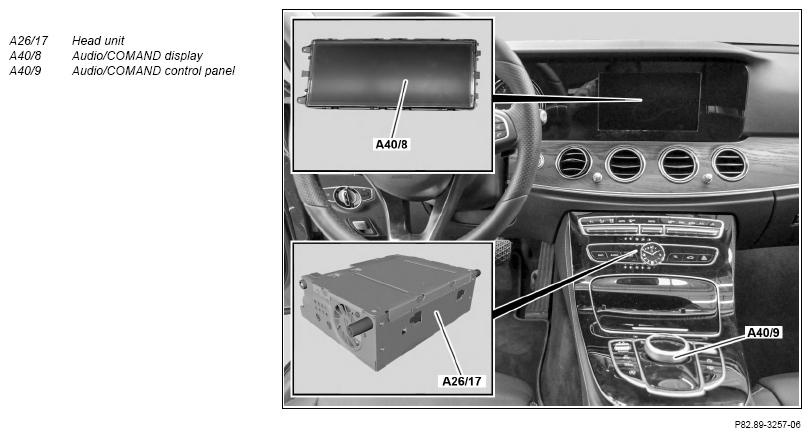

4 Remove head unit (A26/17) Audio 20 USB or Audio 20 radio
REFER TO TESTING & REPAIR   IMPORTANT The head unit (A26/17) is no longer required. AR82.85-P-1101LWE
5 Remove HERMES control unit
REFER TO TESTING & REPAIR   Model 213.0/2 with code 360 (HERMES UMTS)
IMPORTANT Model 213.0/2 as of 01.06.17
The HERMES control unit is no longer required.		 AR82.95-P-0019LWE
6 Remove passenger seat
REFER TO TESTING & REPAIR     AR91.10-P-1000LW
7 Remove passenger-side floor covering
REFER TO TESTING & REPAIR     AR68.20-P-2065LWE
8 Remove Bluetooth® antenna
REFER TO TESTING & REPAIR   IMPORTANT The Bluetooth® antenna is no longer required.
IMPORTANT Model 213.0/2 with code 294 (Knee airbag)
Do not remove driver knee airbag, the electric line for the Bluetooth® antenna is routed through the cutout in the display module.		 AR82.62-P-8980LWE

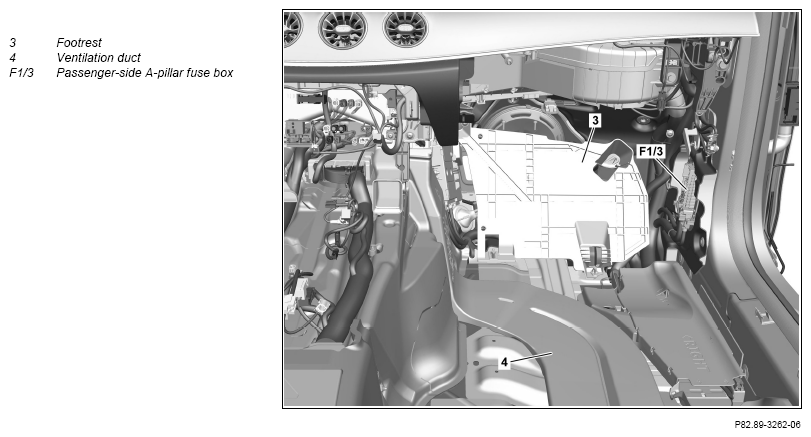

9 Remove ventilation duct (4)
10 Remove footrest (3)
11 Unfasten front passenger side A-pillar fuse box (F1/3)
REFER TO TESTING & REPAIR   IMPORTANT Do not disconnect electrical leads. AR54.15-P-0004LWE
12 Remove multimedia connection unit
REFER TO TESTING & REPAIR   IMPORTANT The multimedia connection unit is no longer required. AR82.60-P-1032LW
13 Disconnect electrical connectors from tuner unit
REFER TO TESTING & REPAIR   Model 213.0/2 with code 522 (Audio 20 radio) with code 536 (SIRIUS satellite radio), model 213.0/2 with code 522 (Audio 20 radio) with code 537 (Digital radio (DAB)) AR82.60-P-2002LWE
14 Remove coupling for fiber-optic cable from detached electrical connector socket of tuner unit Model 213.0/2 with code 522 (Audio 20 radio) with code 536 (SIRIUS satellite radio) with code 810 (Sound system), model 213.0/2 with code 522 (Audio 20 radio) with code 537 (Digital radio (DAB)) with code 810 (Sound system)
INSTALLATION IMPORTANT : The fiber-optic cable coupling is replaced by the fiber-optic cable adapter.
INSTALLING Install
15 Wrap felt tape around detached electrical connectors of tuner unit Model 213.0/2 with code 522 (Audio 20 radio) with code 536 (SIRIUS satellite radio), model 213.0/2 with code 522 (Audio 20 radio) with code 536 (SIRIUS satellite radio)
16 Strap down electrical connectors of tuner unit at suitable point Model 213.0/2 with code 522 (Audio 20 radio) with code 536 (SIRIUS satellite radio), model 213.0/2 with code 522 (Audio 20 radio) with code 537 (Digital radio (DAB))
NOTES
Ensure they are properly strapped down and that no chafing can occur.
Otherwise, the wiring harness may be damaged and/or clattering noises may be produced.
17 Retrofit fiber-optic cable adapter Model 213.0/2 with code 522 (Audio 20 radio) with code 536 (SIRIUS satellite radio) with code 810 (Sound system), model 213.0/2 with code 522 (Audio 20 radio) with code 537 (Digital radio (DAB)) with code 810 (Sound system)
NOTES
Ensure they are properly routed and that no chafing can occur.
Otherwise, the wiring harness may be damaged and system failures may occur.		 AN82.85-P-0009-08LWO
18 Modify audio/COMMAND display (A40/8)   AN82.85-P-0009-04LWO
19 Transfer GPS antenna electrical line   AN82.85-P-0007-07LWE
20 Modify plug housing for reversing camera electrical wiring harness Model 213.0/2 with code 218 (Reversing camera) AN82.85-P-0009-07LWE
21 Modify electric line for audio/COMMAND display   AN82.85-P-0009-05LWO
22 Retrofit electrical wiring harness for instrument cluster IMPORTANT Fix electrical wiring harness for instrument cluster in place only after routing all retrofit wiring harnesses. AN82.85-P-0009-06LWO
23 Route electric line for Bluetooth® antenna over the device installation frame of the Audio/COMMAND display (A40/8) and install the Bluetooth® antenna
REFER TO TESTING & REPAIR   IMPORTANT Fix electrical wiring harness for Bluetooth® antenna in place only after routing all retrofit wiring harnesses. AR82.62-P-8980LWE
24 Install WiFi antenna   AN82.85-P-0005-05LWE
25 Retrofit electric wiring harness for SD card navigation IMPORTANT Fix electrical wiring harness for SD card navigation in place only after routing all retrofit wiring harnesses. AN82.85-P-0007-06LWO
26 Install footrest (3)
27 Install ventilation duct (4)
28 Insert a fuse with a fuse rating of 7.5 A into slot "313" of the fuse box on the A-pillar on the front passenger side (F1/3)
REFER TO BASIC KNOWLEDGE Assignment of passenger-side A-pillar fuse box Model 213.0/2 up to model year 2021 GF54.15-P-1256-48FG
REFER TO SYSTEM WIRING DIAGRAMS Wiring diagram of passenger-side A-pillar fuse box Model 213.0/2 as of model year 2021
IMPORTANT Slot "313" of the passenger-side A-pillar fuse box (F1/3) is labeled.		 PE54.15-P-2519DDA
29 Install front floor covering on front passenger side
REFER TO TESTING & REPAIR     AR68.20-P-2065LWE
30 Install front passenger seat
REFER TO TESTING & REPAIR     AR91.10-P-1000LW
31 Install HERMES control unit
REFER TO TESTING & REPAIR   Model 213.0/2 with code 360 (HERMES UMTS)
IMPORTANT Model 213.0/2 as of 01.06.17 Use new HERMES control unit.		 AR82.95-P-0019LWE
32 Install new head unit (A26/17)
REFER TO TESTING & REPAIR     AR82.85-P-1101LWE
33 Install remaining parts
  Update Vehicle Documentation (VeDoc)
34.1 Delete special equipment in on-line vehicle data card Model 213.0/2 with code 520 (Audio 20 USB)
IMPORTANTCODE 520 (Audio 20 USB)
34.2 Delete special equipment in on-line vehicle data card Model 213.0/2 with code 522 (Audio 20 radio)
IMPORTANTCode 522 (Audio 20 radio)
35 Delete special equipment in on-line vehicle data card IMPORTANT Model 213.0/2 with code 355 (Preinstallation for navigation retrofit)
Code 355 (Preinstallation for navigation retrofit)
IMPORTANT Model 213.0/2 with code 357 (Map navigation)
Code 357 (Card navigation)
36 Enter special equipment in on-line vehicle data card IMPORTANTCode 531 (COMMAND APS)
Code 08U (Vehicle setup)
Code 12U (Concierge service)
Code 14U (Smartphone integration package)
Code 16U (Smartphone integration Carplay)
Code 17U (Smartphone integration Goggle Automotive Link)
37 Attach "COMMAND APS retrofitted in accordance with AN82.85-P-0009LWE" note under field organization texts to design group 82
38 Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
39 Carry out variant coding using software calibration number (SCN) IMPORTANTInstrument cluster
Head unit HERMES control unit Electronic ignition switch control unit Climate control, control unit
IMPORTANT Model 213.0/2 with code 641 (Dynamic left-hand traffic LED headlamps), model 213.0/2 with code 642 (Dynamic right-hand traffic LED headlamps) Headlamp range adjustment control unit
IMPORTANT Model 213.0/2 with code 235 (Active Parking Assist with PARKTRONIC)
Parktronic system control unit
IMPORTANT Model 213.0/2 with code 233 (DISTRONIC PLUS)
Mercedes-Benz Intelligent Drive control unit
40 Disconnect diagnostic system
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
INSPECT Check
41 Perform function test IMPORTANT See Owner's Manual.
PARTS ORDERING NOTE

Part no. Designation Quantity
KG 99 (see EPC) COMMAND Online parts kit 1
scientia non olet · About LEMON Manuals
