Remove/Install Tuner Unit - AR82.60-P-2002LWE
Model 213
with code 522 (Audio 20 radio)
with code 536 (Sirius satellite radio complete system)
Model 213
with code 522 (Audio 20 radio)
with code 537 (DAB digital radio standard (Digital Audio Broadcast))

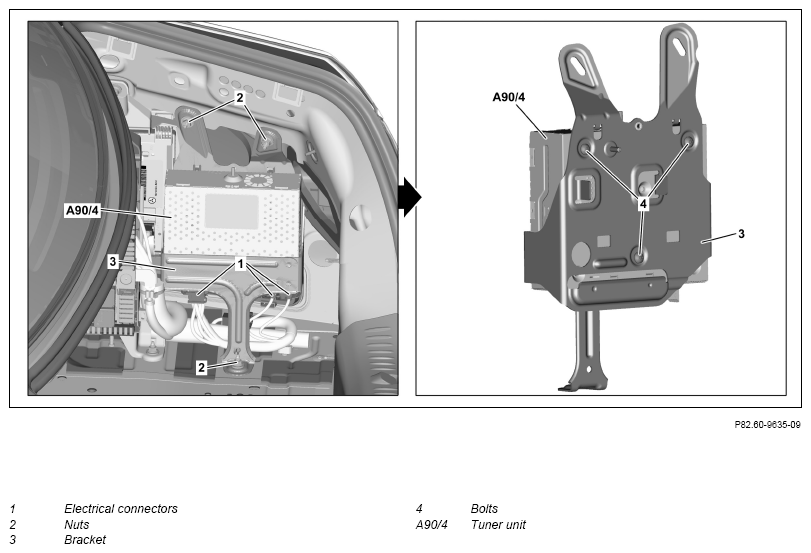

Shown on model 213.0
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Notes on HANDS-FREE ACCESS | Model 213 with code 522 (Audio 20 radio) with code 536 (Sirius satellite radio complete system) with code P17 (KEYLESS-GO package) Model 213 with code 522 (Audio 20 radio) with code 537 (DAB digital radio standard (Digital Audio Broadcast)) with code P17 (KEYLESS-GO package) |
AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Carry out initial startup of tuner unit (A90/4) | When replacing tuner unit (A90/4). | |
| AD00.00-P-2000-04B | |||
| 2.1 | Remove right side trunk lining | Model 213.0/1 with code 522 (Audio 20 radio) with code 536 (Sirius satellite radio complete system) Model 213.0/1 with code 522 (Audio 20 radio) with code 537 (DAB digital radio standard (Digital Audio Broadcast)) |
AR68.30-P-4800LWE |
| 2.2 | Remove right side load compartment paneling | Model 213.2 with code 522 (Audio 20 radio) with code 536 (Sirius satellite radio complete system) Model 213.2 with code 522 (Audio 20 radio) with code 537 (DAB digital radio standard (Digital Audio Broadcast)) |
AR68.30-P-1185LWE |
| 3 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 4 | Disconnect electrical connectors (1) and cover optical fibers | ||
| 5 | Unscrew nuts (2) | ||
| 6 | Remove tuner unit (A90/4) with bracket (3) | ||
| 7 | Unscrew screws/bolts (4) and remove bracket (3) | When replacing tuner unit (A90/4). | |
| 8 | Install in the reverse order |
