Remove/Install Head Unit - AR82.85-P-1101LWE
Model 213, 238

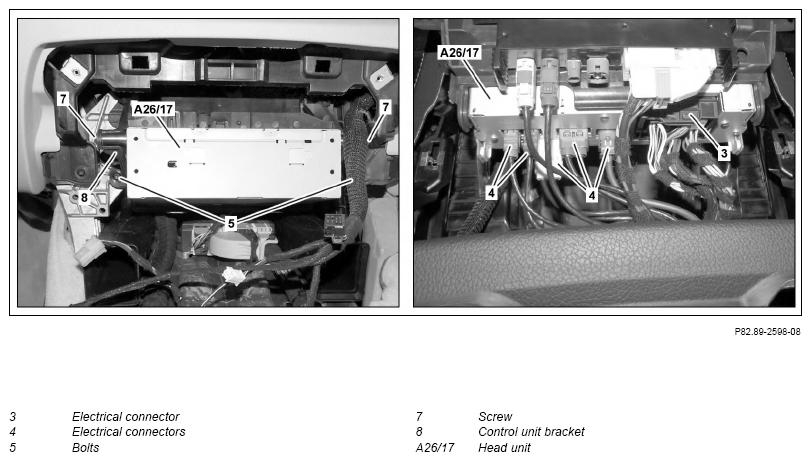

Shown on model 213.0 up to model year 2021

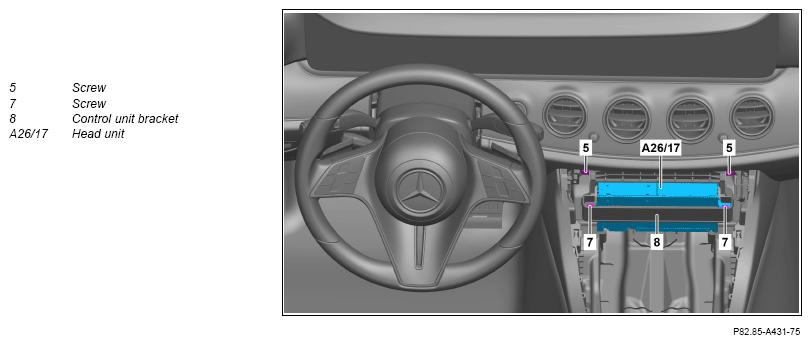

Shown on model 213.0 as of model year 2021
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2.1 | Remove cover from center console. | Model 213, 238 with transmission 725 Model 238 with transmission 725 |
AR68.20-P-2350LWO |
| Model 213 with transmission 725 | AR68.20-P-2350LW | ||
| 2.2 | Remove center console. | Model 213, 238 with transmission 716 Model 238 with transmission 716 |
AR68.20-P-2000LWO |
| Model 213 with transmission 716 | AR68.20-P-2000LWA | ||
| 3 | Remove bolts (5). | ||
| 4 | Remove control unit holder (8) far enough from device installation slot to gain access to electrical connectors (3, 4) on back of head unit (A26/17). | Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function. |
|
| 5 | Release and disconnect electrical connectors (3, 4). | ||
| 6 | Remove bolts_(7). | ||
| 7 | Remove head unit (A26/17). | ||
| 8 | Install in the reverse order. | ||
| 9 | Perform commissioning of head unit (A26/17). | If the head unit (A26/17) has been replaced. | |
| Model 213 | AD00.00-P-2000-04B | ||
| Model 238 | AD00.00-P-2000-06LWO | ||
| 10 | Calibrate augmented reality camera (B84/14). | If the head unit (A26/17) has been replaced. | |
| Model 213 as of model year 2021 with code 21U (Video recording function (Dashcam)) Model 213 as of model year 2021 with code U19 (Augmented reality video) |
AD00.00-P-2000-04B | ||
| Model 238 as of model year 2021 with code 21U (Video recording function (Dashcam)) Model 238 as of model year 2021 with code U19 (Augmented reality video) |
AD00.00-P-2000-06LWO | ||
| 000 588 11 21 00 Adjustment device | WS82.00-P-0151B | ||
| 000 588 00 23 00 Adjusting gauge | WS82.00-P-0028B |
