Remove/Install HERMES Control Unit - AR82.95-P-0019LWE

Model 213, 238

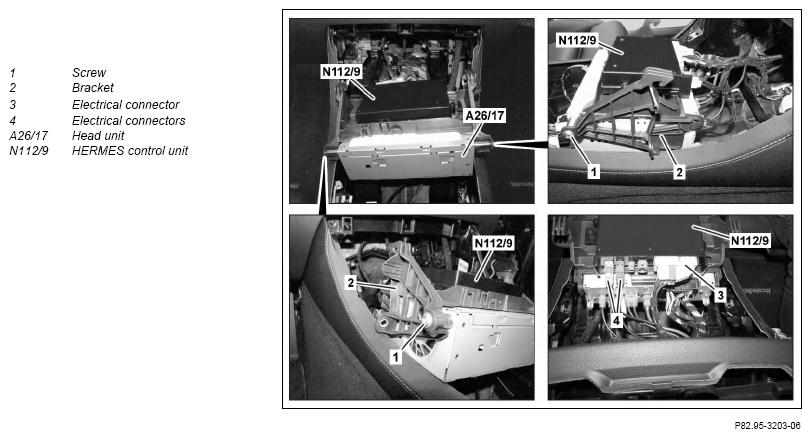

Fig 1: HERMES Control Unit Components Location - Model 213

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Connect diagnostic system and perform initial startup of HERMES control unit (N112/9)	When replacing the HERMES control unit (N112/9).
		Model 238	AD00.00-P-2000-06LWO
		Model 213	AD00.00-P-2000-04B
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
3	Release head unit (A26/17) and pull backwards far enough for HERMES control unit (N112/9) to be removed	Cover up center console using a suitable dry cloth. Otherwise, the center console may be damaged. Do not disconnect electrical connectors at head unit (A26/17).	AR82.85-P-1101LWE
4	Disconnect electrical connectors (3, 4) from HERMES control unit (N112/9)	The number of electrical connections (4) can vary depending on the equipment installed.
5	Remove bolts (1)
6	Remove bracket (2) with HERMES control unit (N112/9) from head unit (A26/17)
7	Remove bolt from underside of bracket (2)	When replacing the HERMES control unit (N112/9).
8	Unclip HERMES control unit (N112/9) from bracket (2) and remove	When replacing the HERMES control unit (N112/9).
9	Install in the reverse order
