Overview Of System Components Of Parking Assistance Systems - GF54.00-P-9997RFM
Model 205
as of model year 2019
with code 218 (Rear view camera)
Model 205
as of model year 2019
with code P44 (Parking package)
Model 205
as of model year 2019
with code P47 (Parking Pilot with 360° camera)
Model 253 (except 253.99)
as of model year 2020
with code 218 (Rear view camera)
Model 253 (except 253.99)
as of model year 2020
with code P44 (Parking package)
Model 253 (except 253.99)
as of model year 2020
with code P47 (Parking Pilot with 360° camera)
Model 253.99
with code P47 (Parking Pilot with 360° camera)

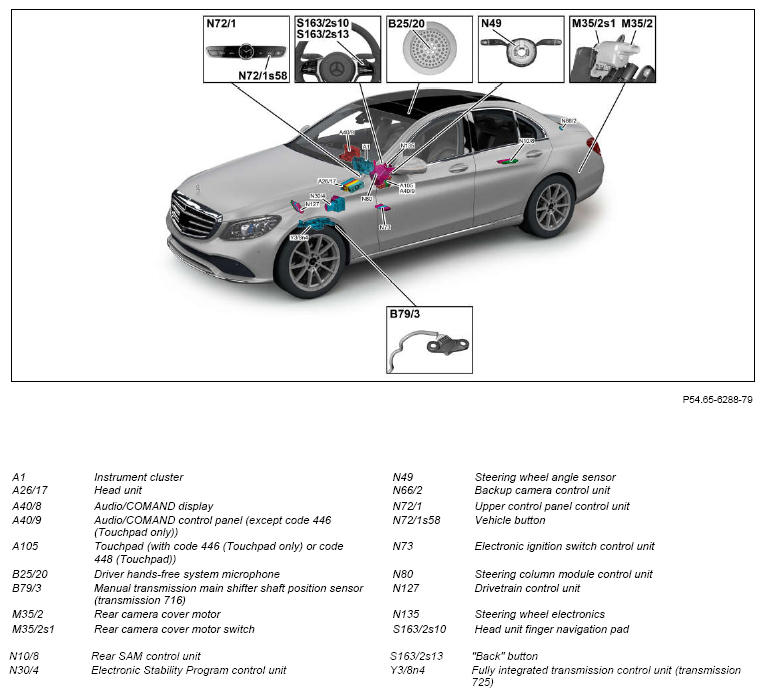

Reversing camera (RFK) (with CODE 218 (Reversing camera)), shown on model 205.0

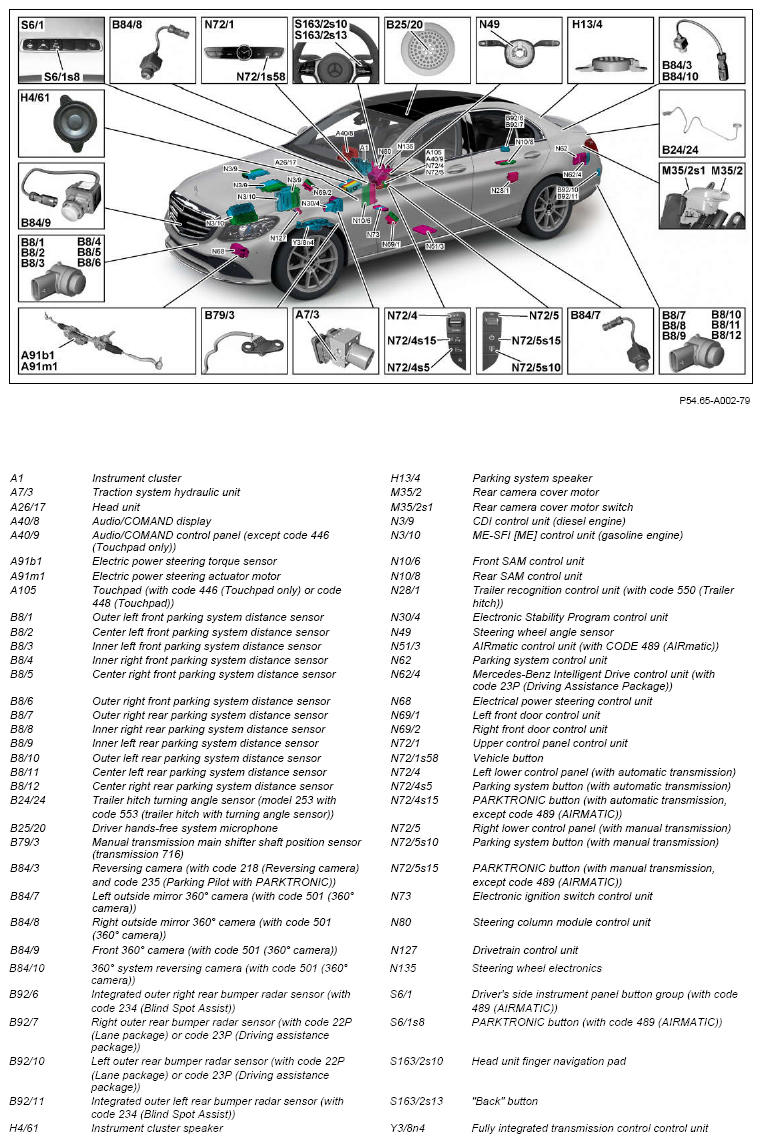

Parking system (with code P44 (Parking Package) or with code P47 (Parking Pilot with 360° camera)), shown on model 205.0
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Head unit, component description | Model 205 as of model year 2019 with code 218 (Rear view camera) with code 506 (Audio 20 NTG 5.5 radio) Model 205 as of model year 2019 with code 218 (Rear view camera) with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Model 205 as of model year 2019 with code 506 (Audio 20 NTG 5.5 radio) with code P44 (Parking package) Model 205 as of model year 2019 with code 506 (Audio 20 NTG 5.5 radio) with code P47 (Parking Pilot with 360° camera) Model 205 as of model year 2019 with code 531 (COMAND APS) with code P44 (Parking package) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Model 205 as of model year 2019 with code 531 (COMAND APS) with code P47 (Parking Pilot with 360° camera) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Model 253.99 with code 531 (COMAND APS) with code P47 (Parking Pilot with 360° camera) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) A26/17 |
GF82.85-P-3140RFB | |
| Model 253 (except 253.99) as of model year 2020 with code 218 (Rear view camera) with code 547 (Connect 20 Entry (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 (except 253.99) as of model year 2020 with code 218 (Rear view camera) with code 548 (Connect 20 MID (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 (except 253.99) as of model year 2020 with code 218 (Rear view camera) with code 549 (Connect 20 HIGH (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 (except 253.99) as of model year 2020 with code 547 (Connect 20 Entry (NTG6)) with code P44 (Parking package) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 (except 253.99) as of model year 2020 with code 547 (Connect 20 Entry (NTG6)) with code P47 (Parking Pilot with 360° camera) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 (except 253.99) as of model year 2020 with code 548 (Connect 20 MID (NTG6)) with code P44 (Parking package) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 (except 253.99) as of model year 2020 with code 548 (Connect 20 MID (NTG6)) with code P47 (Parking Pilot with 360° camera) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 (except 253.99) as of model year 2020 with code 549 (Connect 20 HIGH (NTG6)) with code P44 (Parking package) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 (except 253.99) as of model year 2020 with code 549 (Connect 20 HIGH (NTG6)) with code P47 (Parking Pilot with 360° camera) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RFM | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150RF | |
| Component description for Audio/COMAND control panel | Model 205 as of model year 2019 with code 218 (Rear view camera) except code 446 (Touchpad only) Model 205 as of model year 2019 with code P44 (Parking package) except code 446 (Touchpad only) Model 205 as of model year 2019 with code P47 (Parking Pilot with 360° camera) except code 446 (Touchpad only) A40/9 |
GF54.21-P-4501RF | |
| Touchpad, component description | Model 205 as of model year 2019 with code 218 (Rear view camera) with code 446 (Touchpad only) Model 205 as of model year 2019 with code 218 (Rear view camera) with code 448 (Touchpad) Model 205 as of model year 2019 with code 446 (Touchpad only) with code P44 (Parking package) Model 205 as of model year 2019 with code 446 (Touchpad only) with code P47 (Parking Pilot with 360° camera) Model 205 as of model year 2019 with code 448 (Touchpad) with code P44 (Parking package) Model 205 as of model year 2019 with code 448 (Touchpad) with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.99) as of model year 2020 with code 446 (Touchpad only) with code P44 (Parking package) Model 253 (except 253.99) as of model year 2020 with code 446 (Touchpad only) with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.99) as of model year 2020 with code 448 (Touchpad) with code P44 (Parking package) Model 253 (except 253.99) as of model year 2020 with code 448 (Touchpad) with code P47 (Parking Pilot with 360° camera) Model 253.99 with code 446 (Touchpad only) with code P47 (Parking Pilot with 360° camera) A105 |
GF54.21-P-4511RF | |
| Component description for bumper radar sensors | Model 205 as of model year 2019 with code 218 (Rear view camera) with code 234 (Blind Spot Monitoring) Model 205 as of model year 2019 with code 218 (Rear view camera) with code 23P (Driving Assistance package) Model 205 as of model year 2019 with code 234 (Blind Spot Monitoring) with code P44 (Parking package) Model 205 as of model year 2019 with code 234 (Blind Spot Monitoring) with code P47 (Parking Pilot with 360° camera) Model 205 as of model year 2019 with code 23P (Driving Assistance package) with code P44 (Parking package) Model 205 as of model year 2019 with code 23P (Driving Assistance package) with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.99) as of model year 2020 with code 218 (Rear view camera) with code 234 (Blind Spot Monitoring) Model 253 (except 253.99) as of model year 2020 with code 218 (Rear view camera) with code 23P (Driving Assistance package) Model 253 (except 253.99) as of model year 2020 with code 234 (Blind Spot Monitoring) with code P44 (Parking package) Model 253 (except 253.99) as of model year 2020 with code 234 (Blind Spot Monitoring) with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.99) as of model year 2020 with code 23P (Driving Assistance package) with code P44 (Parking package) Model 253 (except 253.99) as of model year 2020 with code 23P (Driving Assistance package) with code P47 (Parking Pilot with 360° camera) Model 253.99 with code 234 (Blind Spot Monitoring) with code P47 (Parking Pilot with 360° camera) B92/6, B92/7, B92/10, B92/11 |
GF30.30-P-3302RFM | |
| Component description for CDI control unit | Model 205 with engine 626 as of model year 2019 with code 218 (Rear view camera) Model 205 with engine 626 as of model year 2019 with code P44 (Parking package) Model 205 with engine 626 as of model year 2019 with code P47 (Parking Pilot with 360° camera) N3/9 |
GF07.16-P-6000ORB | |
| Model 205.012/212 with engine 651.9 as of model year 2019 with code 218 (Rear view camera) Model 205.012/212 with engine 651.9 as of model year 2019 with code P44 (Parking package) Model 205.012/212 with engine 651.9 as of model year 2019 with code P47 (Parking Pilot with 360° camera) N3/9 |
GF07.16-P-6000OLC | ||
| Model 205 (except 205.012/212) with engine 651.9 as of model year 2019 with code 218 (Rear view camera) with code 494 (US version) Model 205 (except 205.012/212) with engine 651.9 as of model year 2019 with code 494 (US version) with code P44 (Parking package) Model 205 (except 205.012/212) with engine 651.9 as of model year 2019 with code 494 (US version) with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.99) with engine 651.9 as of model year 2020 with code 218 (Rear view camera) Model 253 (except 253.99) with engine 651.9 as of model year 2020 with code P44 (Parking package) Model 253 (except 253.99) with engine 651.9 as of model year 2020 with code P47 (Parking Pilot with 360° camera) N3/9 |
GF07.16-P-6000OLD | ||
| Model 205 (except 205.012/212) with engine 651 as of model year 2019 with code 218 (Rear view camera) except code 494 (US version) Model 205 (except 205.012/212) with engine 651 as of model year 2019 with code P44 (Parking package) except code 494 (US version) Model 205 (except 205.012/212) with engine 651 as of model year 2019 with code P47 (Parking Pilot with 360° camera) except code 494 (US version) N3/9 |
GF07.16-P-6000OLE | ||
| Model 205 (except 205.013/213) with engine 654.9 as of model year 2019 with code 218 (Rear view camera) Model 205 (except 205.013/213) with engine 654.9 as of model year 2019 with code P44 (Parking package) Model 205 (except 205.013/213) with engine 654.9 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.99) with engine 656.9 as of model year 2020 with code 218 (Rear view camera) Model 253 (except 253.99) with engine 656.9 as of model year 2020 with code P44 (Parking package) Model 253 (except 253.99) with engine 656.9 as of model year 2020 with code P47 (Parking Pilot with 360° camera) N3/9 |
GF07.16-P-6000ORF | ||
| Model 205.013/213 with engine 654.9 as of model year 2019 with code 218 (Rear view camera) Model 205.013/213 with engine 654.9 as of model year 2019 with code P44 (Parking package) Model 205.013/213 with engine 654.9 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253.311/911 with engine 654.9 as of model year 2020 with code 218 (Rear view camera) Model 253.311/911 with engine 654.9 as of model year 2020 with code P44 (Parking package) Model 253.311/911 with engine 654.9 as of model year 2020 with code P47 (Parking Pilot with 360° camera) N3/9 |
GF07.16-P-6000ORH | ||
| Component description for ME-SFI (ME) control unit | Model 205 with engine 177.9 as of model year 2019 with code 218 (Rear view camera) Model 205 with engine 177.9 as of model year 2019 with code P44 (Parking package) Model 205 with engine 177.9 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.99) with engine 177.9 as of model year 2020 with code 218 (Rear view camera) Model 253 (except 253.99) with engine 177.9 as of model year 2020 with code P44 (Parking package) Model 253 (except 253.99) with engine 177.9 as of model year 2020 with code P47 (Parking Pilot with 360° camera) N3/10 |
GF07.61-P-6000MNA | |
| Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 as of model year 2019 with code 218 (Rear view camera) Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 as of model year 2019 with code P44 (Parking package) Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.354/954) with engine 274.9 as of model year 2020 with code 218 (Rear view camera) Model 253 (except 253.354/954) with engine 274.9 as of model year 2020 with code P44 (Parking package) Model 253 (except 253.354/954) with engine 274.9 as of model year 2020 with code P47 (Parking Pilot with 360° camera) N3/10 |
GF07.61-P-6000MRA | ||
| Model 205.047/053/054/147/247/253 with engine 274.9 as of model year 2019 with code 218 (Rear view camera) Model 205.047/053/054/147/247/253 with engine 274.9 as of model year 2019 with code P44 (Parking package) Model 205.047/053/054/147/247/253 with engine 274.9 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253.354/954 with engine 274.9 as of model year 2020 with code 218 (Rear view camera) Model 253.354/954 with engine 274.9 as of model year 2020 with code P44 (Parking package) Model 253.354/954 with engine 274.9 as of model year 2020 with code P47 (Parking Pilot with 360° camera) N3/10 |
GF07.61-P-6000MRH | ||
| Model 205 with engine 276.8 as of model year 2019 with code 218 (Rear view camera) Model 205 with engine 276.8 as of model year 2019 with code P44 (Parking package) Model 205 with engine 276.8 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.99) with engine 276.8 as of model year 2020 with code 218 (Rear view camera) Model 253 (except 253.99) with engine 276.8 as of model year 2020 with code P44 (Parking package) Model 253 (except 253.99) with engine 276.8 as of model year 2020 with code P47 (Parking Pilot with 360° camera) N3/10 |
GF07.61-P-6000MMV | ||
| Model 205 with engine 264.9 as of model year 2019 with code 218 (Rear view camera) Model 205 with engine 264.9 as of model year 2019 with code P44 (Parking package) Model 205 with engine 264.9 as of model year 2019 with code P47 (Parking Pilot with 360° camera) N3/10 |
GF07.61-P-6000MRS | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030RF | |
| Component description for trailer recognition control unit | Model 205 as of model year 2019 with code 218 (Rear view camera) with code 550 (Trailer coupling) Model 205 as of model year 2019 with code 550 (Trailer coupling) with code P44 (Parking package) Model 205 as of model year 2019 with code 550 (Trailer coupling) with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.99) as of model year 2020 with code 218 (Rear view camera) with code 550 (Trailer coupling) Model 253 (except 253.99) as of model year 2020 with code 550 (Trailer coupling) with code P44 (Parking package) Model 253 (except 253.99) as of model year 2020 with code 550 (Trailer coupling) with code P47 (Parking Pilot with 360° camera) Model 253.99 with code 550 (Trailer coupling) with code P47 (Parking Pilot with 360° camera) N28/1 |
GF31.19-P-4050RF | |
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) as of model year 2019 with code 218 (Rear view camera) Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) as of model year 2019 with code P44 (Parking package) Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.354/954/99) as of model year 2020 with code 218 (Rear view camera) Model 253 (except 253.354/954/99) as of model year 2020 with code P44 (Parking package) Model 253 (except 253.354/954/99) as of model year 2020 with code P47 (Parking Pilot with 360° camera) N30/4 |
GF42.45-P-5119RF | |
| Model 205.012/013/047/053/054/147/212/213/247/253 as of model year 2019 with code 218 (Rear view camera) Model 205.012/013/047/053/054/147/212/213/247/253 as of model year 2019 with code P44 (Parking package) Model 205.012/013/047/053/054/147/212/213/247/253 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253.354/954 as of model year 2020 with code 218 (Rear view camera) Model 253.354/954 as of model year 2020 with code P44 (Parking package) Model 253.354/954 as of model year 2020 with code P47 (Parking Pilot with 360° camera) Model 253.99 with code P47 (Parking Pilot with 360° camera) N30/4 |
GF42.45-P-5119RFH | ||
| AIRMATIC control unit, component description | Model 205 as of model year 2019 with code 218 (Rear view camera) with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) Model 205 as of model year 2019 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) with code P44 (Parking package) Model 205 as of model year 2019 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) with code P47 (Parking Pilot with 360° camera) N51/3 |
GF32.22-P-5110RF | |
| AIR BODY CONTROL control unit, component description | Model 253 (except 253.99) as of model year 2020 with code 218 (Rear view camera) with code 489 (AIR BODY CONTROL) Model 253 (except 253.99) as of model year 2020 with code 489 (AIR BODY CONTROL) with code P44 (Parking package) Model 253 (except 253.99) as of model year 2020 with code 489 (AIR BODY CONTROL) with code P47 (Parking Pilot with 360° camera) N51/3 |
GF32.22-P-5111RF | |
| Parking system control unit, component description | Model 205 as of model year 2019 with code P44 (Parking package) Model 205 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.99) as of model year 2020 with code P44 (Parking package) Model 253 (except 253.99) as of model year 2020 with code P47 (Parking Pilot with 360° camera) Model 253.99 with code P47 (Parking Pilot with 360° camera) N62 |
GF54.65-P-5004RFM | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 205 as of model year 2019 with code 23P (Driving Assistance package) with code P44 (Parking package) Model 205 as of model year 2019 with code 23P (Driving Assistance package) with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.99) as of model year 2020 with code 23P (Driving Assistance package) with code P44 (Parking package) Model 253 (except 253.99) as of model year 2020 with code 23P (Driving Assistance package) with code P47 (Parking Pilot with 360° camera) N62/4 |
GF30.30-P-3312RFM | |
| Component description for reversing camera control unit | Model 205 as of model year 2019 with code 218 (Rear view camera) except code 235 (Parking Pilot with PARKTRONIC) Model 253 (except 253.99) as of model year 2020 with code 218 (Rear view camera) except code 235 (Parking Pilot with PARKTRONIC) N66/2 |
GF54.65-P-5030RFM | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010RF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RF | |
| Upper control panel control unit, component description | N721, N72/1s58 | GF54.21-P-6040RF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RFM | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RFM | |
| Drivetrain control unit, component description | Model 205 with engine 626 as of model year 2019 with code 218 (Rear view camera) Model 205 with engine 626 as of model year 2019 with code P44 (Parking package) Model 205 with engine 626 as of model year 2019 with code P47 (Parking Pilot with 360° camera) N127 |
GF54.21-P-2141ORB | |
| Model 205.012/212 with engine 651.9 as of model year 2019 with code 218 (Rear view camera) Model 205.012/212 with engine 651.9 as of model year 2019 with code P44 (Parking package) Model 205.012/212 with engine 651.9 as of model year 2019 with code P47 (Parking Pilot with 360° camera) N127 |
GF54.21-P-2141OLC | ||
| Model 205 (except 205.012/212) with engine 651.9 as of model year 2019 with code 218 (Rear view camera) Model 205 (except 205.012/212) with engine 651.9 as of model year 2019 with code P44 (Parking package) Model 205 (except 205.012/212) with engine 651.9 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.99) with engine 642.8, 651.9 as of model year 2020 with code 218 (Rear view camera) Model 253 (except 253.99) with engine 642.8, 651.9 as of model year 2020 with code P44 (Parking package) Model 253 (except 253.99) with engine 642.8, 651.9 as of model year 2020 with code P47 (Parking Pilot with 360° camera) N127 |
GF54.21-P-2141OLD | ||
| Model 205 with engine 177.9 as of model year 2019 with code 218 (Rear view camera) Model 205 with engine 177.9 as of model year 2019 with code P44 (Parking package) Model 205 with engine 177.9 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.99) with engine 177.9 as of model year 2020 with code 218 (Rear view camera) Model 253 (except 253.99) with engine 177.9 as of model year 2020 with code P44 (Parking package) Model 253 (except 253.99) with engine 177.9 as of model year 2020 with code P47 (Parking Pilot with 360° camera) N127 |
GF54.21-P-2141MNA | ||
| Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 as of model year 2019 with code 218 (Rear view camera) Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 as of model year 2019 with code P44 (Parking package) Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.354/954) with engine 274.9 as of model year 2020 with code 218 (Rear view camera) Model 253 (except 253.354/954) with engine 274.9 as of model year 2020 with code P44 (Parking package) Model 253 (except 253.354/954) with engine 274.9 as of model year 2020 with code P47 (Parking Pilot with 360° camera) N127 |
GF54.21-P-2141MRA | ||
| Model 205.047/053/054/147/247/253 with engine 274.9 as of model year 2019 with code 218 (Rear view camera) Model 205.047/053/054/147/247/253 with engine 274.9 as of model year 2019 with code P44 (Parking package) Model 205.047/053/054/147/247/253 with engine 274.9 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253.354/954 as of model year 2020 with code 218 (Rear view camera) Model 253.354/954 as of model year 2020 with code P44 (Parking package) Model 253.354/954 as of model year 2020 with code P47 (Parking Pilot with 360° camera) N127 |
GF54.21-P-2141MRH | ||
| Model 205 with engine 276.8 as of model year 2019 with code 218 (Rear view camera) Model 205 with engine 276.8 as of model year 2019 with code P44 (Parking package) Model 205 with engine 276.8 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.99) with engine 276.8 as of model year 2020 with code 218 (Rear view camera) Model 253 (except 253.99) with engine 276.8 as of model year 2020 with code P44 (Parking package) Model 253 (except 253.99) with engine 276.8 as of model year 2020 with code P47 (Parking Pilot with 360° camera) N127 |
GF54.21-P-2141RF | ||
| Model 205 with engine 264.9 as of model year 2019 with code 218 (Rear view camera) Model 205 with engine 264.9 as of model year 2019 with code P44 (Parking package) Model 205 with engine 264.9 as of model year 2019 with code P47 (Parking Pilot with 360° camera) N127 |
GF54.21-P-2141MRS | ||
| Model 205 with engine 654.9 as of model year 2019 with code 218 (Rear view camera) Model 205 with engine 654.9 as of model year 2019 with code P44 (Parking package) Model 205 with engine 654.9 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.99) with engine 654.9, 656.9 as of model year 2020 with code 218 (Rear view camera) Model 253 (except 253.99) with engine 654.9, 656.9 as of model year 2020 with code P44 (Parking package) Model 253 (except 253.99) with engine 654.9, 656.9 as of model year 2020 with code P47 (Parking Pilot with 360° camera) N127 |
GF54.21-P-2141ORH | ||
| Steering wheel electronics control unit, component description | N135 | GF82.90-P-4006RFM | |
| Component description for fully integrated transmission control unit | Model 205 with transmission 722.9 (except 722.930) as of model year 2019 with code 218 (Rear view camera) Model 205 with transmission 722.9 (except 722.930) as of model year 2019 with code P44 (Parking package) Model 205 with transmission 722.9 (except 722.930) as of model year 2019 with code P47 (Parking Pilot with 360° camera) Y38n4 |
GF27.60-P-5165AHE | |
| Model 205 with transmission 722.930 as of model year 2019 with code 218 (Rear view camera) Model 205 with transmission 722.930 as of model year 2019 with code P44 (Parking package) Model 205 with transmission 722.930 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Y38n4 |
GF27.60-P-5165AIA | ||
| Model 205 with transmission 724.2 as of model year 2019 with code 218 (Rear view camera) Model 205 with transmission 724.2 as of model year 2019 with code P44 (Parking package) Model 205 with transmission 724.2 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.99) with transmission 724.2 as of model year 2020 with code 218 (Rear view camera) Model 253 (except 253.99) with transmission 724.2 as of model year 2020 with code P44 (Parking package) Model 253 (except 253.99) with transmission 724.2 as of model year 2020 with code P47 (Parking Pilot with 360° camera) Y38n4 |
GF27.60-P-5165RFH | ||
| Model 205 with transmission 725.0 (except 725.017) as of model year 2019 with code 218 (Rear view camera) Model 205 with transmission 725.0 (except 725.017) as of model year 2019 with code P44 (Parking package) Model 205 with transmission 725.0 (except 725.017) as of model year 2019 with code P47 (Parking Pilot with 360° camera) |
GF27.60-P-5165ANG | ||
| Y38n4 Model 205 with transmission 725.017 as of model year 2019 with code 218 (Rear view camera) Model 205 with transmission 725.017 as of model year 2019 with code P44 (Parking package) Model 205 with transmission 725.017 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Y38n4 |
GF27.60-P-5165AHH | ||
| Table of contents for function description of parking assistance systems | GF54.00-P-0997RFM |
