Upper Control Panel Control Unit, Component Description - GF54.21-P-6040RF
Model 205
Model 253

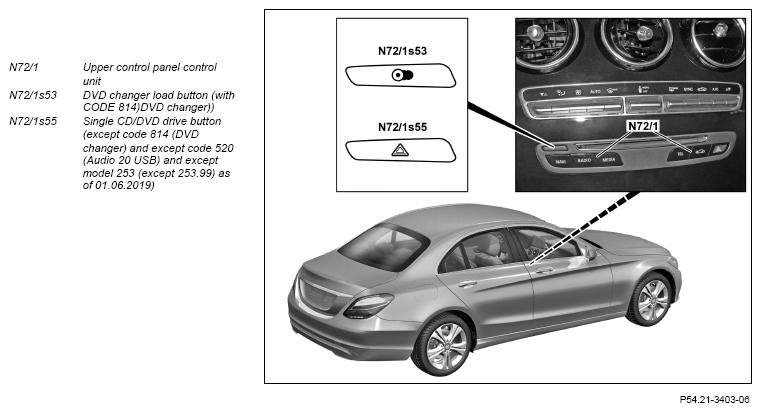

Shown on model 205.0 with transmission 722
Location
The upper control panel control unit is located in the center in the instrument panel above the center console.
Tasks
The upper control panel control unit forwards the signals of the integrated control elements and actuates the integrated display elements for function feedback. On vehicles with CODE 522 (Audio 20 radio) or CODE 531 (COMAND APS), the upper control panel control unit enables access to the CD or DVD drive on the head unit (A26/17).
The upper control panel control unit sends and receives signals and requests over the LCP-LIN (LIN A3). The flashing indicator in the hazard warning lights button (N72/1s57) is actuated by the front SAM control unit (N10/6) over a direct line.

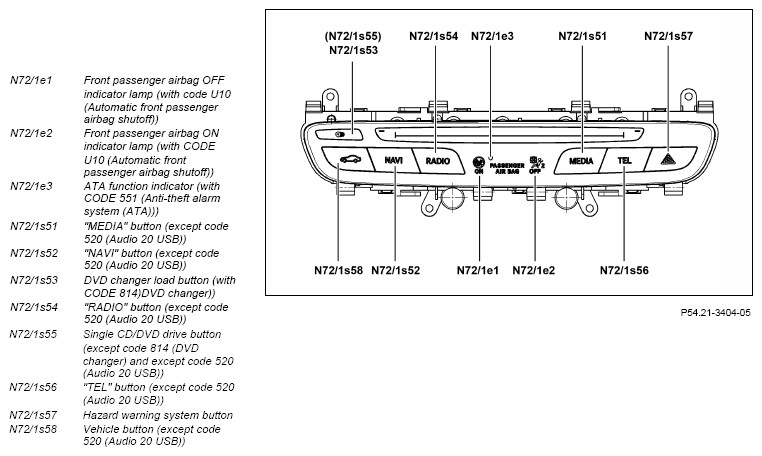

Shown with transmission 716, not valid for model 253 (except 253.99) as of 01.06.2019

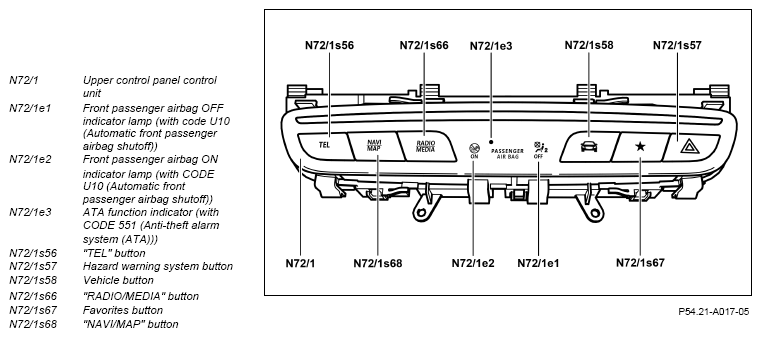

Shown on model 253 (except 253.99) as of 01.06.2019
Structure
The following control elements are located in the upper control panel control unit (except model 253 (except 253.99) as of 01.06.2019):
- "MEDIA" button (except code 520 (Audio 20 USB))
- "NAVI" button (except code 520 (Audio 20 USB))
- DVD changer load button (with CODE 814) DVD changer))
- "RADIO" button (except code 520 (Audio 20 USB))
- Single CD/DVD drive button (except code 814 (DVD changer) and except code 520 (Audio 20 USB))
- "TEL" button (except code 520 (Audio 20 USB))
- Hazard warning system button
- Vehicle button (except code 520 (Audio 20 USB))
In model 253 (except 253.99) as of 01.06.2019, the following control elements are located in the upper control panel control unit:
- "TEL" button
- "NAVI/MAP" button
- "RADIO/MEDIA" button
- Vehicle button
- Favorites button
- Hazard warning system button
The following display elements are located in the upper control panel control unit:
- Front passenger airbag OFF indicator lamp (with code U10 (Automatic front passenger airbag shutoff))
- Front passenger airbag ON indicator lamp for automatic child seat recognition (with code U10 (Automatic front passenger airbag shutoff))
- ATA function indicator (with CODE 551 (Anti-theft alarm system (ATA)))
Variants
The number of buttons and display elements in the upper control panel control unit is dependent on the type and code conditions listed in the "Design" chapter. The location of the buttons in the upper control panel control unit is dependent on the type of transmission (automatic transmission or manual transmission).
| Wiring diagram for upper control panel control unit | Model 205 up to model year 2019, Model 253 (except 253.99) up to model year 2020 | PE54.21-P-2119-97FBA | |
| Model 205 as of model year 2019 | PE54.21-P-2119-97FBB | ||
| Model 253 (except 253.99) as of model year 2020, Model 253.99 | PE54.21-P-2119-97FCA |
