Remove/Install Oil Separator On Crankcase - AR01.20-P-9692MRU

Engine 274.9 in model 172, 205, 213, 253 with code 494 (US version)

Engine 274.9 in model 172, 205, 213, 253 with code 945 (China Stage 6 exhaust treatment)

Shown on engine 274.9 in model 205.048

Courtesy of MERCEDES-BENZ USA

Shown on engine 274.9 in model 205.048

Courtesy of MERCEDES-BENZ USA

Shown on engine 274.9 in model 205.048

Courtesy of MERCEDES-BENZ USA

Shown on engine 274.9 in model 205.048

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
	Remove/install
1	Secure vehicle against rolling away, shift transmission to neutral position, and release parking brake.
2	Deactivate easy entry and exit feature.	Engine 274.9 in model 205, 213, 253 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code 494 (US version) with code M005 (Vehicles with 4MATIC/all-wheel drive) Engine 274.9 in model 205, 213, 253 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code 945 (China Stage 6 exhaust treatment) with code M005 (Vehicles with 4MATIC/all-wheel drive)
3	Move front wheels to straight-ahead position and fix steering wheel in place with holding device.	Model 205, 213, 253 with engine 274.9 with code 494 (US version) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 205, 213, 253 with engine 274.9 with code 945 (China Stage 6 exhaust treatment) with code M005 (Vehicles with 4MATIC/all-wheel drive) Retainer device	Fig 7
4	Remove upper engine cover.	Installation:  Only install upper engine cove after the leak test.
5	Disconnect ground line from battery.	Model 172	AR54.10-P-0003W
		Model 205, model 213, model 253	AR54.10-P-0003LW
6	Remove center and rear sections of lower engine compartment lining.	Model 172	AR61.20-P-1105W
		Model 213	AR61.20-P-1105LWE
		Model 205, model 253 Installation:  Only install center and rear lower rear engine compartment paneling again after leak test.	AR61.20-P-1105LW
7	Remove air intake hose upstream of the air filter housing.

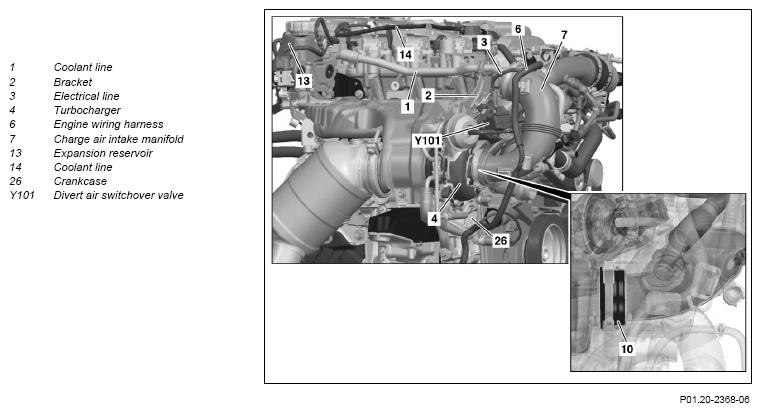

8	Unclip coolant line (1) from the bracket (2) and place to one side.	Model 172, model 205 with code ME05 HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)
9	Release and disconnect electrical connector from the overrun mode bypass air switchover valve (Y101) and place electric line (3) to one side.

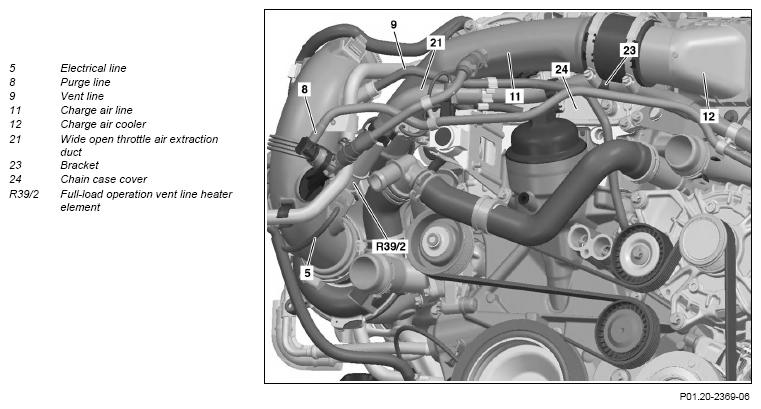

10	Release and disconnect electrical connector from the full-load operation vent line heater element (R39/2) and place electric line (5) to one side.
11	Unclip engine wiring harness (6) from the charge air intake manifold (7) and place to one side.
12	Release and disconnect purge line (8) from the charge air intake manifold (7).
13	Remove bleed line (9) from the charge air intake manifold (7).	Pliers for click clamps	Fig 4
14	Remove bleed line between the charge air intake manifold (7) and charge air line (11) from the charge air intake manifold (7).	Hose clamp pliers	Fig 1
15	Remove charge air intake manifold (7) from the exhaust gas turbocharger (4).	Model 172	AR09.10-P-8131MRE
		Model 213	AR09.10-P-8131MRD
		Model 205, model 253	AR09.10-P-8131MRA
16	Remove charge air line (11) from the exhaust gas turbocharger (4) and charge air cooler (12).
17	Remove engine management (MCM) control unit together with the bracket.	Model 172	AR07.08-P-7008MR
		Model 213	AR07.08-P-7013MRD
		Model 205, model 253	AR07.08-P-7008MRA
18	Remove the bracket (16).	Bolt, holder for engine mount to holder for charge air cooler	*BA09.41-P-1004-01U
		Screw/bolt, water-cooled charge air cooler bracket to cylinder head cover/cylinder head	*BA09.41-P-1003-01U
19.1	Unscrew cap from the expansion reservoir (13) and relieve pressure in the low-temperature circuit.	Model 172, model 205, model 253
19.2	Unscrew cap from the engine cooling system expansion reservoir and relieve pressure in the engine cooling system.	Model 213
20	Remove charge air cooler (12) and place to one side with connected coolant lines.	Model 172	AR09.41-P-6817MRE
		Model 213	AR09.41-P-0105MRD
		Model 205, model 253	AR09.41-P-6819MRA

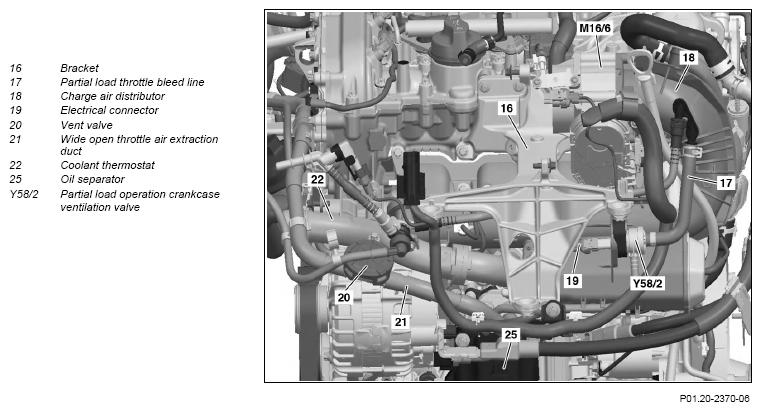

21	Remove partial load throttle bleed line (17) from charge-air distributor (18).	Hose clamp pliers	Fig 1
22	Release and disconnect electrical connector (19).
23	Remove partial-load operation crankcase ventilation system valve (Y58/2) from the charge-air distributor (18) and place to one side
24	Remove bleed valve (20) from coolant thermostat (22).	Bolt, vent line to coolant thermostat	*BA01.20-P-1008-01R
25	Remove bracket (23) from the chain case cover (24).	Charge air pipe/charge air cooling	*BA09.41-P-1001-01U
26	Mount engine support fixture.	Model 172, model 205, model 213, model 253
		Model 205, model 253	AR33.10-P-0105LW
		Model 213	AR01.10-P-2400-17MRD
		Model 213 Bolt, coolant expansion reservoir for high-voltage battery cooling to crossmember	BA20.50-P-1006-01D
		Model 213 Adapter kit	240589013100
		Model 213 Engine lifting device	240589006100
		Model 213 Adaptation plates	240589003200
		Model 213 Engine hoist	205589006100
27	Lift engine slightly.	Do not subject engine mount and lines to tension. Otherwise damage will occur.
28	Disconnect left engine mount from the engine carrier.	Model 213 Bolt, front engine mount to engine support	BA22.10-P-1001-03N
		Model 253 Bolt, front engine mount to engine support	BA22.10-P-1001-03M
		Model 172, model 205 Bolt, front engine mount to engine support	*BA22.10-P-1001-03E
29	Remove steering coupling.	Engine 274.9 in model 205, 213, 253 with code 494 (US version) with code M005 (Vehicles with 4MATIC/all-wheel drive) Engine 274.9 in model 205, 213, 253 with code 945 (China Stage 6 exhaust treatment) with code M005 (Vehicles with 4MATIC/all-wheel drive)
			AR46.10-P-8000LW
30	Remove refrigerant compressor and place to one side with connected lines.	Engine 274.9 in model 205 (except 205.053/054/253) with code 494 (US version) with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Engine 274.9 in model 205 (except 205.053/054/253) with code 945 (China Stage 6 exhaust treatment) with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Engine 274.9 in model 205.053/054/253, 253.354/954 with code 494 (US version) Engine 274.9 in model 205.053/054/253, 253.354/954 with code 945 (China Stage 6 exhaust treatment)	AR83.55-P-5311LWH
		Engine 274 in model 253 (except 253.354/954) with code 494 (US version) Engine 274.9 in model 205 with code 494 (US version) except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Engine 274.9 in model 205 with code 945 (China Stage 6 exhaust treatment) except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Engine 274.9 in model 213 with code 494 (US version) except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Engine 274.9 in model 213 with code 945 (China Stage 6 exhaust treatment) except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Engine 274.9 in model 253 (except 253.354/954) with code 945 (China Stage 6 exhaust treatment)	AR83.55-P-5310LW
		Engine 274.9 in model 172.4 with code 494 (US version) with code 580 (Air-conditioning system) Engine 274.9 in model 172.4 with code 494 (US version) with code 581 (Automatic air conditioning) Engine 274.9 in model 172.4 with code 580 (Air-conditioning system) with code 945 (China Stage 6 exhaust treatment) Engine 274.9 in model 172.4 with code 581 (Automatic air conditioning) with code 945 (China Stage 6 exhaust treatment)	AR83.55-P-5300W
31	Remove left engine carrier.	Installation:  Observe alignment with the engine mount.
		Bolt, engine support to crankcase	*BA22.10-P-1001-02A
32	Remove circuit 30 electric line from the alternator and place to one side.	Nut, circuit B+ to alternator	*BA15.40-P-1002-01F
33	Remove oil separator (25) from the crankcase (26) and place to one side.	Installation:  Replace seal.
		Bolt, oil separator to crankcase	*BA01.20-P-1002-01R

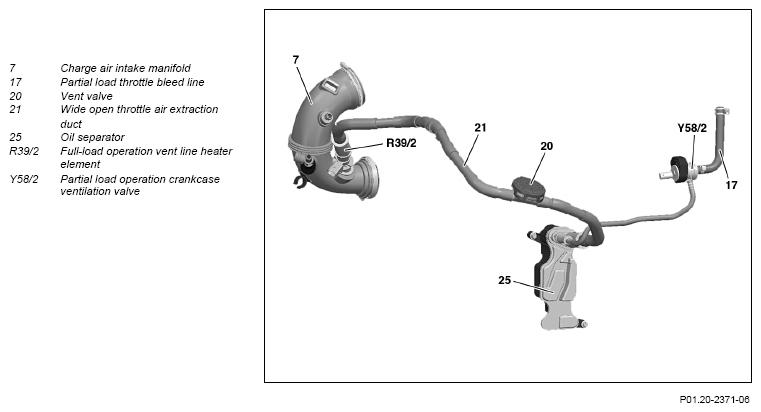

34	Unclip oil separator (25) together with the charge air intake manifold (7), partial load bleed line (17), and wide open throttle bleed line (21) and remove upward.	The oil separator (25), charge air intake manifold (7), partial load throttle bleed line (17), and wide open throttle bleed line (21) form a single unit and may not be separated. Leaks can occur otherwise.
35	Check oil separator (25), charge air intake manifold (7), partial load bleed line (17), and wide open throttle bleed line (21) for damage.	If problems exist, ↓ replace oil separator (25) together with the charge air intake manifold (7), partial load throttle bleed line (17), and wide open throttle bleed line (21).
36	Install in the reverse order.
	Check
	Risk of burn injuries,  suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation  and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
37	Perform engine test run. While doing so, check engine for proper operation and leak tightness.

Fig 1: Identifying Hose Clamp Pliers (003 589 03 37 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Engine Lifting Device (240 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Engine Hoist (205 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Pliers For Click Clamps (171 589 00 37 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Adaptation Plates (240 589 00 32 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Adapter Kit (240 589 01 31 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Retainer Device (129 589 01 21 00)

Courtesy of MERCEDES-BENZ USA
