Remove/Install Charge Air Cooler, Water-Cooled - AR09.41-P-6819MRA
Engine 274.9 in model 205
Engine 274.9 in model 253
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove upper engine cover | ||
| 2 | Drain coolant from low-temperature circuit | AR09.41-P-6834LW | |
| 3 | Unclip purge line (8) from charge air cooler (4) and place to one side | ||
| 4 | Remove coolant hoses (6, 7) from charge air cooler (4) | AR09.41-P-1311-01AL | |

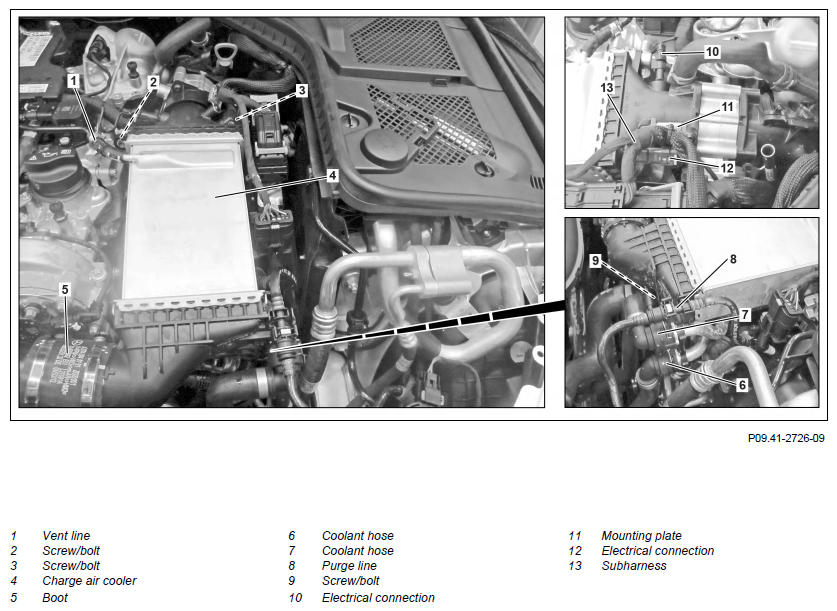

| 5 | Remove vent line (1) from charge air cooler (4) | Fig 1 | |
| 6 | Release and disconnect electrical connection (10) | ||
| 7 | Release and disconnect electrical connection (12) | ||
| 8 | Unclip subharness (13) from mounting plate (11) | ||
| 9 | Unclip engine management control unit with bracket and place to one side with connected lines | ||
| 10 | Remove mounting plate (11) | ||
| 11 | Remove screw/bolts (2, 3, 9) | *BA09.41-P-1002-01U | |
| 12 | Remove charge air cooler (4) from throttle valve | ||
| 13 | Remove charge air cooler (4) from boot (5) and take out | ||
| 14 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 15 | Perform an engine test run and check engine for proper operation and leaktightness | ||
| 16 | Install front and center engine compartment paneling | AR61.20-P-1105LW | |
| 17 | Install upper engine cover |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 274 | |
|---|---|---|---|
| BA09.41-P-1002-01U | Screw/bolt, water-cooled charge air cooler to bracket | Nm | 9 |
