Remove/install rear axle headlamp range adjustment sensor - AR82.10-P-4084NKB
MODEL 117, 156, 176, 242, 246 with CODE 614 (Bi-xenon headlamps)
MODEL 117, 156, 176, 242, 246 with CODE 615 (Bi-xenon headlamps with active light function)
MODEL 117, 156, 176, 242, 246 with CODE 618 (Bi-xenon headlamps)
MODEL 117, 156, 176, 242, 246 with CODE 621 (Intelligent Light System (left-hand traffic))
MODEL 117, 156, 176, 242, 246 with CODE 622 (Intelligent Light System)
MODEL 176 as of model year 2016 with CODE 631 (Static LED headlamps, left-hand traffic)
MODEL 176 as of model year 2016 with CODE 632 (Headlamps, LED, static, right-side traffic)
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Lift vehicle on vehicle lift | AR00.60-P-1000AK | |

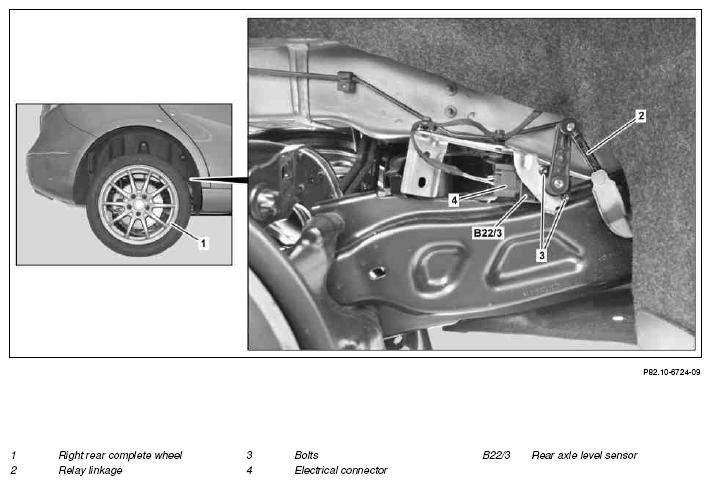

| 2 | Remove right rear complete wheel (1) | ||
| AP40.10-P-4050AK | |||
| 3 | Remove fender liner in right rear fender | Model 117, 156, 176, 242, 246 with code 614 (Bi-xenon headlamps) with code M005 (4MATIC) Model 117, 156, 176, 242, 246 with code 615 (Bi-xenon headlamps with active light function) with code M005 (4MATIC) Model 117, 156, 176, 242, 246 with code 618 (Bi-xenon headlamps) with code M005 (4MATIC) Model 117, 156, 176, 242, 246 with code 621 (Intelligent Light System (left-hand traffic)) with code M005 (4MATIC) Model 117, 156, 176, 242, 246 with code 622 (Intelligent Light System) with code M005 (4MATIC) Model 176 as of model year 2016 with code 631 (Static LED headlamps, left-hand traffic) with code M005 (4MATIC) Model 176 as of model year 2016 with code 632 (Headlamps, LED, static, right-side traffic) with code M005 (4MATIC) |
|
| AR88.10-P-1400NKB | |||
| 4 | Unclip relay linkage (2) | ||
| 5 | Remove bolts (3) | ||
| 6 | Remove rear axle level sensor (B22/3) and disconnect electrical connector (4) | ||
| 7 | Install in the reverse order | ||
| Initial startup | |||
| 8 | Connect diagnostic system; read out fault memory | ||
| AD00.00-P-2000-04A | |||
| 9 | Adjust the zero position of the headlamps using the diagnostic system | ||
| 10 | Check headlamp setting and correct if necessary | ||
| AP82.10-P-8260GI |
