Remove/install wheels, rotate if necessary - AP40.10-P-4050AK

MODEL 117, 156, 169, 176, 242, 245, 246

Left illustration

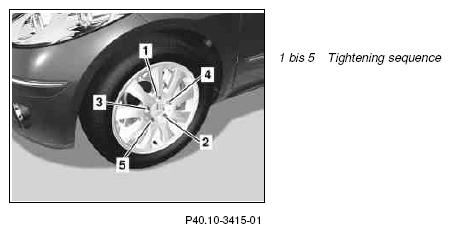

Fig 1: Wheels Bolts Tightening Sequence

Courtesy of MERCEDES-BENZ USA

Right figure

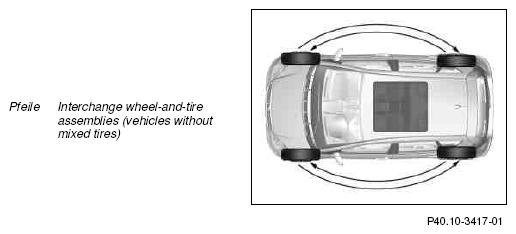

Fig 2: Identifying Tire Rotation Pattern

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Information on tires/rims		AH40.10-P-9411-01A
	Remove
1	Lift vehicle on vehicle lift
			AR00.60-P-1000AK
2	Remove hubcaps	Vehicles with hubcaps
3	Unscrew wheel bolts and remove wheel-and-tire assemblies
	Check
4	Check tires for signs of damage and make sure that they are in good condition	Model 117, 156, 176, 242, 246	AP40.10-P-4051EW
		Model 169, 245 (except 245.286)	AP40.10-P-4051Z
	Install
5	Clean and check wheel bolt connection components, then protect against corrosion		AP40.10-P-4050-01A
		Before mounting a wheel-and-tire assembly all the operation steps listed in the linked description must be conducted carefully. The complete wheel can otherwise work its way loose from the vehicle.
		Paste, hot lubrication 1 kg, DBL 6879.20	*BR00.45-Z-1005-06A
6	Change round wheel-and-tire assemblies on front and rear axles	If necessary, subject to separate repair order and only for vehicles without mixed tires. Maintain running direction of wheel-and-tire assemblies. Otherwise handling characteristics and handling comfort may be impaired and tire wear increased.
7	Mount wheel-and-tire assembly and tighten wheel bolts	Observe the tightening sequence (1 to 5) and tightening torque.
		MODEL 117, 156, 176, 242, 245, 246 Bolt, disk wheel to wheel hub or flange	*BA40.10-P-1001-01K
		Model 169 Bolt, disk wheel to wheel hub or flange	*BA40.10-P-1001-01H
8	Lower vehicle
9	Correct tire pressure of front and rear axle tires		AP40.15-P-4061A
		In the event of unusual tire pressure loss: ↓ Determine and rectify cause, subject to separate repair order.
10	Mount hubcaps	Vehicles with hubcaps Check for correct positioning of hubcap to valve and for correct seating. Otherwise the valve will be damaged or the hubcap will be lost.
11.1	Activate the tire pressure monitoring system	Model 117, 156, 176, 242, 246 with code 475 (Tire pressure monitoring system)
			AR54.30-P-1001-01RAE
		Only for wheel-and-tire assembly change, tire replacement or a change in tire pressure.
11.2	Activate tire pressure loss warning	Model 169, 245 with code 477 (Tire pressure loss warning system)
			AR54.30-P-1000-02RAA
		Only for wheel-and-tire assembly change, tire replacement or a change in tire pressure.
