Lift/jack up vehicle - AR00.60-P-1000AK

MODEL 117, 156, 169.0/3, 176, 242, 245.2, 246

Shown on model 169.0

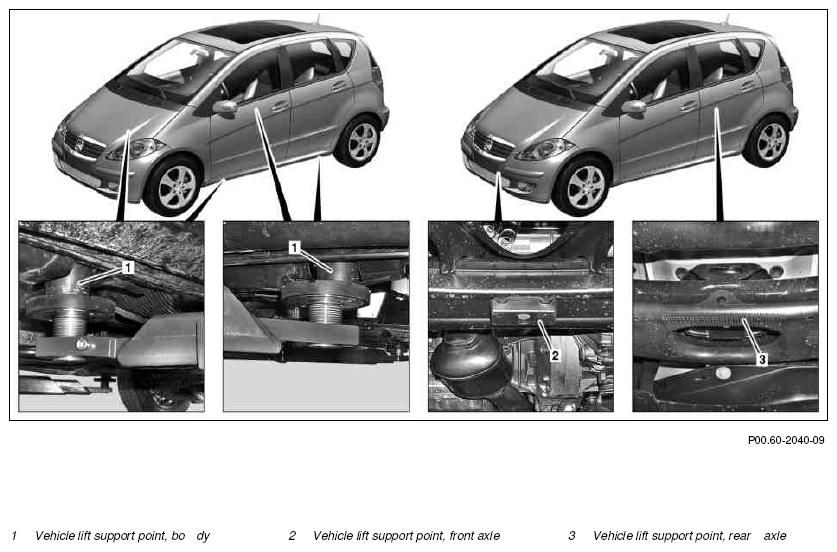

Fig 1: Identifying Vehicle Lift Support Points - Shown On Model 169.0

G10238227

Courtesy of MERCEDES-BENZ USA

	Lift/lower vehicle
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of accident caused by vehicle starting off on its own when jacked up. Risk of injury caused by rotating parts when working on running engine or drive train.	Ensure that jack stands are in a safe condition. An authorized person must occupy the driver's seat. Wear closed and close-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0008-01A
1	Align vehicle between vehicle lift columns and position the four support plates at the body vehicle lift support points (1)
2	Adapt the support plates of the vehicle lift swivel arms to the height of the vehicle	Turn support plates until they make contact with the body vehicle lift support points (1).
3	Secure the vehicle against tilting and toppling	Model 169.0/3, 245.2	AR00.60-P-0100AK
3	Secure the vehicle against tilting and toppling	Model 117, 156, 176, 242, 246 For example, when removing major assemblies (engine, front axle carrier, axles) or when performing work during which the vehicle can lose its hold on the vehicle lift support plates.	AR00.60-P-0100CW
4	Raise vehicle with vehicle lift	Two-column lift 2.5 - 3.5 t electrohydraulic
5	Lower vehicle in reverse order
	Jack up/lower vehicle
6	Lift vehicle with pit lift or floor jack
	000 588 05 80 00 Pit lift		WS00.00-P-0248B
		Only position post of pit lift or floor jack on front axle vehicle lift support point (2) or rear axle vehicle lift support point (3). Otherwise damage to axles, major assemblies or the body may occur.
7	Secure the vehicle against tilting and toppling	Place jack stands under the respective body vehicle lift support points (1).
8	Lower vehicle in reverse order
