Remove/install fender liner in rear fender - AR88.10-P-1400NKB

MODEL 117, 156, 176, 242, 246

Shown on MODEL 246

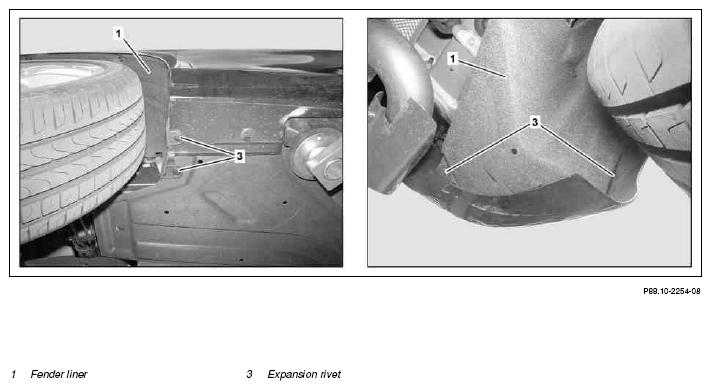

Fig 1: Identifying Rear Fender Liner Remove/Install Components - Shown On Model 246 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

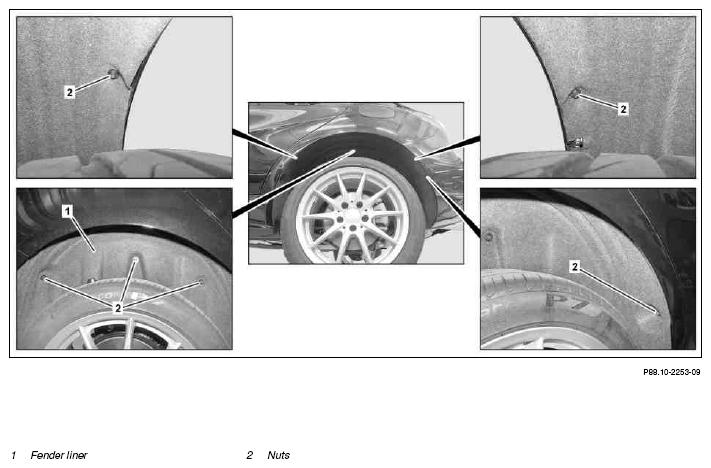

Fig 2: Identifying Rear Fender Liner Remove/Install Components - Shown On Model 246 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle with vehicle lift		AR00.60-P-1000AK
2	Unscrew nuts (2)
3	Remove expansion rivet (3)	On MODEL 117 two additional expansion rivets (3) are located on right and left in the area of bumper at the bottom.
4	Pull outer edge of fender liner (1) toward inside out of fender edge and remove fender liner (1) downward
5	Install in the reverse order
