Perform Diagnosis On Front Longitudinal Member After Accident - Ar60.00-S-1106EG
Model 447, 448 with engine 274
| Remove | |||
| 1 | Remove expansion reservoir | AR20.30-S-4950E | |
| 2 | Remove air filter housing | AR09.10-S-1150EG | |
| 3 | Drain coolant | AR20.00-S-1140E | |

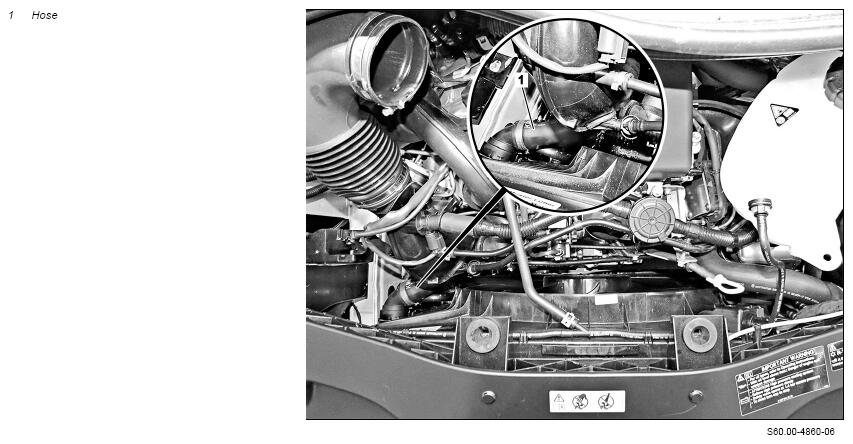

| 4 | Remove hose (1) | ||
| 5 | Remove charge air hose at engine charge air duct downstream of charge air cooler | AR09.41-S-8625EG | |

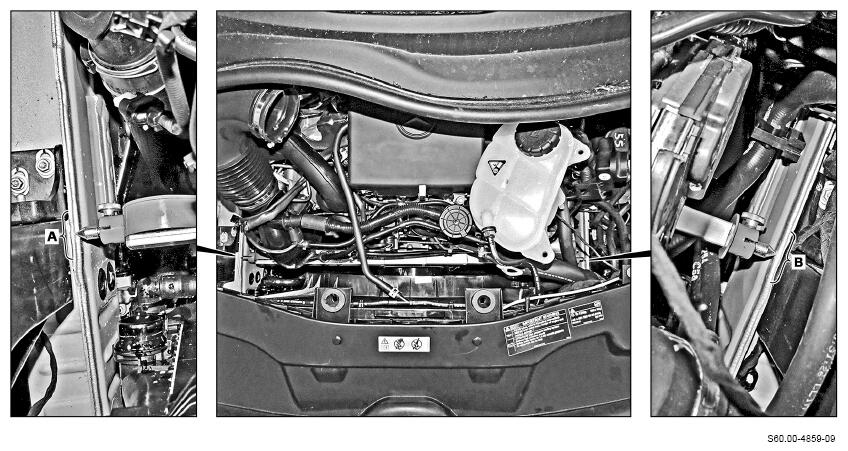

| 6 | Remove seam seal on inside of longitudinal members in areas A, B | ||
| Check | |||
| 7 | Check longitudinal member in areas X, Y on all sides for visible deformation | ||
| Measure | |||

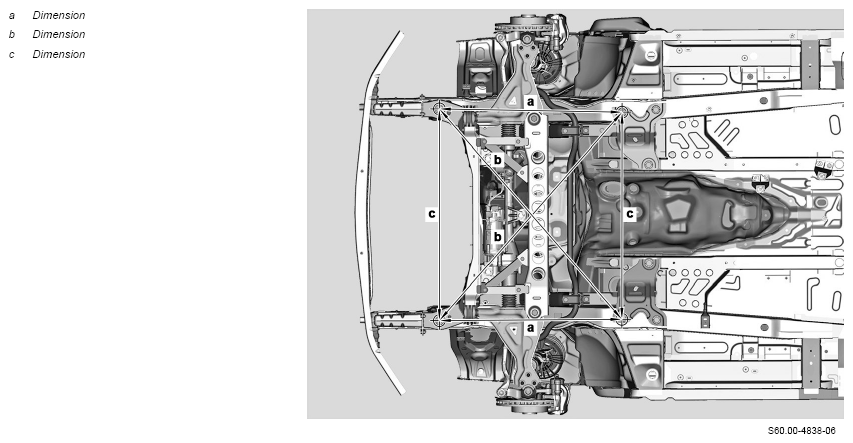

| 8 | Measure distance and compare at points of dimensions (a, b, c, d) | Dimension for right front longitudinal member to left front longitudinal member | *BE60.00-Z-1005-02KOE |
| Dimension for attachment point of right front integral carrier to attachment point of left front integral carrier | *BE60.00-Z-1004-02KOE | ||
| Dimension for attachment point of right front integral carrier to attachment point of left rear integral carrier | *BE60.00-Z-1003-02KOE | ||
| Dimension for attachment point of left front integral carrier to attachment point of right rear integral carrier | *BE60.00-Z-1002-02KOE | ||
| Dimension for attachment point of front integral carrier to attachment point of rear integral carrier | *BE60.00-Z-1001-02KOE | ||
| Fig 3 | |||
| Fig 4 | |||
| Fig 2 | |||
| Fig 1 | |||
| Install | |||
| 9 | Apply seam seal on inside of longitudinal members in areas A, B | AR97.10-S-4000E | |
| 10 | Remove charge air hose at engine charge air duct downstream of charge air cooler | AR09.41-S-8625EG | |
| 11 | Install hose (1) | ||
| 12 | Pour in coolant | AR20.00-S-1140E | |
| 13 | Install air filter housing | AR09.10-S-1150EG | |
| 14 | Attaching expansion reservoir | AR20.30-S-4950E |
CHECK VALUES FOR FRONT LONGITUDINAL MEMBER
| Number | Designation | Model 447, 448 | ||
|---|---|---|---|---|
| BE60.00-Z-1001-02KOE | Dimension for attachment point of front integral carrier to attachment point of rear integral carrier | Dimension a | mm | 817 (± 1, 5) |
CHECK VALUES FOR FRONT LONGITUDINAL MEMBER
| Number | Designation | Model 447, 448 | ||
|---|---|---|---|---|
| BE60.00-Z-1002-02KOE | Dimension for attachment point of left front integral carrier to attachment point of right rear integral carrier | Dimension b | mm | 1236 (± 1, 5) |
CHECK VALUES FOR FRONT LONGITUDINAL MEMBER
| Number | Designation | Model 447, 448 | ||
|---|---|---|---|---|
| BE60.00-Z-1003-02KOE | Dimension for attachment point of right front integral carrier to attachment point of left rear integral carrier | Dimension b | mm | 1236 (± 1, 5) |
CHECK VALUES FOR FRONT LONGITUDINAL MEMBER
| Number | Designation | Model 447, 448 | ||
|---|---|---|---|---|
| BE60.00-Z-1004-02KOE | Dimension for attachment point of right front integral carrier to attachment point of left front integral carrier | Dimension c | mm | 942, 5 (± 1, 5) |
CHECK VALUES FOR FRONT LONGITUDINAL MEMBER
| Number | Designation | Model 447, 448 | ||
|---|---|---|---|---|

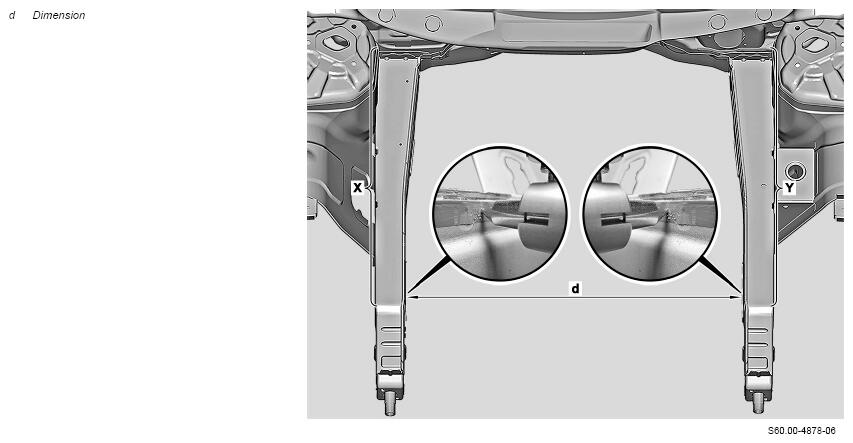

| BE60.00-Z-1005-02KOE | Dimension for right front longitudinal member to left front longitudinal member | Dimension d | mm | 877, 5 (± 1, 5) |
