Drain Coolant, Fill Up And Check Cooling System For Leaks - AR20.00-S-1140E

Model 447 with engine 274, 622.9, 651

Model 448 with engine 274

Shown with ENGINE 651

Courtesy of MERCEDES-BENZ USA

Shown with engine 622

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA
	Notes on coolant level		AH20.00-P-1142-01CW
	Drain off
1	Remove cap of the coolant expansion reservoir.	Turn cap of coolant expansion reservoir counterclockwise through half a revolution, release overpressure, and then remove cap.
2	Remove front lower engine compartment lining.		AR61.20-S-1105E

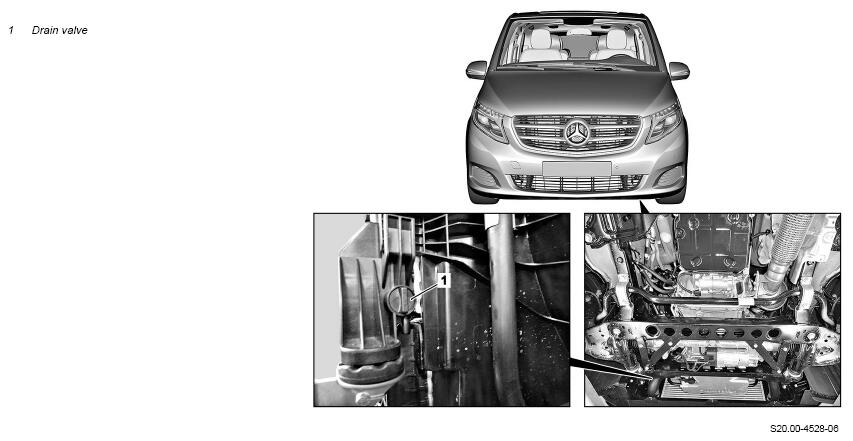

3	Attach drain hose to drain valve (1).	Model 447 with engine 274, 651 Model 448 with engine 274 Use drain hose of vacuum-type cooling system filler. Cooler vacuum filling device	Fig 2
	Drain off
4	Open drain valve (1) and drain off coolant.	Model 447 with engine 274, 651 Model 448 with engine 274 Cooler vacuum filling device	Fig 2
5	Close drain valve (1).	Model 447 with engine 274, 651 Model 448 with engine 274 Position suitable receptacle under coolant hose (3). Drain screw at cooler (reference value)	*BA20.20-Z-1001-01KOB
6	Remove drain hose.	Model 447 with engine 274, 651 Model 448 with engine 274

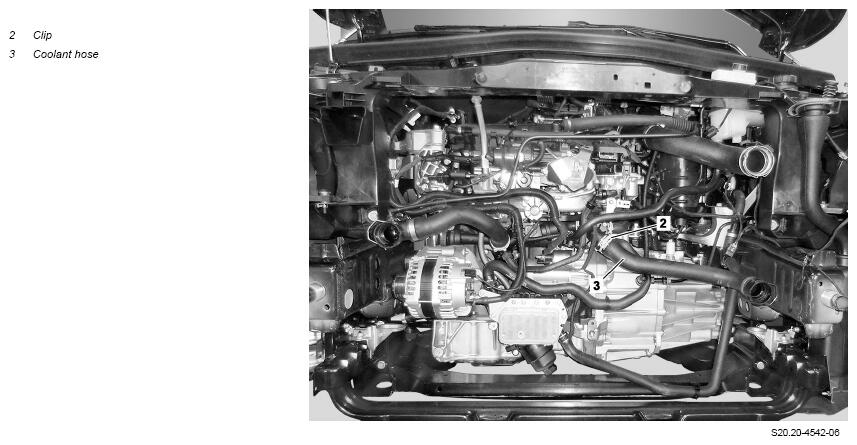

7	Clamp off coolant hose (3) on coolant thermostat housing.	Model 447 with engine 622.9 Commercially available devices/tools  Pinch-off pliers
8	Release clamp (2) and move.	Model 447 with engine 622.9 Commercially available devices/tools  Hose clamp pliers with wire cable
9	Remove coolant hose (3) from coolant thermostat housing.	Model 447 with engine 622.9 When doing so, catch coolant with suitable container.
10	Remove pinch-off pliers from coolant hose (3).	Model 447 with engine 622.9 When doing so, catch coolant with suitable container.
11	Attach coolant hose (3) to coolant thermostat housing.	Model 447 with engine 622.9 Commercially available devices/tools  Hose clamp pliers with wire cable Position clamp (2) correctly again. Check clamp (2) for damage. If damage is present: ↓ Replace clamp (2).
	Pour in
12	Pour in coolant and bleed engine cooling system.		AR20.00-S-1142-04E
	Service Information: Information on using coolant		SI20.00-Z-0017A
		Model 447, 448 with engine 274	*BF20.00-Z-1001-01KOK
		Coolant MODEL 447 with ENGINE 622, 651 Coolant	*BF20.00-Z-1001-01KOA
		Test cap	Fig 1
		Cooler vacuum filling device	Fig 2
	Check
13	Check engine cooling system for leak tightness.		AR20.00-S-1010E

Fig 1: Identifying Test Cap (210 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Cooler Vacuum Filling Device (285 589 00 21 00)

Courtesy of MERCEDES-BENZ USA
