Remove/Install Expansion Reservoir - AR20.30-S-4950E

Model 447 with engine 274, 622, 651

Model 448 with engine 274

Shown with ENGINE 651

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA
	Notes on coolant level		AH20.00-P-1142-01CW
	Remove/install

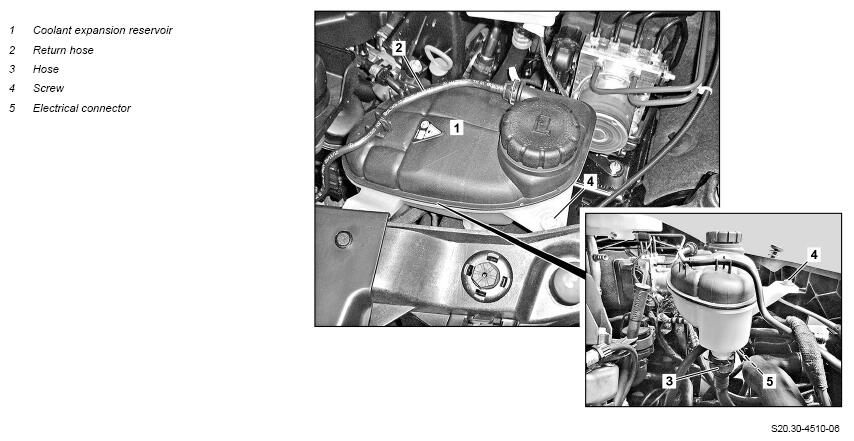

1	Remove cap at coolant expansion reservoir (1).	Turn cap of coolant expansion reservoir (1) by half a turn counterclockwise, release overpressure, then remove cap. Only install cap after engine cooling system leak test.
2	Suction off coolant from coolant expansion reservoir (1).
	Coolant changed	Model 447.### ## as of 001495 with engine 274, 622, 651	BT20.00-S-0001-01A
		Engines 622, 651 Coolant	*BF20.00-Z-1001-01KOA
		ENGINE 274 Coolant	*BF20.00-Z-1001-01KOK
		Hand pump	Fig 1
3	Remove return hose (2).	To do this unfasten safety clip and detach return hose (2). Moisten sealing ring of return hose (2) with lubricant. Check sealing ring for damage.
		Lubricant, rubber assembly 1 L If damage is present: ↓ Replace sealing ring.	*BR00.45-Z-1010-06A
4	Remove hose (3).	ENGINE 274 To do this, unfasten clamp and remove hose (3). Engines 622, 651 To do this, unfasten safety clip and remove hose (3). Check clamp for damage. If damage is present: ↓ Replace clamp.
5	Disconnect electrical connector (5).
6	Remove coolant expansion reservoir (1).	For this purpose, unscrew screws (4) and remove coolant expansion reservoir (1) upwards.
7	Install in the reverse order.
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
8	Purge engine cooling system.		AR20.00-S-1142-06E
	Coolant changed	Model 447.### ## as of 001495 with engine 274, 622, 651	BT20.00-S-0001-01A
	Check
9	Check engine cooling system for leak tightness.		AR20.00-S-1010E

Fig 1: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA
