Remove/Install Charge Air Hose Downstream Of The Charge Air Cooler - AR09.41-S-8625EG
Model 447 with engine 274
Model 448 with engine 274
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove lower engine compartment paneling | AR61.20-S-1105E | |

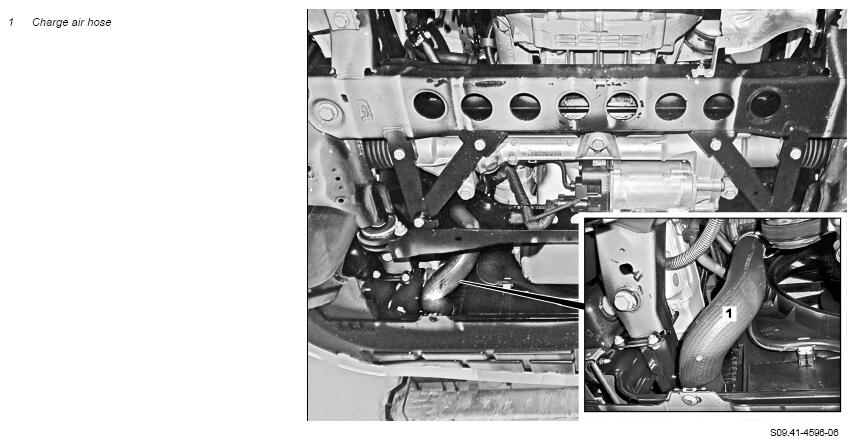

| 2 | Remove charge air hose (1) from charge air cooler | AR09.41-D-1311-01WE | |
| 3 | Remove charge air hose (1) from engine charge air duct downstream of charge air cooler | AR09.41-D-1311-01WE | |
| 4 | Remove charge air hose (1) | ||
| Check | |||
| 5 | Check sealing rings of charge air hose (1); replace as required | ||
| 6 | Install in the reverse order |
