Remove/Install End Cover At Differential - AR35.31-P-0554LW
Model 205 (except 205.386/387/486/487), 253 (except 253.388/389/988/989/992/993)
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Remove exhaust system from rear flange connection onwards | Model 205 with engine 654 | AR49.10-P-4952OLI |
| Model 205 with engine 274, 276 | AR49.10-P-4952LW | ||
| Model 205 with engine 626 | AR49.10-P-4952ORB | ||
| Model 205 (except 205.386/387/486/487) with engine 177 | AR49.10-P-4952MNA | ||
| Model 205 with engine 651 | AR49.10-P-7100LWB | ||
| Model 253 with engine 274.9, 276.8, 642, 651.9 | AR49.10-P-4952RF | ||
| 2 | Drain rear axle gear oil | AR35.31-P-0523LW | |
| 3 | Unscrew bolts from heat sink and remove heat sink | Model 205 (except 205.386/387/486/487) with engine 177 | |
| BA35.31-P-1004-02H | |||
| 4 | Remove differential lock actuator motor electrical connector | Model 205 (except 205.386/387/486/487) with engine 177 | |
| 5 | Support rear axle differential (50) and lash down securely | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 6 | Remove bolt (3) | *BA35.10-P-1006-01H | |
| 7 | Remove bolt (5) | *BA35.10-P-1005-01H | |
| 8 | Lower rear axle differential (50) until bolts (52s) are accessible | Do not lower the rear axle differential (50) too far. Otherwise the drive shafts (37) will be damaged. |
|
| 9 | Remove spacer ring (9) | ||
| 10 | Remove bolts (52s) and take off end cover (52) | Carefully release the end cover (52) e.g. using a screwdriver or assembly lever. Do not damage sealing surfaces. Otherwise, leaks may occur. |
|
| *BA35.31-P-1001-02H | |||
| 11 | Clean sealing surfaces on rear axle differential (50) and on end cover (52) | Assembly cleaner | *BR00.45-Z-1028-04A |
| 12 | Apply sealing compound to sealing surface on end cover (52) | Sealant, Loctite 5970, 50 ml | *BR00.45-Z-1013-01A |

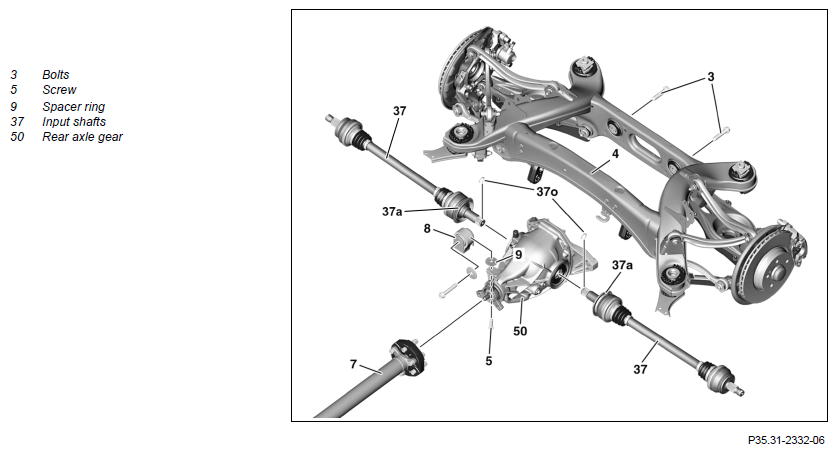

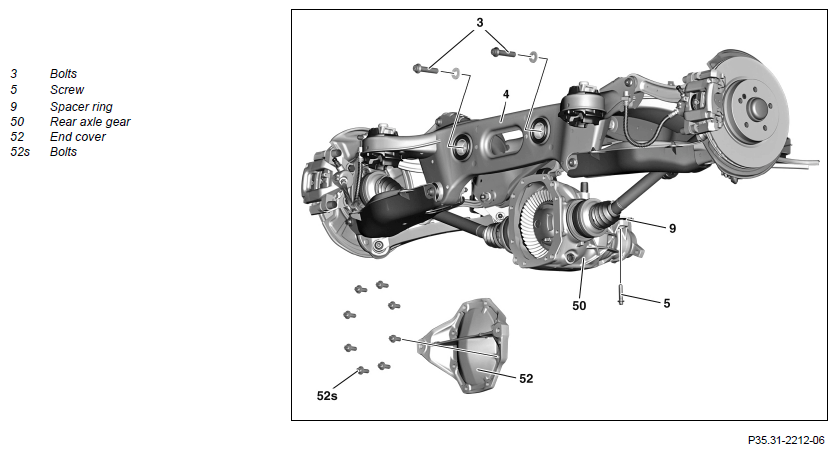

| Fig 1 | |||
| 13 | Install in the reverse order | ||
| 14 | Check rear axle differential (50) for leak tightness |
REAR AXLE CARRIER
| Number | Designation | Model 205 | Model 253 | |||
|---|---|---|---|---|---|---|
| BA35.10-P-1005-01H | Rear axle differential to front adapter | Rear axle differential (steel) | Nm | 65 | 65 | |
| Rear axle differential (aluminum) | Stage 1 | Nm | 40 | 40 | ||
| Stage 2 | ∠° | 45 | 45 | |||
REAR AXLE CARRIER
| Number | Designation | Model 205 | Model 253 | |
|---|---|---|---|---|
| BA35.10-P-1006-01H | Bolt, rear axle differential to rear transverse bridge | Nm | 170 | 170 |
REAR AXLE DIFFERENTIAL HOUSING
| Number | Designation | Model 205 | Model 253 | ||
|---|---|---|---|---|---|
| BA35.31-P-1001-02H | Bolt, end cover to rear axle differential | Stage 1 | Nm | 30 | 30 |
| Stage 2 | ∠° | 45 | 45 | ||
REAR AXLE DIFFERENTIAL HOUSING
| Number | Designation | Model 205 | |
|---|---|---|---|
| BA35.31-P-1004-02H | Bolt, heat sink to end cover | Nm | 35 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1013-01A | Sealant, Loctite 5970, 50 ml | A 003 989 98 20 10 |
| BR00.45-Z-1028-04A | Assembly cleaner | Adolf Wurth GmbH & Co. KG |
