Remove/Install Inserted Rear Axle Shaft - AR35.30-P-0621LW

Model 205 (except 205.386/387/486/487), 253 (except 253.388/389/988/989/992/993)

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A

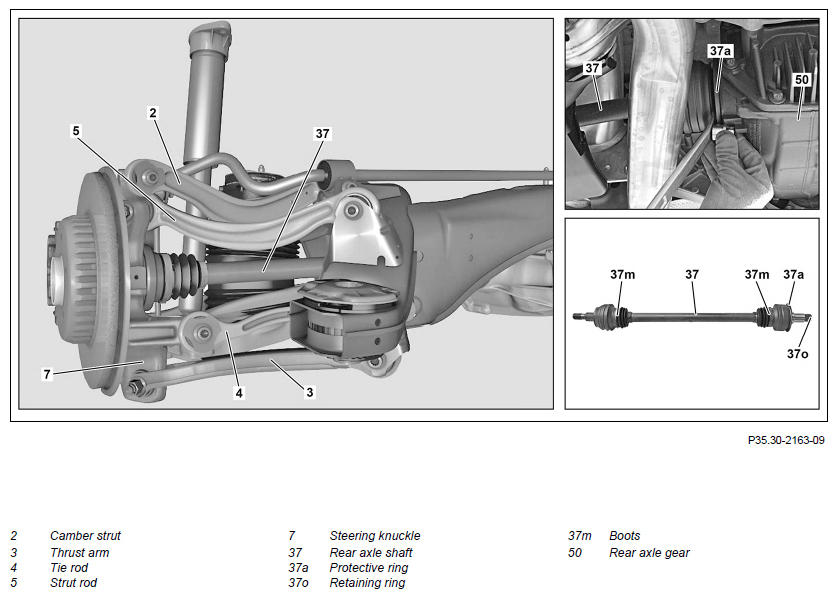

	Remove/install
1	Secure vehicle on vehicle lift		AR00.60-P-0100CW
2	Remove corresponding complete rear wheel		AR40.10-P-1102A
3	Remove collar nut from rear axle shaft (37)	: Replace collar nut and secure after tightening.
		Nut, rear axle shaft to wheel bearing	*BA35.30-P-1001-01N
4	Remove plastic cover from spring link
5	Lift up steering knuckle (7) using major assembly mount until the rear axle shaft (37) is almost horizontal
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
		: Tighten the threaded connection of the strut rod (5), camber strut (2), thrust arm (3) and tie rod (4).
		Self-locking nut, tie rod to rear axle carrier	*BA35.20-P-1002-04M
		Bolt, thrust arm to wheel carrier	*BA35.20-P-1002-05J
		Bolt, camber strut to wheel carrier	*BA35.20-P-1002-02L
		Bolt, strut rod to wheel carrier	*BA35.20-P-1002-03L
6	Remove camber strut (2) from steering knuckle (7)	: Screw on bolted connection loosely.
7	Remove thrust arm (3) from steering knuckle (7)	: Screw on bolted connection loosely.
8	Remove tie rod (4) from steering knuckle (7)	: Screw on bolted connection loosely.
9	Remove strut rod (5) from steering knuckle (7)	: Screw on bolted connection loosely.
10	Unclip electrical line of RPM sensor from bracket on steering knuckle (7) and from bracket on wheel arch
11	Unlock and disconnect electrical connector from actuator motor of electric parking brake and create access to electrical line		AR42.20-P-0600LW
12	Unclip electrical line of rear axle damping valve unit from bracket on steering knuckle (7) and from bracket on wheel arch	Model 205 (except 205.386/387/486/487), 253 (except 253.388/389/988/989/992/993) with code 489 (AIRMATIC)
13	Lower steering knuckle (7)	: Lift up steering knuckle (7) until rear axle shaft (37) is almost horizontal.
14	Fold down steering knuckle (7) and pull rear axle shaft (37) out of rear axle shaft flange	If the rear axle shaft (37) is difficult to remove ↓ Press rear axle shaft (37) out of rear axle shaft flange.
			AR35.30-P-0115-03LF
		Extraction and insertion tool	Fig 1
		Bracket	Fig 2
15	Pry rear axle shaft (37) out of rear axle differential (50)	Do not rest the assembly lever on the protective ring (37a). Support assembly lever, e.g. using socket wrench on rear axle differential (50).
16	Take out rear axle shaft (37)	: Replace locking ring (37o) on inner spline profile.
	Check
17	Check constant velocity joints	With axial or radial play ↓ Replace rear axle shaft (37).
18	Check boots (37m)	If leaky or damaged ↓ Replace the boot (37m) concerned.
			AR35.30-P-0662-01LW
		Filling capacity for joint housing	*BF35.30-P-1001-01G
19	Check side radial shaft sealing ring in rear axle differential (50)	If leaky or damaged ↓ Replace side radial shaft sealing ring on rear axle differential (50).
			AR35.31-P-0545LW
20	Install in the reverse order
21	Check oil level in rear axle differential (50) and correct, if necessary		AR35.31-P-0520-03LW
		Model 253 (except 253.388/389/988/989/992/993) except code 700 (Technology Local Content China) Filling capacity	*BF35.31-P-1001-02B
		Model 253 (except 253.388/389/988/989/992/993) with code 700 (Technology Local Content China) Filling capacity	*BF35.31-P-1002-02B
		Model 205.086/087/286/287 Filling capacity for rear axle differential with differential lock	BF35.31-P-1003-01U
		Model 205 (except 205.086/087/286/287/386/387/486/487) except code 700 (Technology Local Content China) ALU rear axle differential filling capacity	BF35.31-P-1002-01U
		Model 205 (except 205.086/087/286/287/386/387/486/487) except code 700 (Technology Local Content China) FE rear axle differential filling capacity	BF35.31-P-1001-01U
		Model 205 (except 205.086/087/286/287/386/387/486/487) with code 700 (Technology Local Content China) Filling capacity	BF35.31-P-1004-01U
		Oil filler screw of rear axle differential	*BA35.31-P-1002-02H
		Sealant, Omnifit 100H (50 g)	*BR00.45-Z-1061-01A
		Loctite 7063 cleaning spray (150 ml)	*BR00.45-Z-1046-04A
22	Perform wheel alignment check		AR40.20-P-0200LW

CAMBER STRUT

Number	Designation			Model 205	Model 253
BA35.20-P-1002-02L	Bolt, camber strut to wheel carrier	Stage 1	Nm	50	50
BA35.20-P-1002-02L	Bolt, camber strut to wheel carrier	Stage 2	∠°	90	90

STRUT ROD

Number	Designation				Model 205	Model 253
BA35.20-P-1002-03L	Bolt, strut rod to wheel carrier	M12	Stage 1	Nm	50	50
BA35.20-P-1002-03L	Bolt, strut rod to wheel carrier	M12	Stage 2	∠°	90	90

TIE ROD

Number	Designation				Model 205	Model 253
BA35.20-P-1002-04M	Self-locking nut, tie rod to rear axle carrier	When removing the tie rod	Stage 1	Nm	50	50
		When removing the tie rod	Stage 2	∠°	90	90
		When adjusting the toe		Nm	110	110

THRUST ARM

Number	Designation			Model 205	Model 253
BA35.20-P-1002-05J	Bolt, thrust arm to wheel carrier	Stage 1	Nm	50	50
BA35.20-P-1002-05J	Bolt, thrust arm to wheel carrier	Stage 2	∠°	90	90

REAR AXLE SHAFT

Number	Designation		Model 205	Model 253
BA35.30-P-1001-01N	Nut, rear axle shaft to wheel bearing	Nm	350	350

REAR AXLE DIFFERENTIAL HOUSING

Number	Designation		Model 205	Model 253
BA35.31-P-1002-02H	Oil filler screw of rear axle differential	Nm	50	50

REAR AXLE SHAFT, PLUGGED IN SHAFTS

Number	Designation			Model 205 Plugged in shafts	Model 253 Plugged in shafts
BF35.30-P-1001-01G	Filling capacity for joint housing	Ø82	g	80	80
		Ø95	g	100	100
		Ø102	g	120	120
		Ø106	g	130	130
		Ø112	g	140	140
		Ø116	g	150	150

REAR AXLE GEAR

Number	Designation			Model 205 (except 205.086/087/286/287/386/387/486/487) except code 700 (Technology Local Content China)
BF35.31-P-1001-01U	FE rear axle differential filling capacity	FE HAG187	Liter	0, 85
		Specification		BB00.40-P-0235-07A
		FE HAG200	Liter	1, 0
		Specification		BB00.40-P-0235-07A
		FE HAG215	Liter	1, 1
		Specification		BB00.40-P-0235-07A
		FE HAG225	Liter	1, 3
		Specification		BB00.40-P-0235-07A

REAR AXLE GEAR

Number	Designation				Model 253 (except 253.388/389/988/989/992/993) except code 700 (Technology Local Content China)
BF35.31-P-1001-02B	Filling capacity	ALU rear axle differential 183		Liter	0, 8
		ALU rear axle differential 183	Specification		BB00.40-P-0239-71A
		ALU rear axle differential 197		Liter	0, 9
		ALU rear axle differential 197	Specification		BB00.40-P-0239-71A
		ALU HAG205		Liter	1, 0
		ALU HAG205	Specification		BB00.40-P-0239-71A

REAR AXLE GEAR

Number	Designation		Model 205 (except 205.086/087/286/287/386/387/486/487) except code 700 (Technology Local Content China)
BF35.31-P-1002-01U	ALU rear axle differential filling capacity	ALU HAG183	0, 8
BF35.31-P-1002-01U	ALU rear axle differential filling capacity	Specification	BB00.40-P-0239-71A

REAR AXLE GEAR

Number	Designation				Model 253 (except 253.388/389/988/989/992/993) with code 700 (Technology Local Content China)
BF35.31-P-1002-02B	Filling capacity	Rear axle differential 200 C		Liter	1, 0
BF35.31-P-1002-02B	Filling capacity	Rear axle differential 200 C	Specification		BB00.40-P-0235-07A

REAR AXLE GEAR

Number	Designation		Model 205.086/087/286/287/386/387/486/487
BF35.31-P-1003-01U	Filling capacity for rear axle differential with differential lock	Liter	1, 2
BF35.31-P-1003-01U	Specification		BB00.40-P-0235-61A

REAR AXLE GEAR

Number	Designation		Model 205 (except 205.086/087/286/287/386/387/486/487) with code 700 (Technology Local Content China)
BF35.31-P-1004-01U	Filling capacity	Rear axle differential 200 C	1, 0
		Overview of specified transmission oils	BB00.40-P-0231-01A
		References, approved axle gear oils	BB00.40-P-0235A

Fig 1: Identifying Extraction And Insertion Tool (210 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Bracket (210 589 01 40 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1046-04A	Loctite 7063 cleaning spray (150 ml)	A 001 986 71 71 10
BR00.45-Z-1061-01A	Sealant, Omnifit 100H (50 g)	A 002 989 23 71
