Correct Articulation Angle Of Propeller Shaft - AR41.10-P-0090LWX
Model 253
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | ||
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | |||
| Notes on measuring the drive shaft articulation angle | AH41.10-P-0002-01LF | |||
| Correct | ||||
| 1 | Lift vehicle on vehicle lift | AR00.60-P-1002LWG | ||

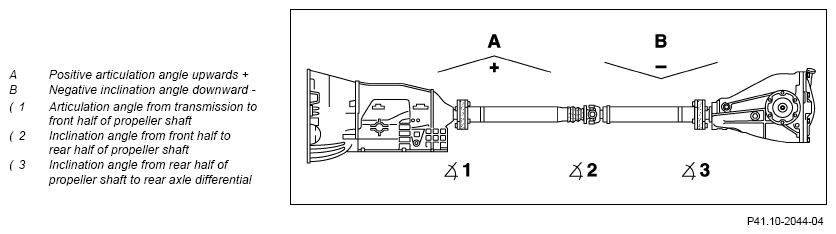

| Correct articulation angle from transmission to front half of propeller shaft (∠ 1): |
||||
| 2 | Remove center and rear sections of lower engine compartment lining | AR61.20-P-1105LW | ||
| 3 | Correct articulation angle from transmission to front half of propeller shaft (∠ 1) at transmission | AR41.10-P-0086-03LW | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | |||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | |||
| *BA22.10-P-1004-03M | ||||
| *BA22.10-P-1005-03M | ||||
| Front inclination angle of transmission relative to front propeller shaft (∠1) | *BE41.10-P-1001-01G | |||
| 4 | Carry out check measurement | AR41.10-P-0086LW | ||
| Correct articulation angle from front half to rear half of propeller shaft (∠ 2): |
||||
| 5 | Support propeller shaft using mounting plate and major assembly mount | |||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | |||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | |||
| 6 | Remove heat shield over propeller shaft intermediate bearing | |||
| 7 | Correct articulation angle (∠ 2) on propeller shaft center support bearing | AR41.10-P-0086-04LW | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | |||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | |||
| *BA41.40-P-1001-01H | ||||
| Inclination angle of front propeller shaft relative to rear propeller shaft (∠ 2) | *BE41.10-P-1002-01G | |||
| 8 | Install heat shield over propeller shaft intermediate bearing | |||
| 9 | Remove support plate and major assembly mount | |||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | |||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | |||
| 10 | Carry out check measurement | AR41.10-P-0086LW | ||
| Correct articulation angle from rear half of propeller shaft to rear axle differential (∠ 3): |
||||
| 11 | Correct articulation angle (∠3) on rear axle differential | Model 253 (except 253.388/389/988/989) | AR41.10-P-0086-05LW | |
| Model 253.388/389/988/989 | AR41.10-P-0086-12MNA | |||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | |||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | |||
| *BA35.10-P-1006-01H | ||||
| *BA35.10-P-1005-01H | ||||
| Rear inclination angle of rear propeller shaft relative to rear axle differential ∠(3) | *BE41.10-P-1003-01G | |||
| 12 | Carry out check measurement | AR41.10-P-0086LW | ||
CHECK VALUES FOR PROPELLER SHAFT ARTICULATION ANGLE
| Number | Designation | Model 253 |
|---|---|---|
| BE41.10-P-1001-01G | Front inclination angle of transmission relative to front propeller shaft (∠ ∠° 1) | +1, 00...+3, 00 |
CHECK VALUES FOR PROPELLER SHAFT ARTICULATION ANGLE
| Number | Designation | Model 253 |
|---|---|---|
| BE41.10-P-1002-01G | Inclination angle of front propeller shaft relative to rear propeller shaft (∠° ∠ 2) | -3, 00...-1, 00 |
CHECK VALUES FOR PROPELLER SHAFT ARTICULATION ANGLE
| Number | Designation | Model 253 | |
|---|---|---|---|
| BE41.10-P-1003-01G | Rear inclination angle of rear propeller shaft relative to rear axle differential (∠3) | ∠° | -1, 00...-0, 20 |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 253 (except 253.388/389/988/989/992/993) | Model 253.388/389/988/989 | ||
|---|---|---|---|---|---|
| BA22.10-P-1004-03M | Bolt, engine crossmember to rear engine mount | M6 | Nm | 18 | 18 |
| M8 | Nm | 30 | - | ||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 253.992/993 with engine 780 with code ME02 (Fuel cell) |
||
|---|---|---|---|---|
| BA22.10-P-1004-03M | Bolt, engine crossmember to rear engine mount | M6 | Nm | - |
| M8 | Nm | 30 | ||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 253 253.388/389/988/989/ | ||
|---|---|---|---|---|
| BA22.10-P-1005-03M | Bolt, engine crossmember to frame floor assembly | Stage 1 | Nm | 30 |
| Stage 2 | Nm | 50 | ||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 253.992/993 with engine 780 with code ME02 (Fuel cell) | ||
|---|---|---|---|---|
| BA22.10-P-1005-03M | Bolt, engine crossmember to frame floor assembly | Stage 1 | Nm | 30 |
| Stage 2 | Nm | 50 | ||
REAR AXLE CARRIER
| Number | Designation | Model 253 | |||
|---|---|---|---|---|---|
| BA35.10-P-1005-01H | Rear axle differential to front adapter | Rear axle differential (steel) | Nm | 65 | |
| Rear axle differential (aluminum) | Stage 1 | Nm | 40 | ||
| Stage 2 | ∠° | 45 | |||
REAR AXLE CARRIER
| Number | Designation | Model 253 | |
|---|---|---|---|
| BA35.10-P-1006-01H | Bolt, rear axle differential to rear transverse bridge | Nm | 170 |
PROPELLER SHAFT INTERMEDIATE BEARING
| Number | Designation | Model 253 | |
|---|---|---|---|
| BA41.40-P-1001-01H | Bolt, propeller shaft intermediate bearing to frame floor assembly | Nm | 25 |
