Measure Propeller Shaft Alignment With Electronic Propeller Shaft Inclinometer - AR41.10-P-0086LW
Model 238
Model 253
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on measuring the drive shaft articulation angle | AH41.10-P-0002-01LF | ||
| Remove | |||
| 1 | Remove center and rear section of lower engine compartment paneling | Model 213 Model 238 |
AR61.20-P-1105LWE |
| Model 205 Model 253 The articulation angle measurement must be performed on a measurement lift/pit. Otherwise the measurement results will be false. |
AR61.20-P-1105LW |
||
| 2 | Prepare articulation angle meter | AR41.10-P-0086-02LW | |
| 000 588 04 19 00 Articulation angle inclinometer | WS26.00-P-0140B | ||
| 3 | Check inclinometer and adjust if necessary | ||
| 4 | Measure angle at transmission | AR41.10-P-0085-01LW | |
| 5 | Measure angle on front and rear half of propeller shaft | AR41.10-P-0085-02LW | |
| 6 | Measure angle on housing of rear axle differential | AR41.10-P-0085-03LW | |
with code 990 (AMG vehicles) Bolt, heat sink to end cover |
*BA35.31-P-1004-02H | ||
| 7 | Read out all articulation angles (∠ 1, ∠ 2, ∠ 3) from memory of articulation angle meter and note down | AR41.10-P-0086-01LW | |
| Data Sheet for Measuring Inclination Angle, Form | OF41.10-P-3000-01A | ||

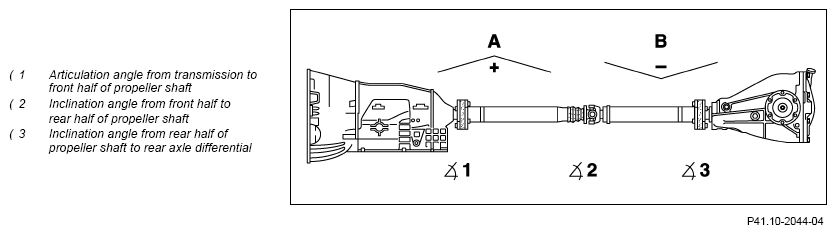

| Front inclination angle of transmission relative to front propeller shaft (∠ 1) | *BE41.10-P-1001-01G | ||
| Inclination angle of front propeller shaft relative to rear propeller shaft (∠2) | *BE41.10-P-1002-01G | ||
| Rear inclination angle of rear propeller shaft relative to rear axle differential (∠3) If inclination angles (∠ 1, ∠ 2, ∠ 3) are out of tolerance. ↓ Correct the articulation angles of the propeller shaft. |
*BE41.10-P-1003-01G | ||
| Model 205 | AR41.10-P-0090LW | ||
| Model 253 | AR41.10-P-0090LWX | ||
| Model 213, 238 | AR41.10-P-0090OLC | ||
| Install | |||
| 8 | Install center and rear sections of lower engine compartment paneling | Model 213 Model 238 |
AR61.20-P-1105LWE |
| Model 205 Model 253 |
AR61.20-P-1105LW |
CHECK VALUES FOR PROPELLER SHAFT ARTICULATION ANGLE
| Number | Designation | Model 238 | Model 253 |
|---|---|---|---|
| BE41.10-P-1001-01G | Front inclination angle of transmission relative to front propeller shaft (∠ ∠° 1) | -0, 50...+0, 67 | +1, 00...+3, 00 |
CHECK VALUES FOR PROPELLER SHAFT ARTICULATION ANGLE
| Number | Designation | Model 238 | Model 253 |
|---|---|---|---|
| BE41.10-P-1002-01G | Inclination angle of front propeller shaft relative to rear propeller shaft (∠° ∠2) | +0, 00...+1, 00 | -3, 00...-1, 00 |
CHECK VALUES FOR PROPELLER SHAFT ARTICULATION ANGLE
| Number | Designation | Model 238 | Model 253 | |
|---|---|---|---|---|
| BE41.10-P-1003-01G | Rear inclination angle of rear propeller shaft relative to rear axle differential (∠3) | ∠° | -1, 00...-0, 17 | -1, 00...-0, 20 |
REAR AXLE DIFFERENTIAL HOUSING
| Number | Designation | Model 253 | |
|---|---|---|---|
| BA35.31-P-1004-02H | Bolt, heat sink to end cover | Nm | 35 |
