Remove/Install Rear Axle Support - AR35.25-P-0660GWX
Model 463.234
up to model year 2019 with code ZQ0 (G 500 4x4 2 )
Model 463.255
up to model year 2019
with code MUK2 (USA or Canada vehicle model designation)
with code ZQ0 (G 500 4x4 2 )
Model 463.274
up to model year 2019
with code LQ0 (G650 Landaulet)

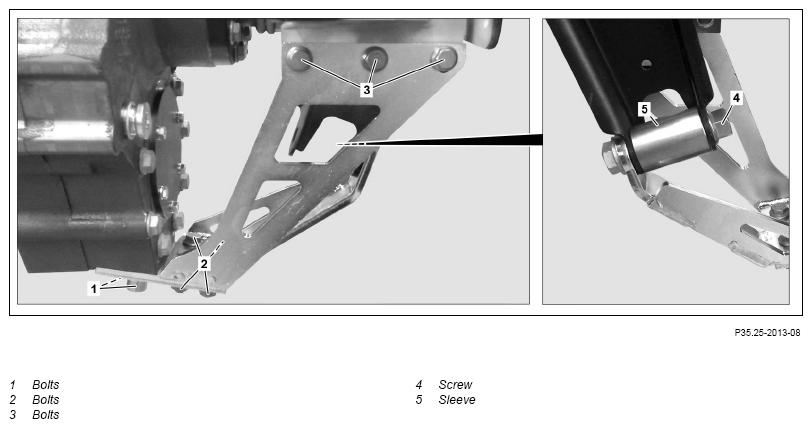

Fig 1: Rear Axle Support Components Location - Model 463.255 Up To Model Year 2019 With Codes ZQ0 & MUK2
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of death caused by vehicle slipping or | Align vehicle between vehicle lift columns and | AS00.00-Z-0010-01A | |
| toppling off of the lifting platform. | position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | ||
| Notes for repair work on hub reduction gear | Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x42 ) | AH33.25-P-0650-01GWX | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove | |||
| 1 | Remove left or right rear wheel and tire assembly. | AR40.10-P-1100GWX | |
| 2 | Support hub reduction gear. | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 3 | Unscrew screw/bolts (1). | ||
| 4 | Remove screws (2) and remove carrier plates. | ||
| 5 | Remove screw (4) and detach sleeve (5). | ||
| 6 | Remove screws (3) and remove front axle support. | ||
| Install | |||
| 7 | Position carrier plate and tighten screws (1) slightly by hand. | ||
| Loctite 243 | *BR00.45-Z-1066-01A | ||
| 8 | Position front axle support and tighten screws (2, 3) slightly by hand. | ||
| 9 | Tighten screws (1). | *BA35.30-P-1010-02A | |
| 10 | Tighten bolts (2, 3). | *BA35.30-P-1009-02A | |
| 11 | Position sleeve (5) and tighten screw (4). | *BA35.30-P-1011-02A | |
| 12 | Remove telescopic lifter. | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 13 | Install left or right rear wheel and tire assembly. | AR40.10-P-1100GWX | |
| 14 | Repair damaged or faulty preservation. | Wax for vehicle underside (1 l container) | *BR00.45-Z-1002-05A |
REAR AXLE DRIVE
| Number | Designation | Model 463 up to model year 2019 | |
|---|---|---|---|
| BA35.30-P-1009-02A | Screw, axle support to rear axle housing/carrier plate | Nm | 75 |
REAR AXLE DRIVE
| Number | Designation | Model 463 up to model year 2019 | |
|---|---|---|---|
| BA35.30-P-1010-02A | Bolt, carrier plate for axle support to portal drive | Nm | 92 |
REAR AXLE DRIVE
| Number | Designation | Model 463 up to model year 2019 | |
|---|---|---|---|
| BA35.30-P-1011-02A | Screw, shock absorber mount spacer sleeve | Nm | 160 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1002-05A | Wax for vehicle underside (1 l container) | A 000 986 42 70 10 |
| BR00.45-Z-1066-01A | Loctite 243 | A 613 989 09 71 09 |
