Remove/Install Complete Rear Axle - AR35.10-P-0010F

Model 460

Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/392)

Model 463 (except 463.270/271)

up to model year 2013

MODIFICATION NOTES

10.03.2020 Bolt, shock absorber to rear axle Model 460, model 461 with code XG0 (6200 kg permissible gross mass), model 463 up to model year 2019 BA32.25-P-1001-03E
10.03.2020 Bolt, shock absorber to rear axle Model 461 except code XG0 (6200 kg permissible gross mass) BA32.25-P-1001-03E

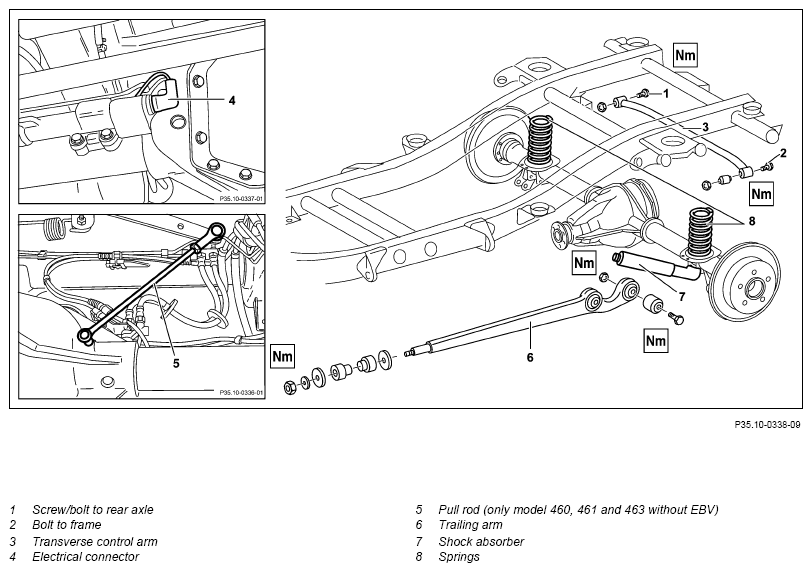

Shown on vehicle with disk brakes

G13667959Courtesy of MERCEDES-BENZ USA

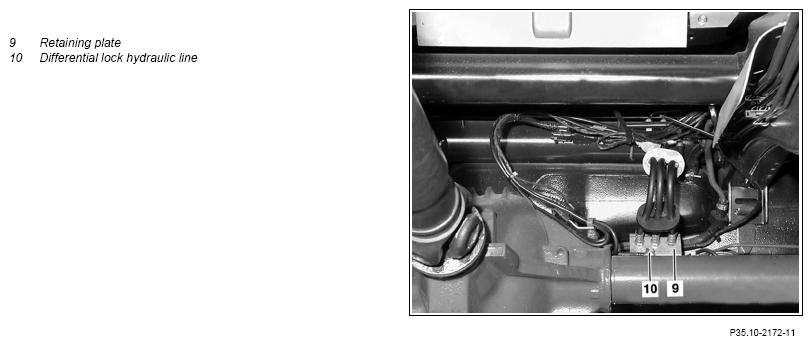

G13667960Courtesy of MERCEDES-BENZ USA
CAUTION Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
  Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. AS42.50-Z-0002-01A
  Brake fluid notes   AH42.50-P-0001-01A
  Notes on repairs to brake system   AH42.00-P-0003-01A
REMOVING Remove
1 Secure vehicle against rolling away and then raise Model 463 (except 463.270/271) as of model year 2010 up to model year 2013 AR00.60-P-1000G
2 Drain oil filling of differential into a suitable container If rear axle is to be disassembled.
3 Detach propeller shaft from differential and secure to frame
4 Detach damper (7) from rear axle
5.1 Loosen screw/bolt on rear axle (1) of transverse control arm (3) on frame Model 460 Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/392) Model 463 (except 463.202/222/236/237/243/244/245/246/247/248/249/250/254/270/271/303/306/309/322/323/332/333/336/340/341/346) up to model year 2013
5.2 Unscrew screw/bolt at rear axle (1) of transverse control arm (3) and remove transverse control arm (3) in downward direction Model 463.202/222/236/237/243/244/245/246/247/248/249/250/254/303/306/309/322/323/332/333/336/340/341/346 up to model year 2013
6 Loosen screw/bolt at frame (2) of transverse control arm (3) on axle Model 460 Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/392)
Model 463 (except 463.202/222/236/237/243/244/245/246/247/248/249/250/254/270/271/303/306/309/322/323/332/333/336/340/341/346) up to model year 2013
7 Unscrew brake lines IMPORTANT For model 463.202/222/236/237/243/244/245/246/247/248/249/250/254/303/306/309/322/323/332/333/336/340/341/346 there are three lines on the retaining plate (9).
8 Seal exposed connections using stop plugs NOTES Seal connections immediately with plugs. The brake fluid reservoir must not run empty. Otherwise difficulties may be encountered when bleeding. Dripping brake fluid causes paint damage.
    SPECIAL TOOL Record plug Fig 1
9.1 Unscrew hydraulic line for differential lock shift cylinder Model 460 Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/392)
Model 463 (except 463.202/222/236/237/243/244/245/246/247/248/249/250/254/270/271/303/306/309/322/323/332/333/336/340/341/346) up to model year 2013
9.2 Unscrew differential lock hydraulic line (10) and detach on axle side Model 463.202/222/236/237/243/244/245/246/247/248/249/250/254/303/306/309/322/323/332/333/336/340/341/346 up to model year 2013
10 Seal exposed connections using stop plugs SPECIAL TOOL Record plug Fig 1
11 Disconnect electrical connection (4) on differential lock shift cylinder
12 Remove RPM sensors of rear axle Model 463.202/222/237/244/250/303/340/341 as of model year 2000 up to model year 2013
Model 463.243/245/246/247/248/249/254/309/322/323/332/333 as of model year 2000 up to model year 2010 with disk brake		 AR42.30-P-0714AA
    Model 463.306/336/346 as of model year 2010 up to model year 2013 AR42.30-P-0714GY
    Model 463.232/233/308/330/331 with rear axle 742 up to model year 2000 with code B02 (Anti-lock braking system (ABS))
Model 463.240 with rear axle 741 up to model year 2001 with code B02 (Anti-lock braking system (ABS))
Model 463.241 with rear axle 741 (except 741.524) up to model year 2001 with code B02 (Anti-lock braking system (ABS)) except code 979 (Special protection MB Guard)
IMPORTANT Detach on body side.		 AR42.30-P-0714GH
13 Secure electrical wiring harness of rear axle RPM sensors on axle side Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/392) with code B02 (Anti-lock braking system (ABS))
Model 463 (except 463.270/271) up to model year 2013
14 Detach hand brake cables from parking brake lever and pull out through floor panel Model 460 Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/392) up to model year 2013
Model 463 (except 463.270/271) up to model year 2013		 AR42.20-P-0545GG
15 Release pull rod (5) of automatic load-dependent brake force control (ALB controller) and unhook Model 460 without electronic brake force distribution (EBD) Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/392) without electronic brake force distribution (EBD)
Model 463 (except 463.270/271) up to model year 2013without electronic brake force distribution (EBD)
16 Detach mounting clamps of hand brake cables on trailing arms (6)
17 Unscrew left and right trailing arms (6) on frame
18 Lower vehicle until springs (8) can be removed
REFER TO SPECIAL TOOLS 000 588 11 62 00 Major assembly mount   WS01.00-P-0092B
REFER TO SPECIAL TOOLS 000 588 10 62 00 Support plate   WS26.00-P-3309B
19 Remove screw/bolt from frame (2) on transverse control arm (3) Model 460 Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/392)
Model 463 (except 463.270/271) up to model year 2013
20 Move rear axle out to the rear
REFER TO SPECIAL TOOLS 000 588 11 62 00 Major assembly mount   WS01.00-P-0092B
REFER TO SPECIAL TOOLS 000 588 10 62 00 Support plate   WS26.00-P-3309B
21 Detach left and right trailing arm (6) from rear axle When replacing rear axle. Model 460 Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/346/392)
Model 463 (except 463.270/271) up to model year 2013		 AR35.20-P-0100F
INSTALLING Install
22 Mount left and right trailing arm (6) on rear axle Model 460 Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/346/392)
Model 463 (except 463.270/271) up to model year 2013		 AR35.20-P-0100F
    IMPORTANT Ensure correct seating of the elastomer bearing.
TORQUE SPECIFICATION Model 460 Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/392)
Model 463 (except 463.270/271) up to model year 2013
Nut/bolt, trailing arm to axle		 *BA35.15-P-1002-02A
23 Install rear axle from behind
REFER TO SPECIAL TOOLS 000 588 11 62 00 Major assembly mount   WS01.00-P-0092B
REFER TO SPECIAL TOOLS 000 588 10 62 00 Support plate IMPORTANT Two helpers required. WS26.00-P-3309B
24 Install springs (8)
25 Screw screw/bolt into frame (2) on transverse control arm (3) Model 460 Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/392)
Model 463 (except 463.270/271) up to model year 2013
IMPORTANT Do not yet tighten the screw/bolt on the frame (2).
26 Lower vehicle until trailing arm (6) can be inserted into frame
27 Install elastomer bearing of trailing arm (6) in frame and tighten nut TORQUE SPECIFICATION Model 460 Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/392)
Model 463 (except 463.270/271) up to model year 2013
Nut, trailing arm to frame		 *BA35.15-P-1001-02A
28 Mount hand brake cable at trailing arms (6)
29 Install shock absorbers (7) TORQUE SPECIFICATION Model 460 Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/392)
Model 463 (except 463.270/271) up to model year 2013
Bolt, shock absorber to rear axle		 *BA32.25-P-1001-03E
30 Tighten screw/bolt on rear axle (1) of transverse control arm (3) on frame TORQUE SPECIFICATION Model 460 Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/392)
Model 463 (except 463.270/271) up to model year 2013
Nut, transverse control arm to frame		 *BA35.15-P-1003-02A
31 Tighten screw/bolt at frame (2) of transverse control arm (3) on axle TORQUE SPECIFICATION Model 460 Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/392)
Model 463 (except 463.270/271) up to model year 2013
Nut, transverse control arm to axle		 *BA35.15-P-1004-02A
32 Remove stop plug and attach brake lines IMPORTANT For model 463.202/222/236/237/243/244/245/246/247/248/249/250/254/303/306/309/322/323/332/333/336/340/341/346 there are three lines on the retaining plate (9).
    TORQUE SPECIFICATION Brake line to brake hose *BA42.10-P-1001-04B
    SPECIAL TOOL Record plug Fig 1
33 Remove stop plug from hydraulic line SPECIAL TOOL Record plug Fig 1
34.1 Attach hydraulic line to differential lock shift cylinder Model 460 Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/392)
Model 463 (except 463.202/222/236/237/243/244/245/246/247/248/249/250/254/270/271/303/306/309/322/323/332/333/336/340/341/346) up to model year 2013
34.2 Attach differential lock hydraulic line (10) Model 463.202/222/236/237/243/244/245/246/247/248/249/250/254/303/306/309/322/323/332/333/336/340/341/346 up to model year 2013
35 Install RPM sensors of rear axle Model 463.202/222/237/244/250/303/340/341 as of model year 2000 up to model year 2013
Model 463.243/245/246/247/248/249/254/309/322/323/332/333 as of model year 2000 up to model year 2010 with disk brake		 AR42.30-P-0714AA
    Model 463.306/336/346 as of model year 2010 up to model year 2013 AR42.30-P-0714GY
    Model 463.232/233/308/330/331 with rear axle 742 up to model year 2000 with code B02 (Anti-lock braking system (ABS))
Model 463.240 with rear axle 741 up to model year 2001 with code B02 (Anti-lock braking system (ABS))
Model 463.241 with rear axle 741 (except 741.524) up to model year 2001 with code B02 (Anti-lock braking system (ABS)) except code 979 (Special protection MB Guard)		 AR42.30-P-0714GH
36 Connect electrical connection (4) to differential lock shift cylinder
37 Engage and secure pull rod (5) of ALB controller Model 460
without electronic brake force distribution Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/392)
without electronic brake force distribution
Model 463 (except 463.270/271) up to model year 2013without electronic brake force distribution
38 Install hand brake cable Model 460 Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/392)
Model 463 (except 463.270/271) up to model year 2013		 AR42.20-P-0545GG
39 Mount propeller shaft on differential IMPORTANT Use new self-locking nuts.
    TORQUE SPECIFICATION Bolt, propeller shaft to transmission flange *BA41.10-P-1002-01B
40 Fill rear axle with oil FLUID SPECIFICATION Model 460 as of 6/1/82 with rear axle 741.5 as of 6/1/82
Model 460 up to 5/31/82 with rear axle 741.5 up to 5/31/82
Model 461 (except 461. 302/304/331/332/333/334/342/344) with rear axle 742.6
Model 461 (except 461. 302/331/332/342) with rear axle 741.1
Model 463 (except 463.270/271) with rear axle 741.1 up to model year 2013
Model 463 (except 463.270/271) with rear axle 741.5 up to model year 2013
Model 463.20/22/23/24/25/274/3 with rear axle 742.6 up to model year 2013
Model 463.272/273 with rear axle 742.6 up to model year 2013
Hypoid gear oil		 *BF35.10-P-1001-01A
41 Bleed brake system Model 460
Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/392)
Model 463 (except 463.270/271) up to model year 2013 except code 979 (Special protection MB Guard)		 AR42.10-P-0010GG
    Model 463.236/248 up to model year 2013 with code 979 (Special protection MB Guard) AR42.10-P-0010GS
42 Check brake system for leaks
43 Bleed hydraulic system of differential lock Model 460 Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/392) Model 463 (except 463.270/271) up to model year 2013 AR33.40-P-0701GG
44 Adjust parking brake Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/392)
with disk brakes on the rear axle
Model 463 (except 463.270/271) up to model year 2013 with disk brakes on the rear axle		 AR42.20-P-0540GI
    Model 460 with drum brakes on the rear axle Model 461 (except 461. 302/304/305/331/332/333/334/340/342/343/344/392)
with drum brakes on the rear axle
Model 463 (except 463.270/271) up to model year 2013 with drum brakes on the rear axle		 AR42.20-P-0540GG
REAR AXLE SHOCK ABSORBER

Number Designation Model 460 Model 461 with code XG0 (Permissible gross weight 6200 kg) Model 463 up to model year 2019 Model 461 except code XG0 (Permissible gross weight 6200 kg)
BA32.25-P-1001-03E Bolt, shock absorber to rear axle M16x1.5 Nm 170 230
TRAILING ARMS, TRANSVERSE CONTROL ARMS

Number Designation Model 460 Model 461 Model 463 up to model year 2019
BA35.15-P-1001-02A Nut, trailing arm to frame Nm 130 130
TRAILING ARMS, TRANSVERSE CONTROL ARMS

Number Designation Model 460 Model 461 Model 463 up to model year 2019
BA35.15-P-1002-02A Nut/bolt, trailing arm to axle Nm 210 225
TRAILING ARMS, TRANSVERSE CONTROL ARMS

Number Designation Model 460 Model 461 Model 463 up to model year 2019
BA35.15-P-1003-02A Nut, transverse control arm to frame Nm 210 225
TRAILING ARMS, TRANSVERSE CONTROL ARMS

Number Designation Model 460 Model 461 Model 463 up to model year 2019
BA35.15-P-1004-02A Nut, transverse control arm to axle Nm 210 225
PROPELLER SHAFT

Number Designation Model 460 Model 461
BA41.10-P-1002-01B Bolt, propeller shaft to transmission flange Nm 35 35
PROPELLER SHAFT

Number Designation Model 463 up to model year 2019
BA41.10-P-1002-01B Bolt, propeller shaft to transmission flange Nm 35
BRAKE LINES, BRAKE HOSES

Number Designation Model 460 Model 461
BA42.10-P-1001-04B Brake line to brake hose Nm 15 15
BRAKE LINES, BRAKE HOSES

Number Designation Model 463 (except 463.236/248/270/271/272/273) up to model year 2019, Model 463.236/248 with code 979 up to model year 2019
BA42.10-P-1001-04B Brake line to brake hose Nm 15 15
BRAKE LINES, BRAKE HOSES

Number Designation Model 463.272/273 up to model year 2019
BA42.10-P-1001-04B Brake line to brake hose Nm 15
REAR AXLE

Number Designation Model 460 up to 5/31/82 with rear axle 741.5 up to 5/31/82 Model 461 (except 461. 339/392) up to 5/31/82 with rear axle 741.5 (except 741.534) up to 5/31/82 Model 460 as of 6/1/82 with rear axle 741.5 as of 6/1/82 Model 461 (except 461. 339/392) as of 6/1/82 with rear axle 741.5 (except 741.534) as of 6/1/82
BF35.10-P-1001-01A Hypoid gear oil Filling capacity Liter 1, 6 1, 8
- BB00.40-P-0235-00A BB00.40-P-0235-00A
REAR AXLE

Number Designation Model 461 with rear axle 741.1 Model 461 with rear axle 741.680 Model 461 with rear axle 742.6 Model 463 (except 463.234/243/246/25 5/260/261/270/271/2 72/273/274/275/276/277/349)
BF35.10-P-1001-01A Hypoid gear oil Filling capacity Liter 1, 8 1, 8
- BB00.40-P-0235-00A BB00.40-P-0235-00A
REAR AXLE

Number Designation Model 463.234/255 Model 463.243/246/270/271/272/273/275
BF35.10-P-1001-01A Hypoid gear oil Filling capacity Liter 1, 8 1, 8
- BB00.40-P-0235-00A BB00.40-P-0235-61A
REAR AXLE

Number Designation Model 463.274 Model 463.260/261/276/27 7/349
BF35.10-P-1001-01A Hypoid gear oil Filling capacity Liter 1, 8 1, 8
- BB00.40-P-0235-61A BB00.40-P-0235A
Fig 1: Identifying Record Plug (129 589 00 91 00)
G13667961Courtesy of MERCEDES-BENZ USA
