Disassemble, Assemble Rear Wheel Hub Reduction Gear - AR35.25-P-0650GWX

Model 463.234

up to model year 2019 with code ZQ0 (G 500 4x4 2  )

Model 463.255

up to model year 2019

with code MUK2 (USA or Canada vehicle model designation)

with code ZQ0 (G 500 4x4 2  )

Model 463.274

up to model year 2019

with code LQ0 (G650 Landaulet)

Shown on right side of vehicle

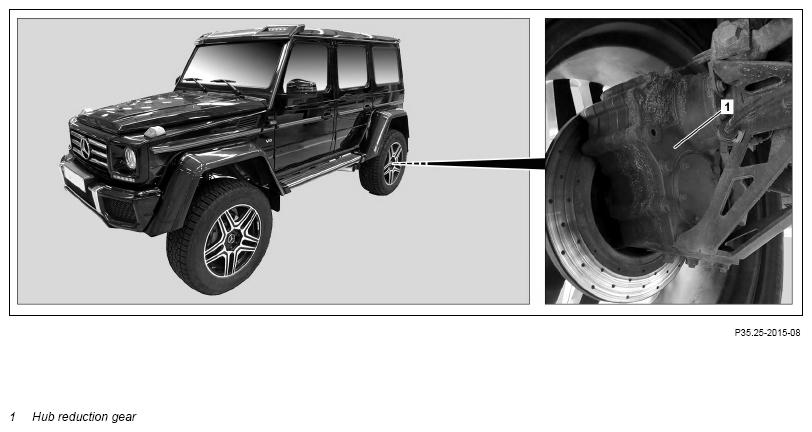

Fig 1: Rear Wheel Hub Reduction Gear Component Location - Model 463.255 Up To Model Year 2019 With Codes ZQ0 & MUK2 (Shown On Right Side Of Vehicle)
G13668056Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
WARNING Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
  Notes for repair work on hub reduction gear   AH33.25-P-0650-01GWX
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Notes on repair work on suspension components   AH00.00-P-0100-01A
DISASSEMBLING Disassemble
1 Remove left or right hub reduction gear (1) from rear axle.   AR35.25-P-0645GWX
2 Disassemble left or right hub reduction gear (1).   AR35.25-P-0650-01GWX
    SPECIAL TOOL Drift Fig 11
    SPECIAL TOOL Assembly tool Fig 12
    SPECIAL TOOL Blocking device Fig 9
    SPECIAL TOOL Removal tool Fig 2
    SPECIAL TOOL Blocking device Fig 14
    SPECIAL TOOL Drift Fig 17
    SPECIAL TOOL Drift Fig 15
    SPECIAL TOOL Internal extractor Fig 6
    SPECIAL TOOL Counter stay Fig 13
    SPECIAL TOOL Puller Fig 8
    SPECIAL TOOL Internal extractor Fig 5
CLEANING Clean
3 Clean all removed parts with suitable means.
4 Clean sealing and contact surfaces.   AR01.00-P-0050-01A
  Notes on application of flange sealants to seal major assemblies   AH00.00-P-0500-01MNE
    Loctite 7063 (400 ml) cleaning spray *BR00.45-Z-1046-04A
    Loctite 7200 *BR00.45-Z-1038-04A
INSPECT Check
5 Check oil holes for deposits. If deposits are present,
    ↓
    Clean oil holes.
6 Check all removed parts for damage and wear. If problems are found,
    ↓
    replace affected components.
    IMPORTANT Always replace shaft seals.
    IMPORTANT Always replace all sealing rings for filler and drain screws.
    IMPORTANT Always replace bearings or bearing shells after removal with the aid of tools. Always replace all bearings as a unit comprised, if applicable, of bearing shell and bearing cage with appropriate thrust plates or thrust pieces.
MEASURING Measure
7 Measure housing depths. If parts of the relay spur gear are replaced. AR35.25-P-0650-03GWX
    IMPORTANTCommercially available tools
Digital vernier caliper.
    LUKOIL TRANSMISSION MN TM-4/5 75W-90 *BR00.45-Z-1132-06A
ASSEMBLING Assemble
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
8 Disassemble left or right hub reduction gear IMPORTANTCommercially available devices/tools
Hot plate.		 AR35.25-P-0650-02GWX
    Heating oven.
    Screw press.
    Soft face hammer.
    TORQUE SPECIFICATION Screw, gearwheel to drive shaft *BA35.25-P-1007-02A
    TORQUE SPECIFICATION Hub reduction gear housing screws *BA35.25-P-1006-02A
    TORQUE SPECIFICATION Screw plug, wheel hub *BA35.25-P-1005-02A
    TORQUE SPECIFICATION Screw plug for screw of clamp nut on wheel hub *BA35.25-P-1004-02A
    TORQUE SPECIFICATION Screw, wheel hub cover to hub reduction gear housing *BA35.25-P-1008-02A
    TORQUE SPECIFICATION Bolt to clamping nut *BA35.25-P-1003-02A
    TORQUE SPECIFICATION Clamp nut to wheel hub *BA35.25-P-1002-02A
    TORQUE SPECIFICATION Preload, clamp nut to wheel hub *BA35.25-P-1001-02A
    TORQUE SPECIFICATION Drain screw at portal drive *BA35.30-P-1007-02A
    Loctite 7063 (400 ml) cleaning spray *BR00.45-Z-1046-04A
    Loctite 2701 *BR00.45-Z-1078-02A
    Surface sealant, green *BR00.45-Z-1129-01A
    Pipe sealant, medium strength *BR00.45-Z-1128-01A
    Loctite 243 *BR00.45-Z-1066-01A
    LUKOIL TRANSMISSION MN TM-4/5 75W-90 *BR00.45-Z-1132-06A
    MB multipurpose grease, 400 g *BR00.45-Z-1017-06A
    SPECIAL TOOL Drift Fig 17
    SPECIAL TOOL Assembly tool Fig 12
    SPECIAL TOOL Blocking device Fig 9
    SPECIAL TOOL Blocking device Fig 14
    SPECIAL TOOL Insertion tool Fig 16
    SPECIAL TOOL Drift Fig 15
    SPECIAL TOOL Sleeve Fig 10
    SPECIAL TOOL Sleeve Fig 7
    SPECIAL TOOL Drift punch Fig 4
    SPECIAL TOOL Drift Fig 3
9 Install left or right hub reduction gear (1) on rear axle.   AR35.25-P-0645GWX
REAR AXLE HUB DRIVE

Number Designation Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x42 ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x42 ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1001-02A Preload, clamp nut to wheel hub Nm 200
REAR AXLE HUB DRIVE

Number Designation Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x42 ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x42 ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1002-02A Clamp nut to wheel hub Nm 80
REAR AXLE HUB DRIVE

Number Designation Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x42 ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x42 ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1003-02A Bolt to clamping nut Nm 40
REAR AXLE HUB DRIVE

Number Designation Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x42 ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x42 ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1004-02A Screw plug for screw of clamp nut on wheel hub Nm 25
REAR AXLE HUB DRIVE

Number Designation Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x42 ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x42 ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1005-02A Screw plug, wheel hub Nm 40
REAR AXLE HUB DRIVE

Number Designation Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x42 ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x42 ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1006-02A Hub reduction gear housing screws Nm 75
REAR AXLE HUB DRIVE

Number Designation Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x42 ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x42 ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1007-02A Screw, gearwheel to drive shaft Nm 25
REAR AXLE HUB DRIVE

Number Designation Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x42 ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x42 ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1008-02A Screw, wheel hub cover to hub reduction gear housing Nm 10
REAR AXLE DRIVE

Number Designation Model 463 up to model year 2019
BA35.30-P-1007-02A Drain screw at portal drive Nm 120
Fig 2: Identifying Removal Tool (463 589 01 33 00)
G13668057Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Drift (715 589 00 15 00)
G13668058Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Drift Punch (742 589 01 15 00)
G13668059Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Internal Extractor (000 589 29 33 00)
G13668060Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Internal Extractor (000 589 30 33 00)
G13668061Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Sleeve (203 589 00 14 00)
G13668062Courtesy of MERCEDES-BENZ USA
Fig 8: Identifying Puller (001 589 19 33 00)
G13668063Courtesy of MERCEDES-BENZ USA
Fig 9: Identifying Blocking Device (463 589 01 40 00)
G13668064Courtesy of MERCEDES-BENZ USA
Fig 10: Identifying Sleeve (124 589 06 14 00)
G13668065Courtesy of MERCEDES-BENZ USA
Fig 11: Identifying Drift (631 589 01 35 00)
G13668066Courtesy of MERCEDES-BENZ USA
Fig 12: Identifying Assembly Tool (463 589 00 16 00)
G13668067Courtesy of MERCEDES-BENZ USA
Fig 13: Identifying Counter Stay (000 589 34 33 00)
G13668068Courtesy of MERCEDES-BENZ USA
Fig 14: Identifying Blocking Device (463 589 00 40 00)
G13668069Courtesy of MERCEDES-BENZ USA
Fig 15: Identifying Drift (164 589 00 15 00)
G13668070Courtesy of MERCEDES-BENZ USA
Fig 16: Identifying Insertion Tool (463 589 01 43 00)
G13668071Courtesy of MERCEDES-BENZ USA
Fig 17: Identifying Drift (395 589 04 15 00)
G13668072Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1017-06A MB multipurpose grease, 400 g A 001 989 34 51 11
BR00.45-Z-1038-04A Loctite 7200 Henkel AG & Co. KGaA
BR00.45-Z-1046-04A Loctite 7063 (400 ml) cleaning spray A 001 986 71 71 09
BR00.45-Z-1066-01A Loctite 243 A 613 989 09 71 09
BR00.45-Z-1078-02A Loctite 2701 Henkel AG & Co. KGaA
BR00.45-Z-1128-01A Pipe sealant, medium strength Adolf Wurth GmbH & Co. KG
BR00.45-Z-1129-01A Surface sealant, green Adolf Wurth GmbH & Co. KG
BR00.45-Z-1132-06A LUKOIL TRANSMISSION MN TM-4/5 75W-90 OOO LLK-International, Moscow, Russia
