Remove/Install Steering Knuckle - AR33.25-P-0400XG

Model 463

as of model year 2019

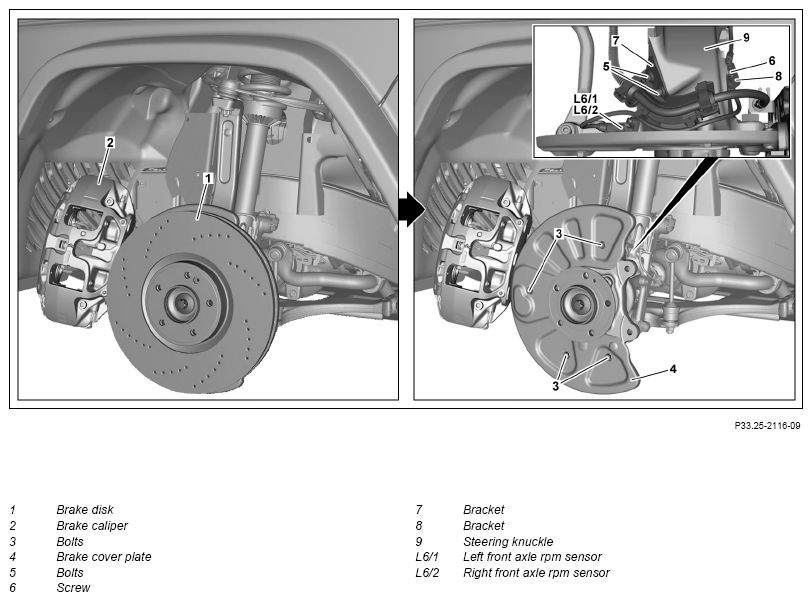

G13667586Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle

Shown on left side of vehicle

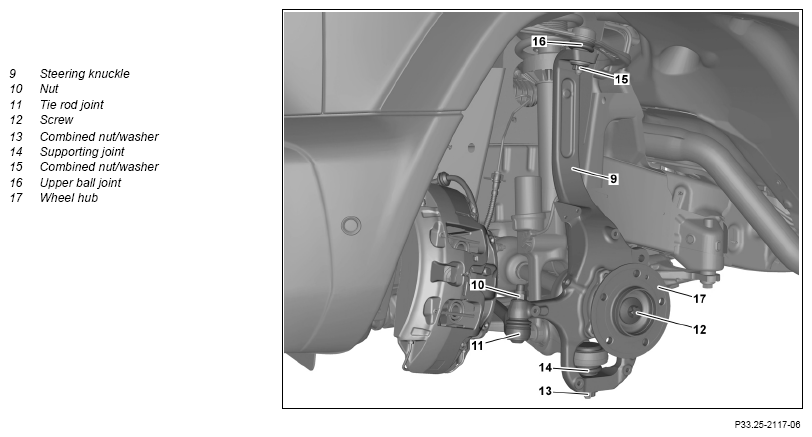

G13667587Courtesy of MERCEDES-BENZ USA
  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1 Lift the vehicle such that the wheel and tire assemblies on the front axle still have contact with the floor.   AR00.60-P-1006A
2 Loosen screw (12). IMPORTANT Do not remove the screw (12).
TORQUE SPECIFICATION Screw, wheel bearing to drive shaft
*BA33.30-P-1001-07E
3 Remove brake disk (1) from front axle on left or right.   AR42.10-P-0220XG
    IMPORTANT Fasten brake caliper (2) to vehicle free of tension with lines connected.
4 Remove screws (3) and remove brake cover plate (4).
5 Remove left front axle rpm sensor (L6/1) or right front axle rpm sensor (L6/2).   AR42.30-P-0712XG
6 Remove screws (5, 6) and detach brackets (7, 8) from steering knuckle (9).
7 Unscrew nut (10) and press tie rod joint (11) off steering knuckle (9).   AR46.40-P-0200-02XG
    TORQUE SPECIFICATION Self-locking nut, tie rod to steering knuckle *BA46.40-P-1002-01D
8 Remove screw (12). INSTALLATION IMPORTANT : Install new screw (12).
INSTALLATION IMPORTANT : Screw in screw (12) finger-tight.

9 Unscrew nut-and-washer assembly (13) and detach supporting joint (14) from steering knuckle (9). NOTES
Take particular care when using the special tool to release the ball stud!
Replace any components hit by incorrectly performed hammer blows.

    TORQUE SPECIFICATION Nut, lower transverse control arm to steering knuckle *BA33.15-P-1008-01A
    SPECIAL TOOL Punch-out drift Fig 1
10 Unscrew nut-and-washer assembly (15) and detach upper ball joint (16) from steering knuckle (9). NOTES
Counterhold ball pin of upper ball joint (16) using a suitable tool and do not use an impact wrench.
Otherwise the upper transverse control arm or the steering knuckle (9) will be damaged.

    TORQUE SPECIFICATION Nut, upper transverse control arm to steering knuckle *BA33.15-P-1011-01A
11 Lower steering knuckle (9), detach from supporting joint (14) and drive shaft and remove.
12 Detach wheel hub (17) from steering knuckle (9). Only when replacing the steering knuckle (9). AR33.20-P-0310XG
    TORQUE SPECIFICATION Bolt, wheel bearing to steering knuckle *BA33.20-P-1012-01C
13 Install in reverse order.
TRAILING ARMS, TRANSVERSE CONTROL ARMS

Number Designation Model 463 as of model year 2019
BA33.15-P-1008-01A Nut, lower transverse control arm to steering knuckle M14 Stage 1 Nm 100
Stage 2 ∠° 90
TRAILING ARMS, TRANSVERSE CONTROL ARMS

Number Designation Model 463 as of model year 2019
BA33.15-P-1011-01A Nut, upper transverse control arm to steering knuckle M14 Stage 1 Nm 100
Stage 2 ∠° 45
WHEEL CONTROL, HUB

Number Designation Model 463 as of model year 2019
BA33.20-P-1012-01C Bolt, wheel bearing to steering knuckle M12 Stage 1 Nm 80
Stage 2 ∠0 45
DRIVE SHAFT

Number Designation Model 463 as of model year 2019
BA33.30-P-1001-07E Screw, wheel bearing to drive shaft M16 Stage 1 Nm 170
Stage 2 ∠0 90
TIE ROD

Number Designation Model 463 as of model year 2019
BA46.40-P-1002-01D Self-locking nut, tie rod to steering knuckle M14 Stage 1 Nm 50
Stage 2 ∠° 90
Fig 1: Identifying Punch-Out Drift (190 589 01 15 00)
G13667588Courtesy of MERCEDES-BENZ USA
