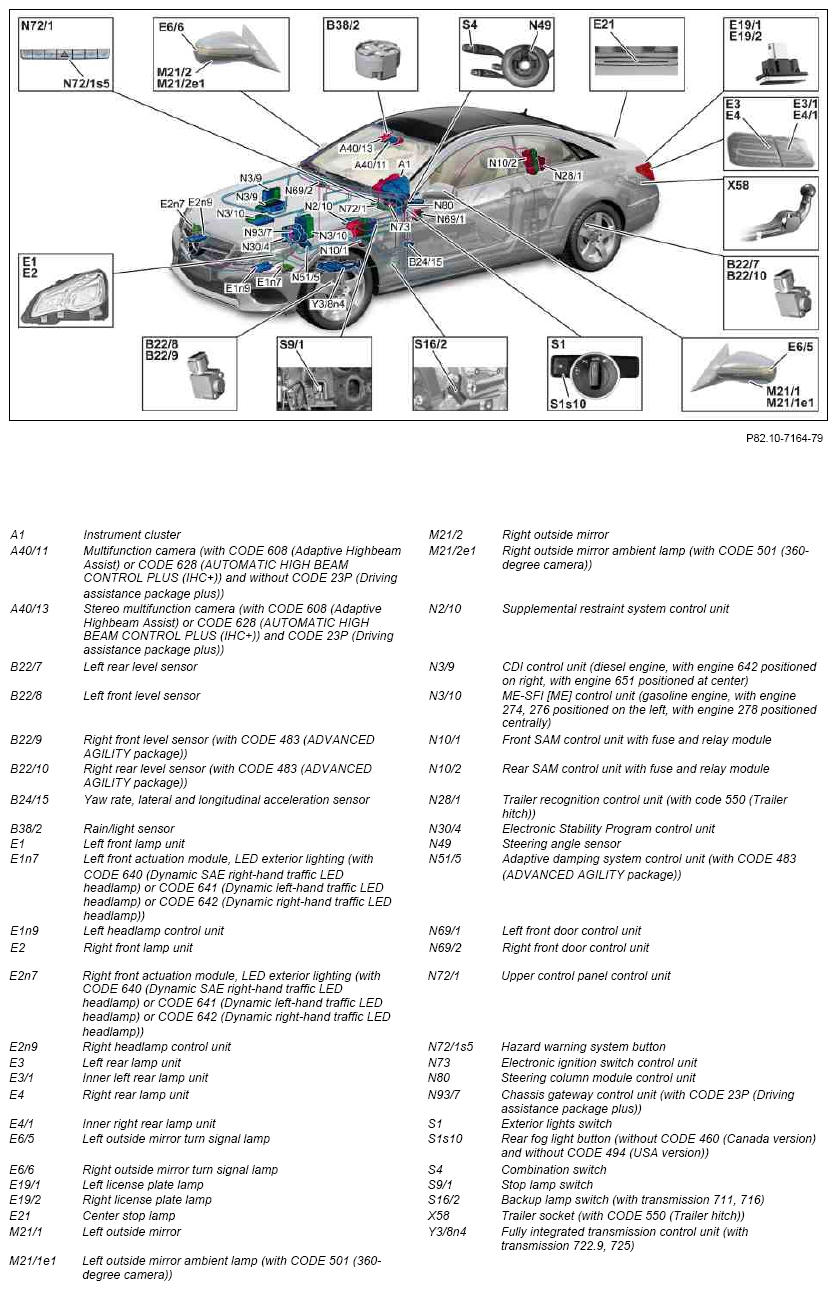

Overview of exterior lights system components - GF82.10-P-9998CAM
MODEL 207.3/4 as of model year 2014
Shown on model 207.3

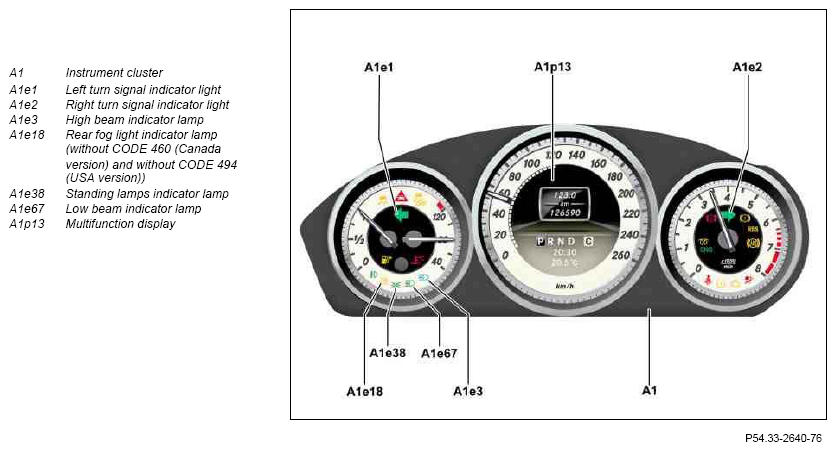

Exterior lights indicators
The following components in the instrument cluster sending functional feedback are not shown here:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)

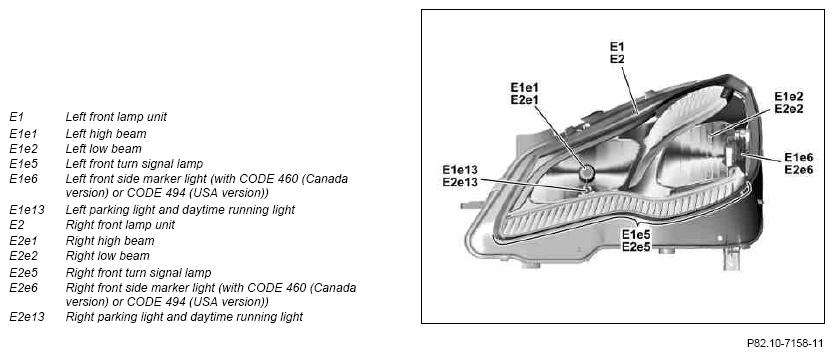

Front lamp unit (partial LED version) (without CODE 640 (Dynamic SAE right-hand traffic LED headlamp) and without CODE 641 (Dynamic left-hand traffic LED headlamp) and without CODE 642 (Dynamic right-hand traffic LED headlamp))
The following components are not shown:
- Left headlamp range adjustment actuator motor (E1m1)
- Fan motor 1 for left front lamp unit (E1m4)
- Right headlamp range adjustment actuator motor (E2m1)
- Fan motor 1 for right front lamp unit (E2m4)

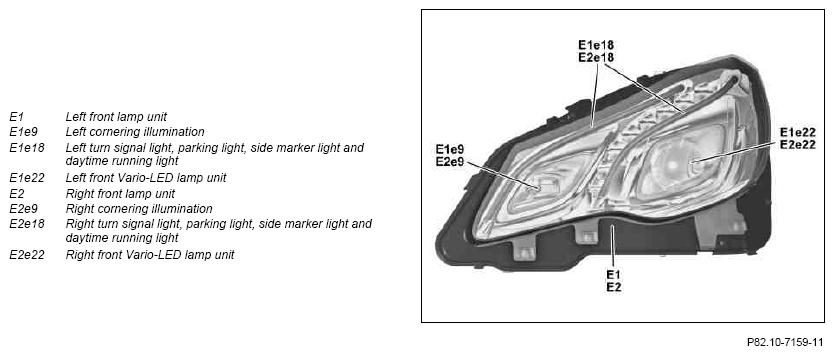

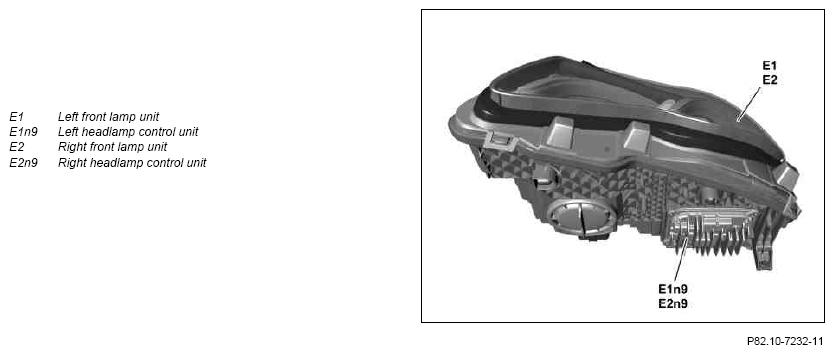

Front lamp unit (partial LED version) (without CODE 640 (Dynamic SAE right-hand traffic LED headlamp) and without CODE 641 (Dynamic left-hand traffic LED headlamp) and without CODE 642 (Dynamic right-hand traffic LED headlamp))

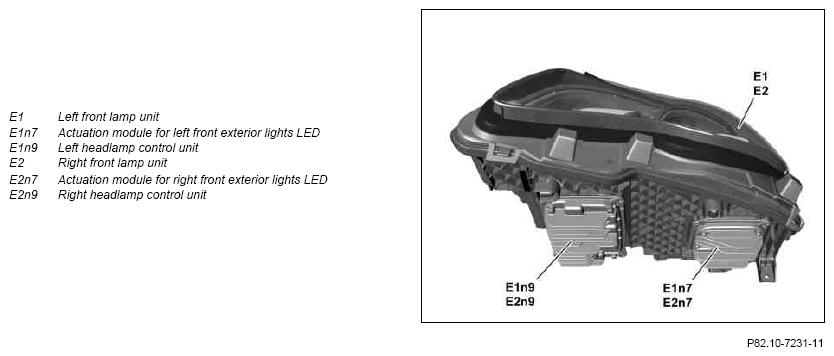

Front lamp unit (full LED version) (with CODE 640 (Dynamic SAE right-hand traffic LED headlamp) or CODE 641 (Dynamic left-hand traffic LED headlamp) or CODE 642 (Dynamic right-hand traffic LED headlamp))
Front lamp unit (full LED version) (with CODE 640 (Dynamic SAE right-hand traffic LED headlamp) or CODE 641 (Dynamic left-hand traffic LED headlamp) or CODE 642 (Dynamic right-hand traffic LED headlamp))
The following components are not shown:
- Left headlamp range adjustment actuator motor (E1m1)
- Left active curve illumination actuator motor (E1m2)
- Left light distribution actuator motor (E1m3)
- Fan motor 1 for left front lamp unit (E1m4)
- Fan motor 2 for left front lamp unit (E1m5)
- Right headlamp range adjustment actuator motor (E2m1)
- Right active curve illumination actuator motor (E2m2)
- Right light distribution actuator motor (E2m3)
- Fan motor 1 for right front lamp unit (E2m4)
- Fan motor 2 for right front lamp unit (E2m5)

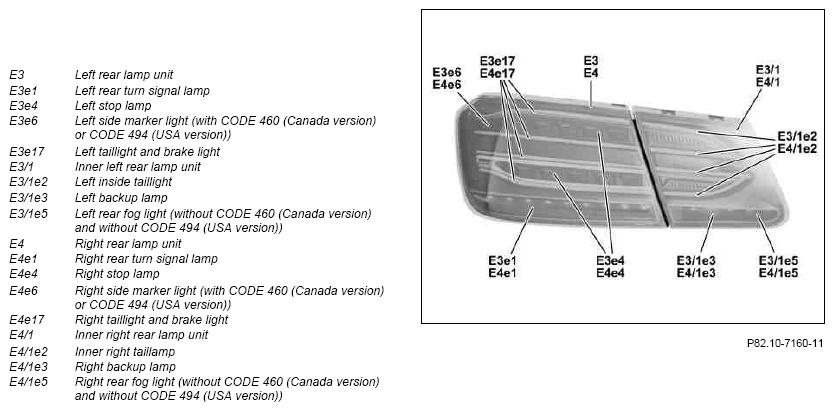

Rear lamp unit
| Component description for instrument cluster | A1 | GF54.30-P-6000CA | |
| Component description for multifunction camera | MODEL 207.3/4 as of model year 2014 with CODE 608 (Adaptive Highbeam Assist) MODEL 207.3/4 as of model year 2014 with CODE 628 (INTELLIGENT HEADLAMP CONTROL PLUS (IHC+)) A40/11, A40/13 |
GF54.21-P-3300CA | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | B24/15 | GF42.45-P-4810CA | |
| Actuation module, LED exterior lighting, front, component description | MODEL 207.3/4 as of model year 2014 with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic) MODEL 207.3/4 as of model year 2014 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 207.3/4 as of model year 2014 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) E1n7, E2n7 |
GF82.10-P-2160CAM | |
| Headlamp control unit, component description | E1n9, E2n9 | GF82.10-P-2020CAM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080CAM | |
| Component description for CDI control unit | MODEL 207.3/4 with ENGINE 642.8 as of model year 2014 N3/9 | GF07.16-P-6000OG | |
| MODEL 207.3/4 with ENGINE 651.9 as of model year 2014 N3/9 | GF07.16-P-6000OM | ||
| Component description for ME-SFI (ME) control unit | MODEL 207.3/4 with ENGINE 274.9 as of model year 2014 N3/10 | GF07.61-P-6000MRB | |
| MODEL 207.3/4 with ENGINE 276.8 as of model year 2014 N3/10 | GF07.61-P-6000MMP | ||
| MODEL 207.3/4 with ENGINE 276.9 as of model year 2014 N3/10 | GF07.61-P-6000MM | ||
| MODEL 207.3/4 with ENGINE 278.9 as of model year 2014 N3/10 | GF07.61-P-6000MMA | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CA | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030CA | |
| Component description for trailer recognition control unit | MODEL 207.3/4 as of model year 2014 with CODE 550 (Trailer coupling) N28/1 |
GF31.19-P-4050CA | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119CAM | |
| Component description for adaptive damping system control unit | MODEL 207.3/4 as of model year 2014 with CODE 483 (ADVANCED AGILITY package) N51/5 |
GF32.32-P-1010CAM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001CA | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009CA | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040CA | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CA | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051CA | |
| Component description for chassis gateway control unit | MODEL 207.3/4 as of model year 2014 with CODE 23P (Driving Assistance package Plus) N93/7 |
GF54.21-P-1010CAM | |
| Component description for fully integrated transmission control unit | MODEL 207.3/4 with TRANSMISSION 722.9 as of model year 2014 Y38n4 | GF27.60-P-5165AHC | |
| MODEL 207.3/4 with TRANSMISSION 725.0 as of model year 2014 Y38n4 | GF27.60-P-5165ANC | ||
| Table of contents for function description of exterior lights | GF82.10-P-0999CAM |
