Overview of exterior lights system components - GF82.10-P-9998CA
MODEL 207.3/4 up to model year 2014

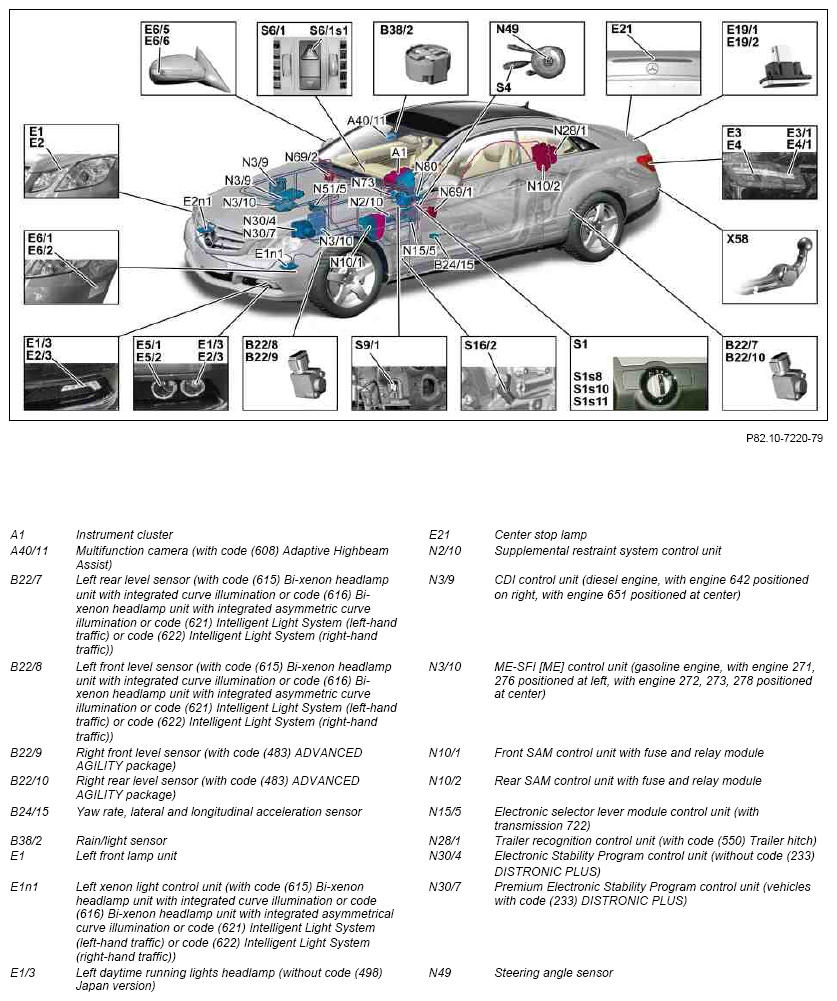

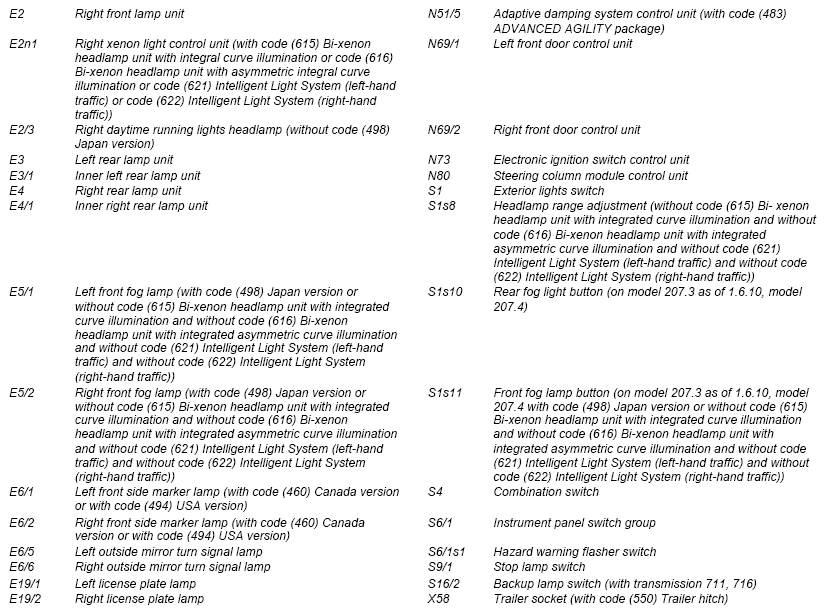

Shown here is model 207.3

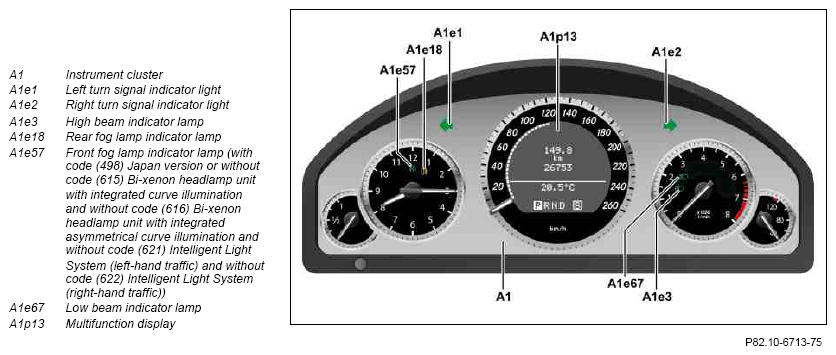

Exterior lights displays
The following instrument cluster components are not shown:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)

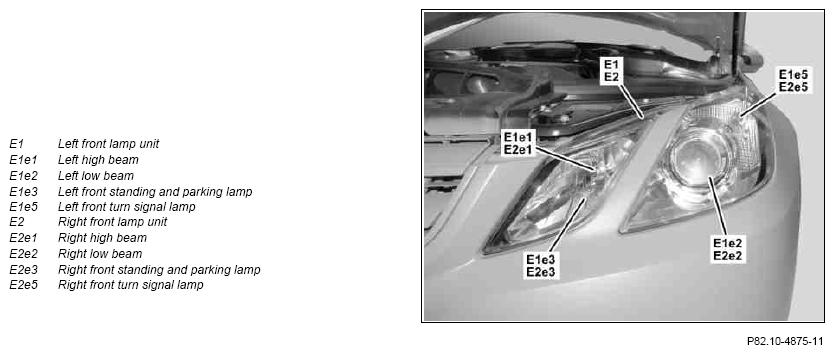

Halogen version lamp unit (without code (615) Bi-xenon headlamp unit with integrated curve illumination and without code (616) Bi- xenon headlamp unit with integrated asymmetric curve illumination and without code (621) Intelligent Light System (left-hand traffic) and without code (622) Intelligent Light System (right-hand traffic))
The following components in the front lamp unit are not shown:
- Left headlamp range adjustment actuator motor (E1m1)
- Right headlamp range adjustment actuator motor (E2m1)

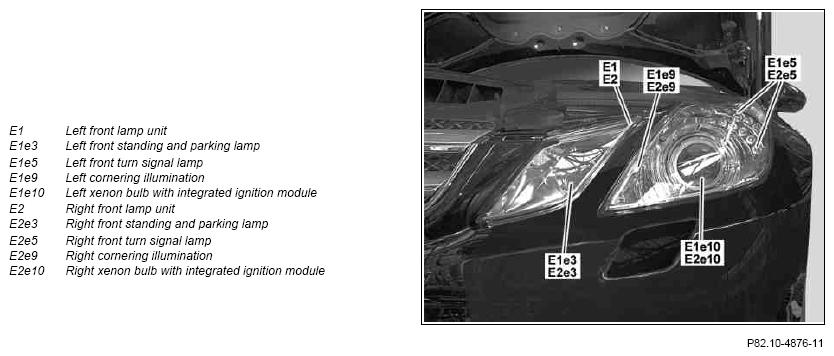

Xenon version lamp unit (with code (615) Bi-xenon headlamp unit with integrated curve illumination or code (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination or code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic))
The following components in the front lamp unit are not shown:
- Left headlamp range adjustment actuator motor (E1m1)
- Left active curve illumination actuator motor (E1m2)
- Left light distribution actuator motor (E1m3)
- Right headlamp range adjustment actuator motor (E2m1)
- Right active curve illumination actuator motor (E2m2)
- Right light distribution actuator motor (E2m3)

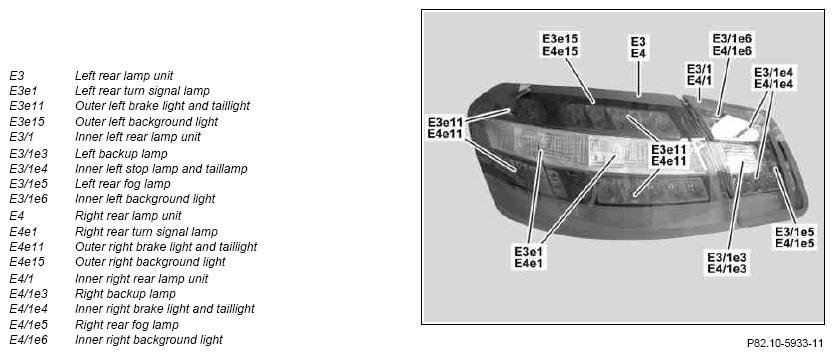

Taillamp
| Component description for instrument cluster | A1 | GF54.30-P-6000CA | |
| Component description for multifunction camera | MODEL 207.3/4 up to model year 2014 with CODE 608 (Adaptive Main Beam Assist) A40/11 | GF54.21-P-3300CA | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | B24/15 | GF42.45-P-4810CA | |
| Component description for Xenon light control unit | MODEL 207.3/4 up to model year 2014 with CODE 615 (Bi-xenon headlamp unit with integrated curve illumination) MODEL 207.3/4 up to model year 2014 with CODE 616 (Bi- xenon headlamp unit with integrated asymmetric curve illumination) MODEL 207.3/4 up to model year 2014 with CODE 621 (Intelligent Light System (left-hand traffic)) MODEL 207.3/4 up to model year 2014 with CODE 622 (Intelligent Light System (right- hand traffic)) E1n1, E2n1 |
GF82.10-P-2119CA | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080CAM | |
| Component description for CDI control unit | MODEL 207.3/4 with ENGINE 642.8 up to model year 2014 N3/9 | GF07.16-P-6000OG | |
| MODEL 207.3/4 with ENGINE 651.9 up to model year 2014 N3/9 | GF07.16-P-6000OM | ||
| Component description for ME-SFI (ME) control unit | MODEL 207.3/4 with ENGINE 271.8 up to model year 2014 N3/10 | GF07.61-P-6000MG | |
| MODEL 207.3/4 with ENGINE 272.9 (except 272.984) up to model year 2014 N3/10 | GF07.61-P-6000MI | ||
| MODEL 207.3/4 with ENGINE 272.984 up to model year 2014 N3/10 | GF07.61-P-6000MIE | ||
| MODEL 207.3/4 with ENGINE 273.9 up to model year 2014 N3/10 | GF07.61-P-6000ML | ||
| MODEL 207.3/4 with ENGINE 276.9 up to model year 2014 N3/10 | GF07.61-P-6000MM | ||
| MODEL 207.3/4 with ENGINE 278.9 up to model year 2014 N3/10 | GF07.61-P-6000MMA | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CA | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030CA | |
| Component description for electronic selector lever module control unit | MODEL 207.3/4 with TRANSMISSION 722.6 up to model year 2012 N15/5 | GF27.60-P-5163ACL | |
| MODEL 207.3/4 with TRANSMISSION 722.9 up to model year 2014 N15/5 | GF27.60-P-5163AHC | ||
| Component description for trailer recognition control unit | MODEL 207.3/4 up to model year 2014 with CODE 550 (Trailer coupling) N28/1 | GF31.19-P-4050CA | |
| Component description for Electronic Stability Program control unit | N304, N307 | GF42.45-P-5119CA | |
| Component description for adaptive damping system control unit | MODEL 207.3/4 up to model year 2014 with CODE 483 (ADVANCED AGILITY package) N51/5 | GF32.32-P-1010CA | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001CA | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009CA | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CA | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051CA | |
| Table of contents for function description of exterior lights | GF82.10-P-0999CA |
