Remove/install track rod - AR35.20-P-0109LW

MODEL 205

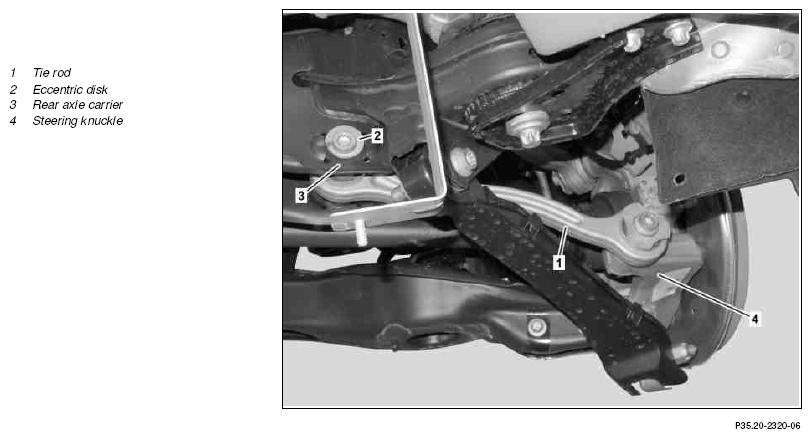

Fig 1: Track Rod Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Detach corresponding complete wheel		AR40.10-P-1101A
2	Lower front rear axle	When removing the right-hand tie rod (1).
			AR35.10-P-0015LW
3	Mark installation position of eccentric disk (2)	The toe-in is configured at the factory using the eccentric disk (2).
4	Detach tie rod (1) from rear axle carrier (3)	Self-locking nut, tie rod to rear axle carrier	*BA35.20-P-1002-04M
5	Detach and remove tie rod (1) from steering knuckle (4)	Screw/bolt, tie rod to wheel carrier	*BA35.20-P-1001-04M
	Check
6	Check tie rod (1) for condition and signs of damage	If damage is present: ↓ Replace tie rod (1).
7	Install in the reverse order
8	Perform wheel alignment check		AR40.20-P-0200LW

TIE ROD

Number	Designation			MODEL 205
BA35.20-P-1001-04M	Screw/bolt, tie rod to wheel carrier	Stage 1	Nm	50
		Stage 2	∠°	90

TIE ROD

Number	Designation			MODEL 205
BA35.20-P-1002-04M	Self-locking nut, tie rod to rear axle carrier	Stage 1	Nm	50
		Stage 2	∠°	90
