Remove/install ETS/ASR/ESP hydraulic unit - AR42.40-P-0816LW
MODEL 205
MODEL 253
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Remove/install | |||
| 1 | Switch off ignition | ||
| 2 | Remove left and right wiper arms | AR82.30-P-6100LW | |
| 3 | Remove plenum channel under left and right wiper arm | ||

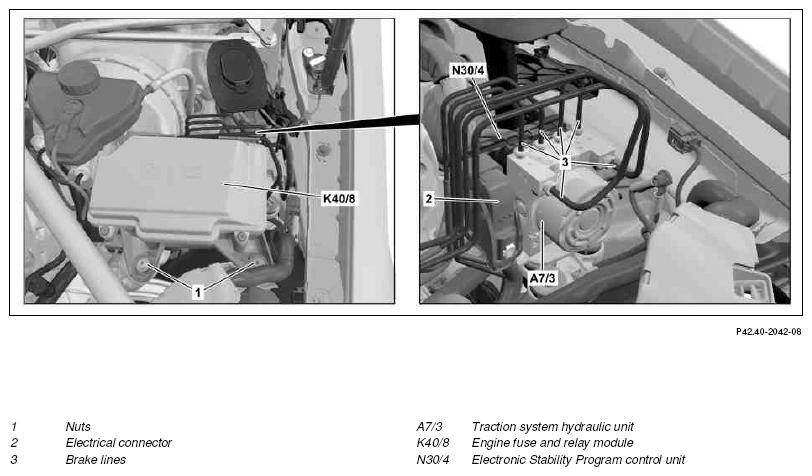

| 4 | Unscrew nuts (1) and place engine fuse and relay module (K40/8) with connected electrical lines to one side | ||
| Clean | |||
| 5 | Clean traction system hydraulic unit (A7/3) in the area of the brake line connections | Before opening the hydraulic system, the area surrounding the connecting points should be thoroughly cleaned. Otherwise minute particles of dirt in the hydraulic components can result in malfunctions and total failure of the hydraulic system. Do not use any compressed-air for cleaning when the brake system is open. |
|
| Assembly cleaner | *BR00.45-Z-1028-04A | ||
| 6 | Release and disconnect electrical connection (2) from Electronic Stability Program control unit (N30/4) | AR42.45-P-0820-02LW | |
The work instructions for disconnecting the electrical connection (2) must be followed. Otherwise damage can be caused to the locking mechanism. The contacts on the electrical connection (2) on the Electronic Stability Program control unit (N30/4) must not be touched, deformed or damaged, and foreign objects, soiling or fluids must not penetrate into the electrical connection (2). Otherwise the Electronic Stability Program control unit (N30/4) may be damaged or may malfunction. |
|||
| 7 | Identify brake line (3) relative to the corresponding connection on the traction system hydraulic unit (A7/3) | ||
| 8 | Detach brake lines (3) from traction system hydraulic unit (A7/3) | Seal brake lines (3) and connections on traction system hydraulic unit (A7/3). Otherwise the traction system hydraulic unit (A7/3) may be damaged by the entry of foreign objects. Pay attention to marking. |
|
| *BA42.10-P-1004-04O | |||
| Figure | |||
| Fig 3 | |||
| Fig 4 | |||
| Figure | |||

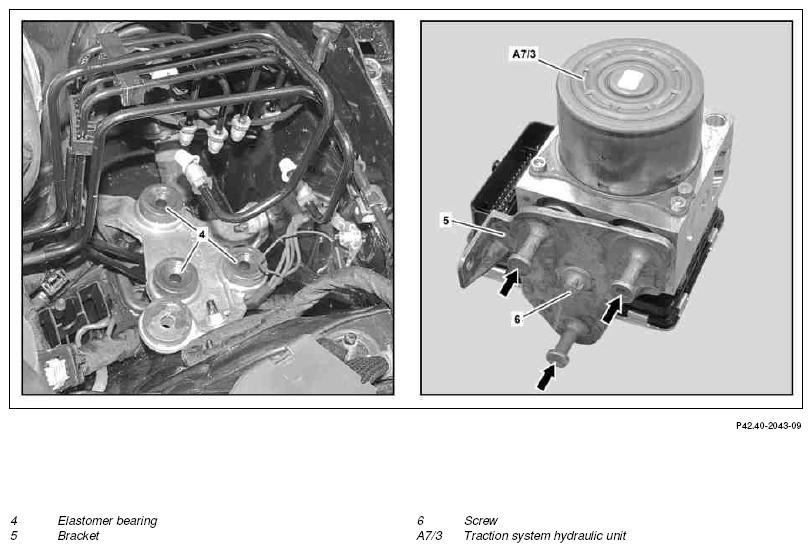

| 9 | Pull traction system hydraulic unit (A7/3) upwards out of the elastomer bearings (4) | ||
| Check | |||
| 10 | Check elastomer bearing (4) for damage and wear | If there are problems: ↓ Replace elastomer bearing (4). |
|
| 11 | Remove bolt (6) and remove bracket (5) | When installing a new traction system hydraulic unit (A7/3). | |
| *BA42.45-P-1001-01M | |||
| 12 | Install in the reverse order | ||
| 13 | Bleed brake system | AR42.10-P-0010LW | |
| 14 | Read out fault memory using the diagnostic system and delete if necessary | Model 205, 253 | |
| Model 205 | AD00.00-P-2000-04B |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 205 (except 205.086/087/286/287/387/487) | Model 205.086/087/286/287/387/487 | ||
|---|---|---|---|---|---|
| BA42.10-P-1004-04O | Retaining screw, brake line to hydraulic unit | Ø 4.75 mm | Nm | 18 | 18 |
| Ø 6.00 mm | Nm | 18 | 18 | ||
| Ø 8.00 mm | Nm | 24 | 24 | ||
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 253 | ||
|---|---|---|---|---|
| BA42.10-P-1004-04O | Retaining screw, brake line to hydraulic unit | Ø 4.75 mm | Nm | 16 |
| Ø 6.00 mm | Nm | 16 | ||
| Ø 8.00 mm | Nm | - | ||
ELECTRONIC STABILITY PROGRAM (ESP)
| Number | Designation | Model 205 | Model 253 | ||
|---|---|---|---|---|---|
| BA42.45-P-1001-01M | Screw/bolt, bracket to traction system hydraulic unit | M8 | Nm | 18 | 18 |
| M10 | Nm | 27 | - | ||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | Adolf Wurth GmbH & Co. KG |
