Remove and install wiper arm - AR82.30-P-6100LW

MODEL 205

MODEL 253

Shown on model 205

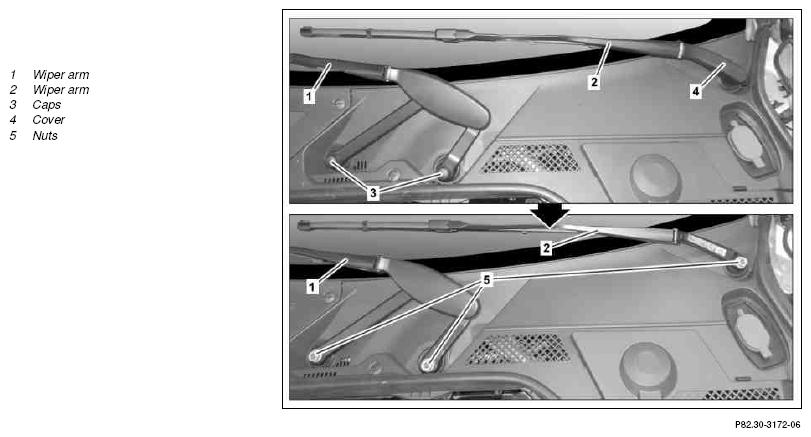

Fig 1: Wiper Arm Remove/Install Components - Shown On Model 205

Courtesy of MERCEDES-BENZ USA

	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
	Remove/install
1	Move windshield wiper system to park position
2	Switch off ignition and remove transmitter key
3	Move engine hood to upright position
4	Remove caps (3)	When removing wiper arm (1).
5	Take off cover (4)	When removing wiper arm (2).
6	Unscrew nuts (5)	Nut to wiper arm	*BA82.30-P-1001-01M
7	Release and remove wiper arm (1 or 2) from windshield wiper system using puller and thrust piece	Position wiper arm (1 or 2) with the aid of the window marking.
		Thrust washer M 10x1.5	Fig 3
		Puller	Fig 2
8	Install in the reverse order
	Check
9	Perform function check on windshield wiper system
10	Check setting of wiper arm (1 or 2); adjust	When replacing wiper arm (1 or 2).
			AR82.30-P-6000LW

WINDSHIELD WIPER

Number	Designation		Model 205	Model 253
BA82.30-P-1001-01M	Nut to wiper arm	Nm	30	30

Fig 2: Identifying Puller (001 589 38 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Thrust Washer M 10x1.5 (210 589 04 63 00)

Courtesy of MERCEDES-BENZ USA
