Remove/Install C-Pillar - Ar63.20-P-0500LW
Model 205.0/1
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | See AS00.00-Z-0017-01A . | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | See AS00.00-Z-0010-01A . | |
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system | See AH00.00-Z-0300-01A . | ||
| Information on preventing damage to electronic components due to electrostatic discharge | See AH54.00-P-0001-01A . | ||
| Notes on battery | See AH54.10-P-0001-01A . | ||
| General information on body repair | See AH60.00-N-0001-01A . | ||
| Pretreatment of bonding surfaces | See AH60.00-P-0008-01SX . | ||
| General information on MB materials | See AH98.00-P-9409-03A . | ||
| Remove | |||
| 1 | Remove detachable parts in area to be repaired | ||
| 2 | Cover all detachable parts remaining on vehicle with spark protection blanket | ||
| 3 | Remove rear fender | See AR63.50-P-1400LW . | |

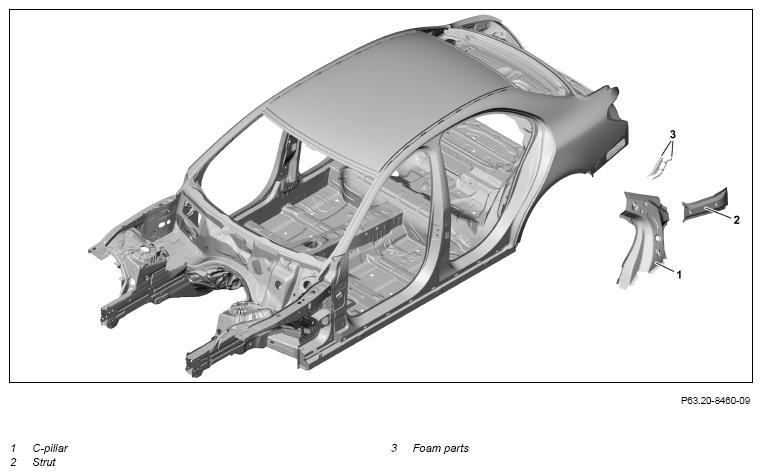

| 4 | Remove C-pillar (1) and strut (2) | See AR63.20-P-0500-01LW . | |
Round wire brush Spot weld cutter Heat gun Wet/dry vacuum cleaner Zinc dust paint suitable for spot welding |
See *BR00.45-Z-1001-07A . | ||
| 5 | Prepare C-pillar (1) and strut (2) | See AR63.20-P-0500-02LW . | |
Round wire brush Zinc dust paint suitable for spot welding |
See *BR00.45-Z-1001-07A . | ||
| Install | |||
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | See AS00.00-Z-0007-01A . | |
| Risk of poisoning caused by inhaling vapors or swallowing adhesive. Risk of injury caused by adhesive coming into contact with skin and eyes | Wear respiratory protection, protective gloves and safety glasses. Pour adhesive into suitable and appropriately marked containers only. | See AS00.00-Z-0016-01A . | |
| Measures for preventing damage to components when performing electric welding and soldering work | See AH60.00-P-0001-02A . | ||
| General information on riveting | See AH60.00-P-0003-01N . | ||
| 6 | Install C-pillar (1) and strut (2) | See AR63.20-P-0500-03LW . | |
Blind rivet tool Round wire brush Manual temporary fastener 6.35 mm Spot welder Wet/dry vacuum cleaner Zinc dust paint suitable for spot welding |
See *BR00.45-Z-1001-07A . | ||
| White sealing compound, 310 ml, DBL 6069.20 | See *BR00.45-Z-1003-01A . | ||
| Adhesive kit, body, 2-component adhesive | See *BR00.45-Z-1092-02A . | ||
| Blind rivet 6.4X12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) | See *BR00.45-Z-1035-13A . | ||
| 7 | Clean welds and sheet metal flanges | Round wire brush |
|
| 8 | Install rear fender | See AR63.50-P-1400LW . |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1035-13A | Blind rivet 6.4X12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) | A 000 991 76 32 |
| BR00.45-Z-1092-02A | Adhesive kit, body, 2-component adhesive | A 012 989 17 71 |
