Crank Engine With Starter - Ar01.10-D-0110WE

ENGINES 651.955/956/957 in MODEL 906

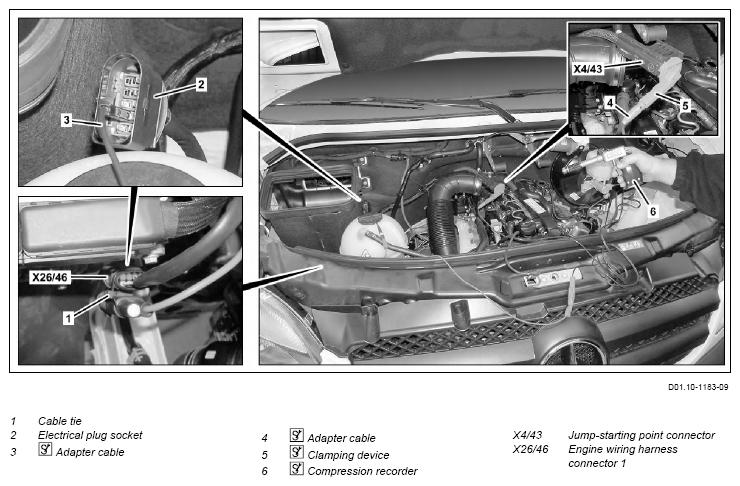

Shown on removed air filter housing

Courtesy of MERCEDES-BENZ USA

	Connect/disconnect
1	Turn transmitter key in EIS control unit to position "0" and remove	To prevent unintentional starting of the engine.
2	Open cable tie (1), remove electrical connection 1 for engine wiring harness (X26/46) on CDI control unit and disconnect	Expose the electrical wiring harness to engine until the pin assignment of the electrical plug coupling (2) can be recognized.
3	Attach adapter line (3) to the compression recorder (6)	The adapter line (3) with associated extension line can be taken from the electrical connection kit. Compression recorder	Figure
		Electrical connection set	Fig 2
4	Connect adapter line (3) to pin 3 on electrical plug coupling (2)	Electrical connection set	Fig 2
5	Connect adapter line (4) with clip (5) to jump-start connection point connector (X4/43)	The adapter line (4) and terminal (5) with associated extension line can be taken from the electrical connection kit. Electrical connection set	Fig 2
	Crank engine
	Risk of death  caused by being drawn into rotating vehicle parts	Do not insert your hand into rotating parts. Wear closed and snug-fitting work clothes. Secure area of rotating vehicle components against unauthorized access.	AS00.00-Z-0004-01A
	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
6	Actuate switch on compression recorder (6) to crank engine	Compression recorder	Figure
7	Disconnect in reverse order

Fig 1: Compression Tester (001 589 76 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Electrical Connection Kit (220 589 00 99 00)

Courtesy of MERCEDES-BENZ USA
