Remove/Install Belt Pulley/Vibration Damper - Ar03.30-D-1600WE

Engine 651.955/956/957 in model 906

Modification notes

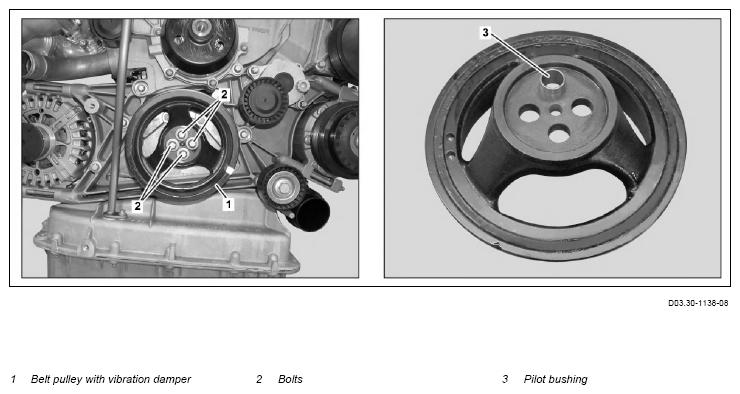

G13186214Courtesy of MERCEDES-BENZ USA

Shown: model 906 without code MJ7 (ECO start/stop function)

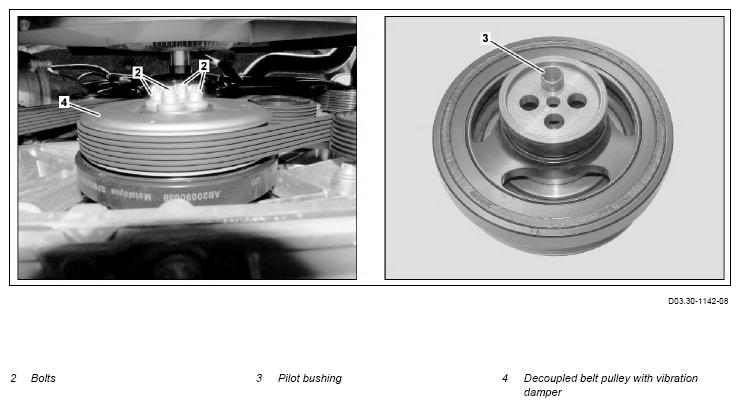

G13186215Courtesy of MERCEDES-BENZ USA

Shown: model 906 with code MJ7 (ECO start/stop function)

WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
REMOVINGINSTALLING Remove/install
1 Remove fan shroud Engine 651 in model 900 with code HK4 (Rear air conditioning, reinforced)
Engine 651.955/956/957 in model 906 with code H08 (Roof-mounted air conditioning system, reinforced) except code XM0 (Facelift) except code XM5 (Facelift Latin America) Engine 651.955/956/957 in model 906 with code HK4 (Rear air conditioning, reinforced) except code XM0 (Facelift) except code XM5 (Facelift Latin America)		 AR20.40-D-6800WE
    Engine 651.955/956/957 in model 906 with code H08 (Roof-mounted air conditioning system, reinforced) with code XM0 (Facelift) Engine 651.955/956/957 in model 906 with code HK4 (Rear air conditioning, reinforced) with code XM0 (Facelift) Engine 651.955/956/957 in model 906 with code HK4 (Rear air conditioning, reinforced) with code XM5 (Facelift Latin America) AR20.40-D-6800M
2 Remove poly-V belt   AR13.22-D-1202WE
3 Remove screw/bolt (2) with an assistant from the belt pulley with vibration damper (1) or remove the decoupled belt pulley with vibration damper (4) INSTALLATION IMPORTANT Replace screw/bolts (2).
    TORQUE SPECIFICATION Screw/bolt, decoupled belt pulley with vibration damper to crankshaft *BA03.30-N-1007-01S
    TORQUE SPECIFICATION Bolt, belt pulley with vibration damper to crankshaft *BA03.30-N-1006-01S
    SPECIAL TOOL Engine 651.955/956/957 in model 906 with code H08 (Roof-mounted air conditioning system, reinforced) except code MJ7 (ECO start/stop function) Counterholder Figure
    SPECIAL TOOL Engine 651 in model 900 Engine 651.955/956/957 in model 906 except code H08 (Roof-mounted air conditioning system, reinforced) except code MJ7 (ECO start/stop function) Engine 651.955/956/957 in model 906 with code MJ7 (ECO start/stop function) except code H08 (Roof-mounted air conditioning system, reinforced) Counterholder Figure
4 Remove belt pulley/vibration damper (1) or belt pulley with vibration damper (4) INSTALLATION IMPORTANT Note the position of the pilot bushing (3).
5 Clean contact surface of belt pulley with vibration damper (1) or clean the decoupled belt pulley with vibration damper (4) Assembly cleaner *BR00.45-Z-1028-04A
6 Check contact surface of belt pulley with vibration damper (1) or decoupled belt pulley with vibration damper (4) for damage If damaged
↓
Replace belt pulley with vibration damper (1) or decoupled belt pulley with vibration damper (4).
7 Install in the reverse order
FLYWHEEL, DRIVE PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number Designation Engine 651 in model 906
BA03.30-N-1006-01S Bolt, belt pulley with vibration damper to crankshaft M12 Stage 1 Nm 80
Stage 2 ∠° 90
FLYWHEEL, DRIVE PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number Designation Engine 651 in model 906
BA03.30-N-1007-01S Screw/bolt, decoupled belt pulley with vibration damper to crankshaft Stage 1 Nm 80
Stage 2 ∠° 180
Fig 1: Counterholder (651 589 00 40 00)
G13186216Courtesy of MERCEDES-BENZ USA
Fig 2: Counterholder (651 589 08 40 00)
G13186217Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
