Remove/Install Fan Shroud - Ar20.40-D-6800M
Engine 651 in model 906
with code XM0 (Facelift)
Engine 651 in model 906
with code XM5 (Facelift Latin America)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Unbolt cap (1) on coolant expansion reservoir | ||
| 2 | Lift/jack up vehicle | AR00.60-D-1000H | |
| 3 | Drain off about 3 liters of coolant at cooler drain valve | ||
| Anticorrosion/antifreeze agents (Sheet 325.0) | BB00.40-P-0325-00A | ||
| Coolant specifications | BB00.40-P-0310-01A | ||
| 4 | Remove air filter housing(3) | Engine 651 in model 906 with code XM0 (Facelift) Engine 651 in model 906 with code XM5 (Facelift Latin America) |
AR09.10-D-1150WE |
| 5 | Remove cover (4) | ||
| 6 | Unclip coolant hose (2) on fan cowl (6) | ||

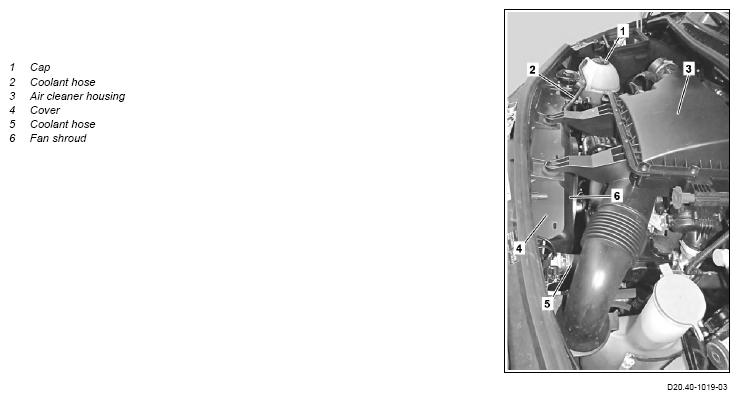

| 7 | Remove coolant hose (5) | Figure | |
| 8 | Remove viscous fan clutch | Engine 651 in model 906 with code XM0 (Facelift) Engine 651 in model 906 with code XM5 (Facelift Latin America) |
|
| ENGINE 651 | AR20.40-D-5660WE | ||
| 9 | Take out fan shroud (6) in the upward direction. | ||
| 10 | Install in the reverse order | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 11 | Perform an engine test run and check engine for leaktightness in the area of the coolant hose (5) |
