Remove/Install Fan Shroud - Ar20.40-D-6800WE
Engine 651.955/956/957 in model 906
except code XM0 (Facelift)
except code XM5 (Facelift Latin America)

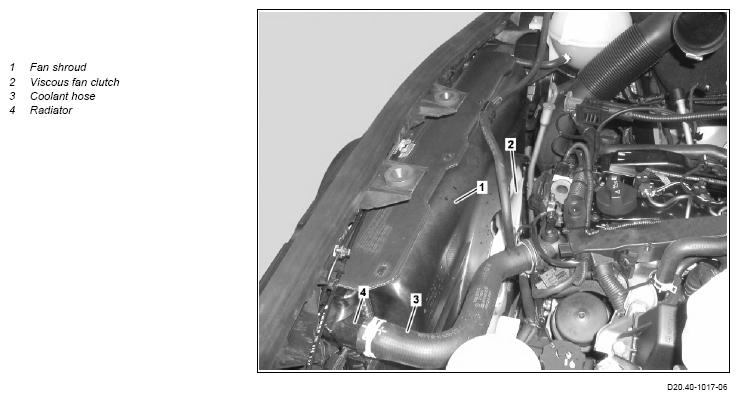

Shown on vehicle up to 31.8.10
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Unscrew cap from coolant expansion reservoir | ||
| 2 | Lift/jack up vehicle | AR00.60-D-1000H | |
| 3 | Drain off about 3 I of coolant at cooler drain valve | ||
| Coolant specifications | BB00.40-P-0310-01A | ||
| Anticorrosion/antifreeze agents (Sheet 325.0) | BB00.40-P-0325-00A | ||
| 4 | Detach coolant hose (3) on cooler (4) and place to one side | Figure | |
| 5 | Remove viscous fan clutch (2) | AR20.40-D-5660WE | |
| 6 | Take out fan shroud (1) in the upward direction. | ||
| 7 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Test run engine and check engine for leaks in the area of the coolant hose (3) |
