Remove/Install Exhaust Gas RECIRCULATION Valve - Ar14.20-D-7662WE

Engine 651.955/956/957 in model 906

Courtesy of MERCEDES-BENZ USA

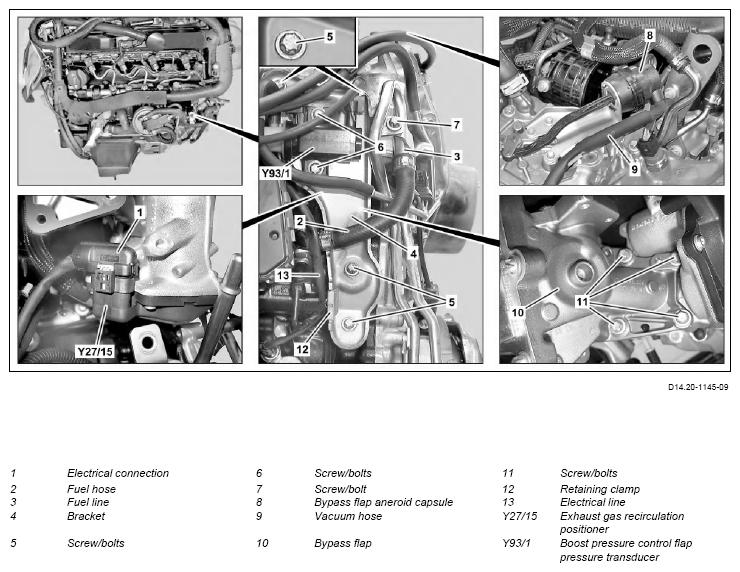

Shown on engine 651.955

Shown with code ZU8 (National version USA)

Courtesy of MERCEDES-BENZ USA

-	Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Remove	-	-
1	Drain off coolant	-	AR20.00-D-1140SD
2	Remove engine cover	-	AR01.10-D-2405WE
3	Remove vacuum reservoir	Engine 651.955/957 in model 906	AR07.09-D-0001WE
4	Remove exhaust gas recirculation cooler	-	AR14.20-D-7665WE
5	Remove charge air distributor	-	AR09.41-D-8681WE
6	Unscrew screw/bolt (7)	-	-

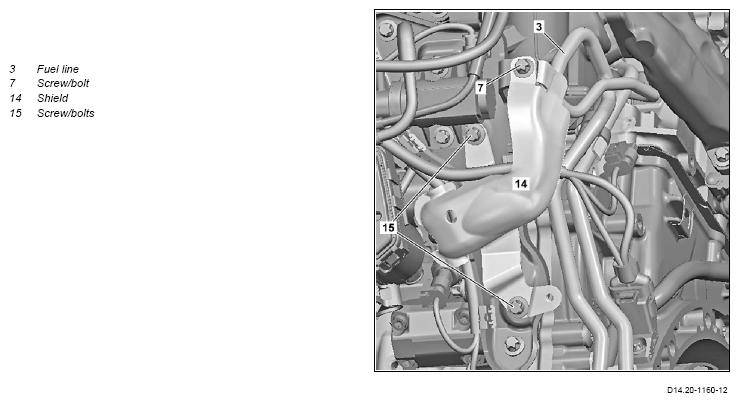

7	Remove shield (14)	Engine 651.955/956/957 in model 906 with code ZU8 (National version for USA) To do this, remove the screw/bolts (15).	-
8	Loosen and remove fuel hose (2) on high-pressure pump	Seal connections. Pliers for click clamps	Fig 1
-	-	Record plug	Fig 2
9	Place fuel line (3) to one side	-	-
10	Remove screw/bolts (6)	Set of flexible head wrenches	Figure
11	Remove boost pressure control flap pressure transducer (Y93/1) with attached lines from bracket (4) and place to one side	-	-
12	Remove retaining clamp (12) with electrical line (13) from bracket (4)	-	-
13	Remove bracket (4)	To do this, remove the screw/bolts (5).	-
14	Disconnect electrical connection (1) at exhaust gas recirculation positioner (Y27/15)	-	-
15	Remove exhaust gas recirculation positioner (Y27/15) with bypass flap (10)	To do this, remove screw/bolts (11).	-
16	Remove vacuum hose (9) from bypass flap aneroid capsule (8)	-	-
	Check	-	-
17	Check vacuum hose (9)	For damage	-
		↓ Replace vacuum hose (9).	-
	Install	-	-
18	Attach vacuum hose (9) to bypass flap aneroid capsule (8)	-	-
19	Install exhaust gas recirculation positioner (Y27/15) with bypass flap (10)	Screw in screw/bolts (11) to do this. Align exhaust gas recirculation positioner (Y27/15) with bypass flap (10) and exhaust gas recirculation cooler relative to brackets on exhaust gas recirculation cooler. Replace seals.	AR14.20-D-7662-01WE
-	-	Bolt, bypass flap with exhaust gas recirculation valve to exhaust gas recirculation line	*BA14.20-N-1031-01H
-	-	Set of flexible head wrenches	Figure
20	Connect electrical connection (1) to exhaust gas recirculation positioner (Y27/15)	-	-
21	Install bracket (4)	Screw in screw/bolts (5) to do this. Bolt, exhaust gas recirculation valve/bypass flap bracket to crankcase	*BA14.20-N-1030-01H
-	-	Bolt, bracket to exhaust gas recirculation valve/bypass flap	*BA14.20-N-1029-01H
-	-	Set of flexible head wrenches	Figure
22	Attach retaining clamp (12) with electrical line (13) to bracket (4)	-	-
23	Attach boost pressure control flap pressure transducer (Y93/1)	Screw in screw/bolts (6) to do this.	-
-	-	Set of flexible head wrenches	Figure
24	Position fuel line (3)	-	-
	Check	-	-
25	Check clamp and fuel hose (2)	For damage ↓ Replace clamp or fuel hose (2).	-
26	Mount fuel hose (2) on the high-pressure pump	Pliers for click clamps	Fig 1
27	Install shield (14)	Engine 651.955/956/957 in model 906 with code ZU8 (National version for USA) Screw in screw/bolts (15) to do this. M6	*BA00.10-N-1002-01A
28	Fasten fuel line (3)	Screw in screw/bolt (7) to do this.	-
29	Install charge air distributor	-	AR09.41-D-8681WE
30	Install exhaust gas recirculation cooler	-	AR14.20-D-7665WE
31	Install vacuum reservoir	Engine 651.955/957 in model 906	AR07.09-D-0001WE
32	Pour in coolant	-	AR20.00-D-1140SD
	Check	-	-
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
33	Perform an engine test run and check exhaust gas recirculation system and fuel system for proper operation and leak tightness	Visual inspection only.	-
34	Install engine cover	-	AR01.10-D-2405WE

Fig 1: Pliers For Click Clamps (171 589 00 37 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Set Of Flexible Head Wrenches (001 589 81 09 00)

Courtesy of MERCEDES-BENZ USA
