Drain Coolant, Fill Up And Check Cooling System For Leaks - Ar20.00-D-1140SD

Engine 651.955/956/957 in model 906

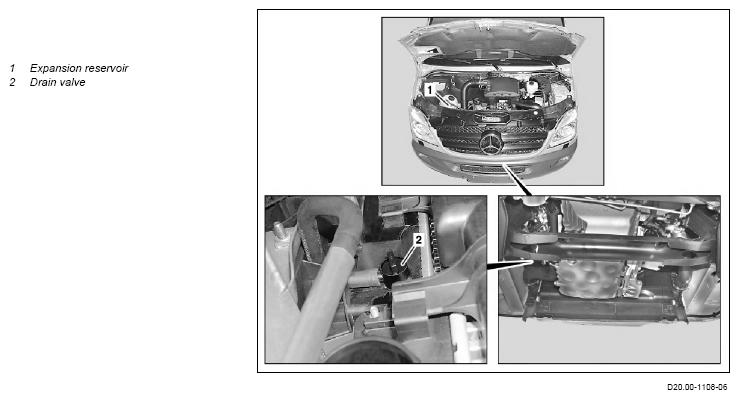

Shown on engine 646.985

Courtesy of MERCEDES-BENZ USA

	Drain off
	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Notes on coolant		AH20.00-N-2080-01A
1	Unscrew cap from the expansion reservoir (1)	Turn cap on the expansion reservoir (1) counterclockwise by half a revolution, relieve overpressure, then unscrew cap from expansion reservoir (1).
2	Lift/jack up vehicle		AR00.60-D-1000H
3	Fasten drain hose to drain valve (2)	Cooler vacuum filling device	Fig 2
4	Open drain screw on drain valve (2) and drain coolant	Collect coolant in a suitable container. When disposing of coolant observe legal regulations and local waste water regulations.
5	Close exhaust valve on drain valve (2)	To do this, detach drain hose.
	Pour in
6	Pour in coolant and bleed cooling system		AR20.00-D-1142-04SD
	Notes on coolant level		AH20.00-P-1142-01CW
		Engine 651 Coolant	BF20.00-N-1001-01A
		Cooler vacuum filling device	Fig 2
		Test cap	Fig 1
7	Check cooling system for leaktightness	When removing component parts within the coolant circuit.	AR20.00-S-1010S

ENGINE COOLING

Number	Designation			Engine 651.955/956/957 in model 906
BF20.00-N-1001-01A	Coolant	Total filling capacity	Liter	≈10
		Corrosion/antifreeze down to -37°C	Liter	≈4, 8
		Corrosion/antifreeze down to -45°C	Liter	≈5, 2
		Sheet		BB00.40-P-0310-01A
		Sheet		BB00.40-P-0235-00A
		Sheet		BB00.40-P-0325-06A
		Sheet		BB00.40-P-0326-06A

Fig 1: Test Cap (639 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Cooler Vacuum Filling Device (285 589 00 21 00)

Courtesy of MERCEDES-BENZ USA
