Remove/Install Expansion Reservoir - Ar20.30-D-4950SD

Engine 651.955/956/957 in model 906

Shown with engine 646.985

Courtesy of MERCEDES-BENZ USA

Shown with engine 642.898

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Notes on coolant		AH20.00-N-2080-01A
	Remove/install

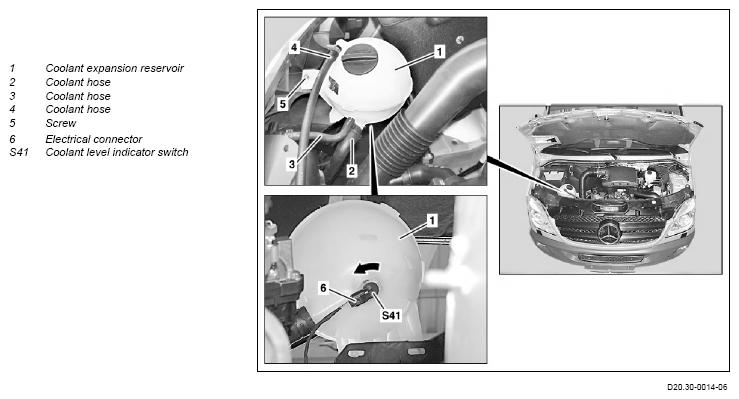

1	Remove cap from coolant expansion reservoir (1).	Turn cap at coolant expansion reservoir (1 by half a turn counterclockwise, release overpressure, then remove cap from coolant expansion reservoir (1).
2	Suction off coolant from coolant expansion reservoir (1).
	Notes on coolant level		AH20.00-P-1142-01CW
	Service Information: Coolant		SI20.00-S-0001B
		Engine 651.955 in model 900 Engine 651.955/956/957 in model 906 Coolant	BF20.00-N-1001-01A
		Hand pump	Figure

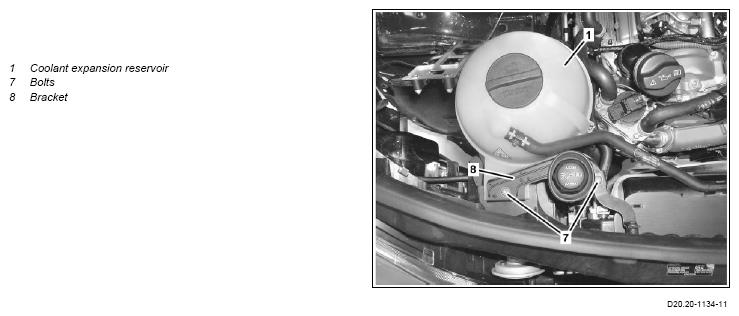

3	Remove bracket (8) with AdBlue® filler neck from coolant expansion reservoir (1).
4	Remove coolant hoses (2, 3) at coolant expansion reservoir (1).
5	Remove coolant hose (4) at coolant expansion reservoir (1).	Engine 651
6	Remove screw (5).	Engine 651
7	Lift coolant expansion reservoir (1) and disconnect electrical connector (6) at coolant level indicator switch (S41).
8	Remove coolant expansion reservoir (1).
9	Turn coolant level indicator switch (S41) in direction of arrow and remove.	When replacing coolant expansion reservoir (1).
10	Install in the reverse order.
	Check
11	Check engine cooling system for leak tightness.		AR20.00-S-1010S

Fig 1: Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA
