Notes On Coolant Level - Ah20.00-P-1142-01CW
Model 906
Shown on model 166, 204, 207, 212, 218, 290.688, 292

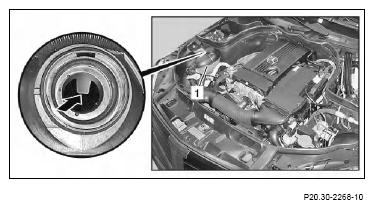

When the engine is cold, the coolant level must be level with the marking (arrow) in the coolant expansion reservoir (1).
When coolant is warm: Approx. 1 cm above this mark (arrow).
Shown on model 117, 156, 167, 176, 177, 197, 213, 223, 238, 242, 246, 257, 290.65/66, 290.689

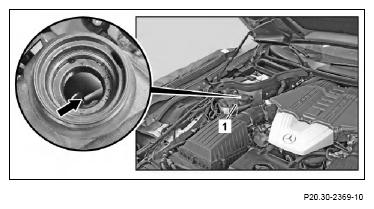

When the engine is cold, the coolant level must reach up to the upper edge of the web (arrow) in the coolant expansion reservoir (1).
When coolant is warm: Approx. 1 cm above the upper edge of the web (arrow).
Shown on model 168 with engine 668
When the engine is cold, the engine coolant level must reach up to the marking "MIN" at the coolant expansion reservoir.
The marking on the coolant expansion reservoir is stamped in as of approx. 6.99.
Shown on model 203 with engine 112
The coolant level on a cold engine must reach up to the marking (arrow) on the coolant expansion reservoir.
When coolant is warm: coolant level approx. 1 cm over this mark.
Shown on model 447 with engine 780.701, main circuit

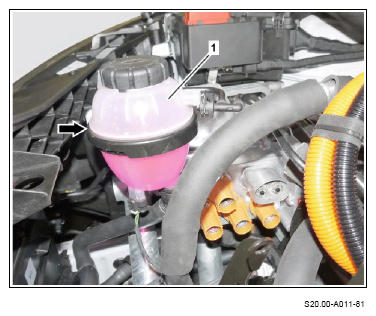

When the coolant is cold, the coolant level must reach up to the marking (arrow) on the coolant expansion reservoir (1).
When the electric motor is at operating temperature, the coolant level must be slightly above the marking (arrow) on the coolant expansion reservoir (1).
Shown on model 447 with engine 780.701, auxiliary circuit

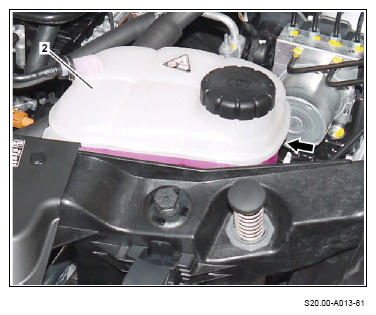

When the coolant is cold, the coolant level must reach up to the marking (arrow) on the coolant expansion reservoir (2).
When the coolant is at operating temperature, the coolant level must be slightly above the marking (arrow) on the coolant expansion reservoir (2).
